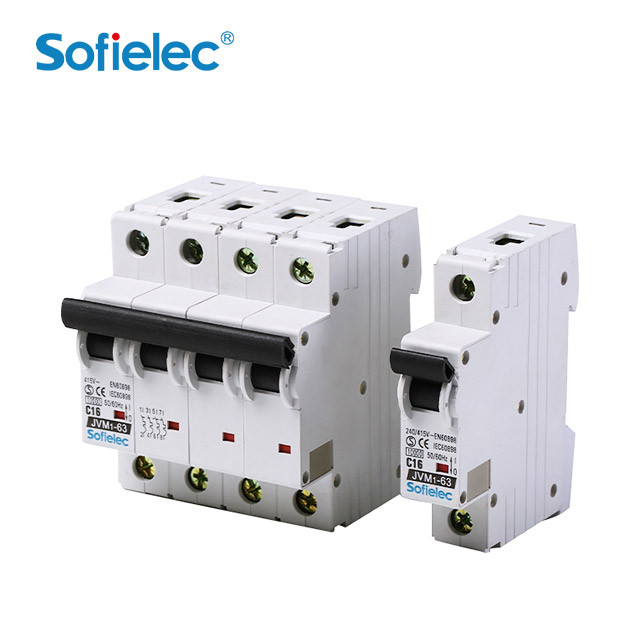

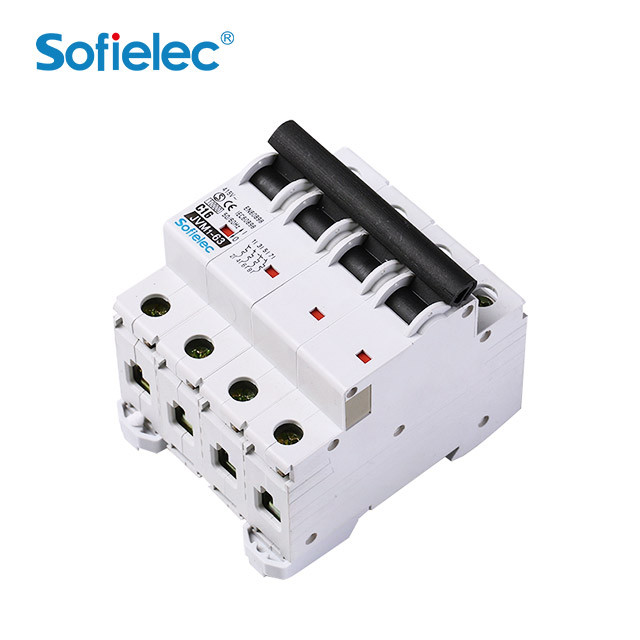

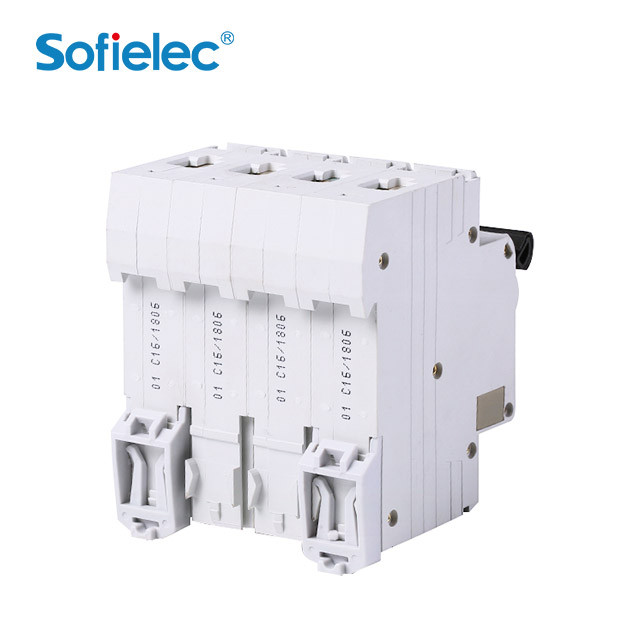

Sofielec 6-10kA MCB JVM1-63 4P 6-63A, IEC CB CE and RoHS certificate

Construction and Feature

Protection against both overload and short circuit

High short-circuit capacity

Contact position indication

Applicable to terminal and pin/fork type busbar connection

Easy mounting onto 35mm DIN rail

Technical Data

● PoleNo.: 1, 1P+N，2,3,3P+N，4

● Rated voltage: AC 230/400V

● Rated current (A): 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63

● Tripping curve: B, C, D

● High short-circuit breaking capacity (lcn):10kA

● Rated frequency: 50/60Hz

● Energy limiting class: 3

● Rated impulse withstand voltage: 6.2kV

● Electromechanical endurance: 10000

● Contact position indication

● Connection terminal:

● Screw terminal

● Pillar terminal with clamp

● Connection capacity: Rigid conductor up to 25mm2

● Fastening torque: 2.0Nm

● Installation:

● On symmetrical DIN rail 35.5 mm

● Panel mounting

● Terminal Connection Height: 21mm

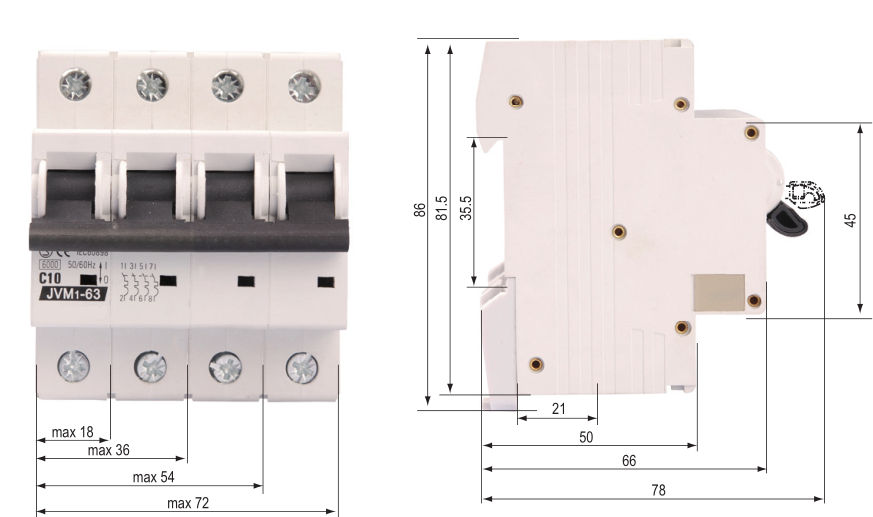

Overall & Installation Dimensions

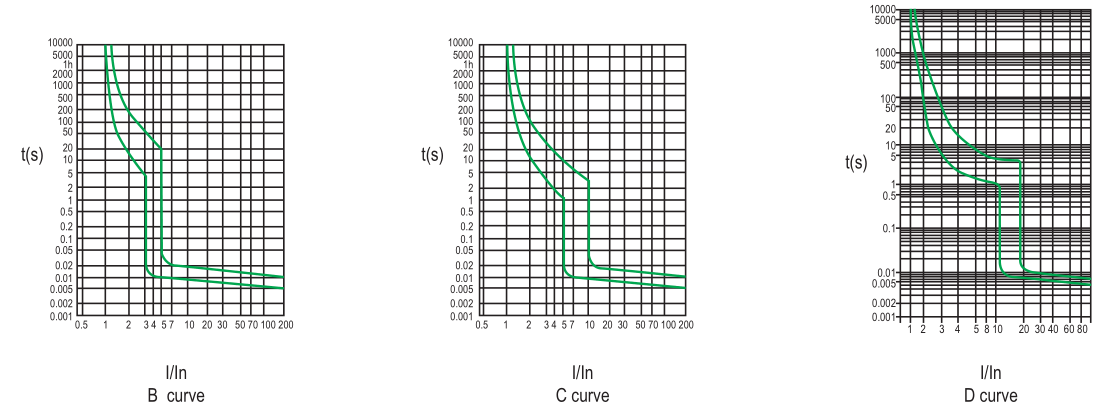

Characteristic Curve
