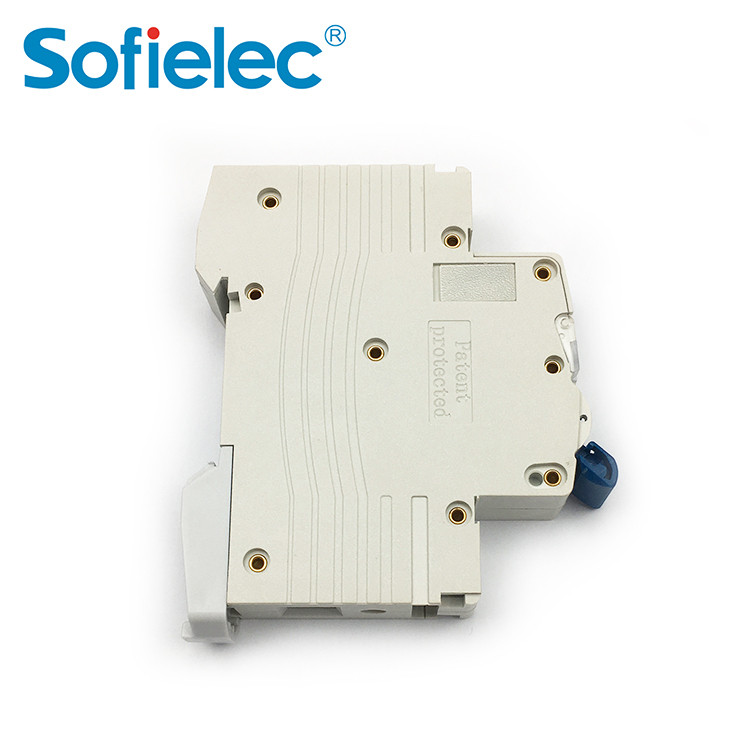

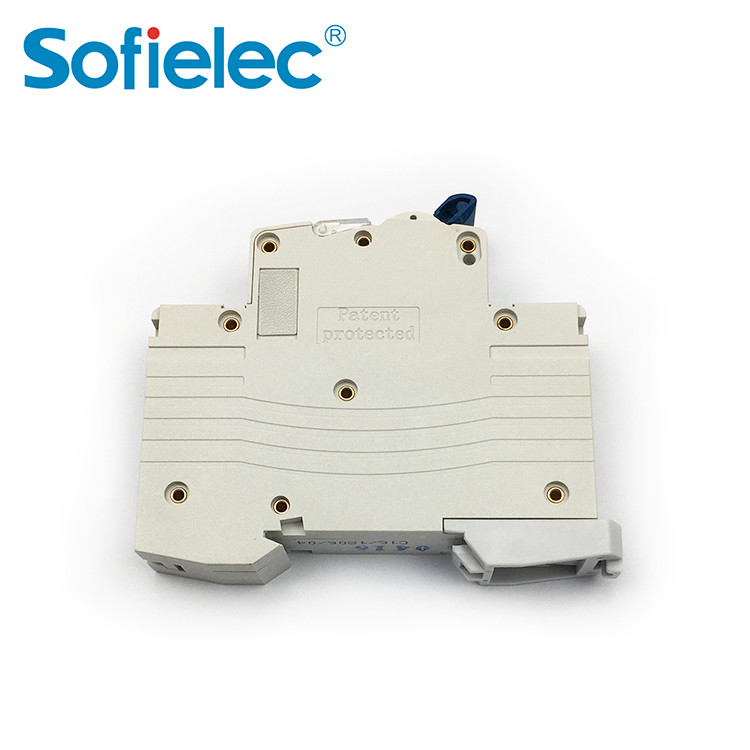

Construction and Feature
The state-of-art design

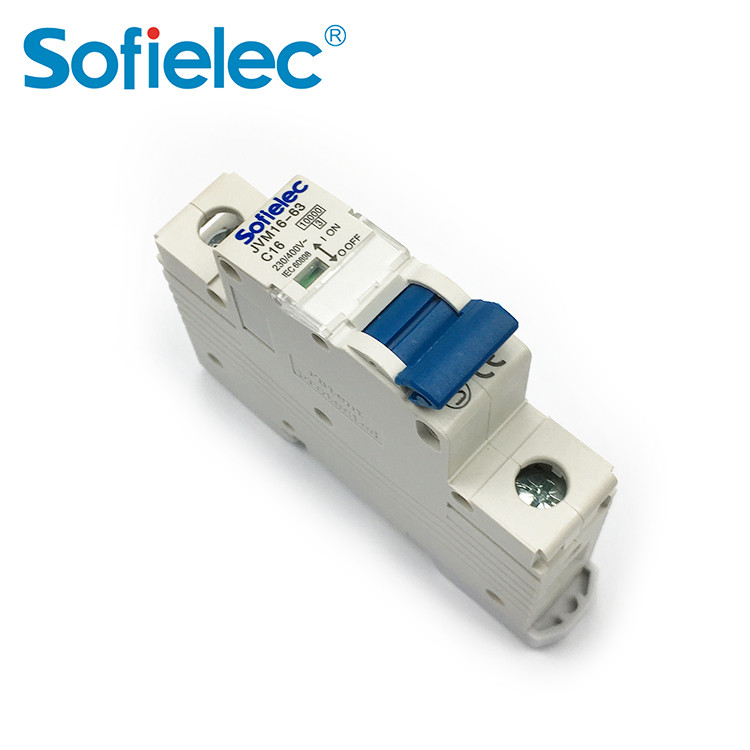

Elegant appearance; cover and handle in arc shape make comfortable operation.

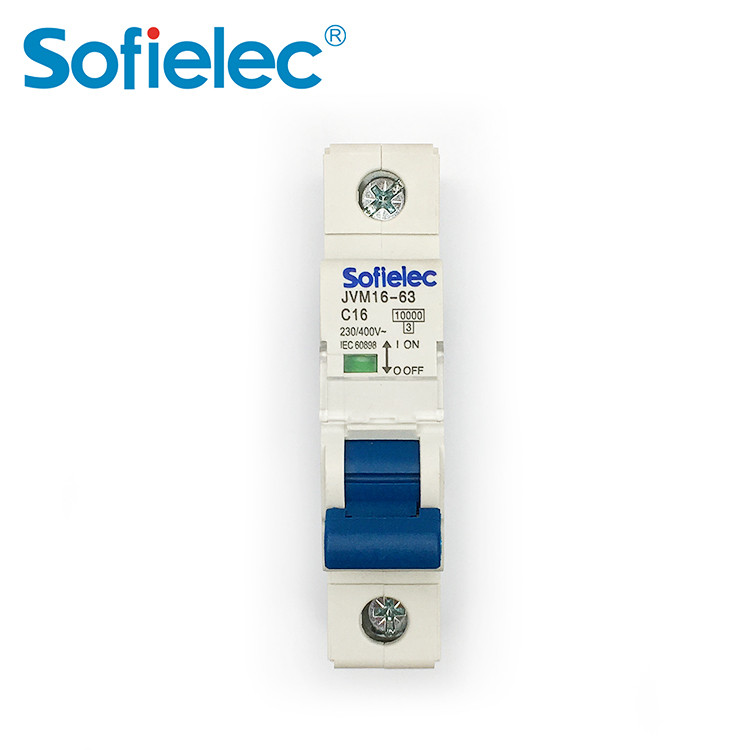

Contact position indicating window
Transparent cover designed to carry label.
Handle central-staying function for circuit fault indicating
In case of overload, to protected circuit, MCB handle trips and stays at central
position, which enables a quick solution to the faulty line. The handle cannot stay in
such position when operatedmanually.
High short-circuit capacity
High short-circuit capacity 10KA for whole range and 15kA capacity for current rating
up to 40A thanks to the powerful electric arc extinguishing system.
Long electrical endurance up to 6000 cycles thanks to quick making mechanism.
Handle padlock device
MCB handle can be locked either at “ON” position or at“OFF” position to
prevent unwanted operation of the product.
Screw terminal lock device
The lock device prevents unwanted or casual dismounting of connected terminals.

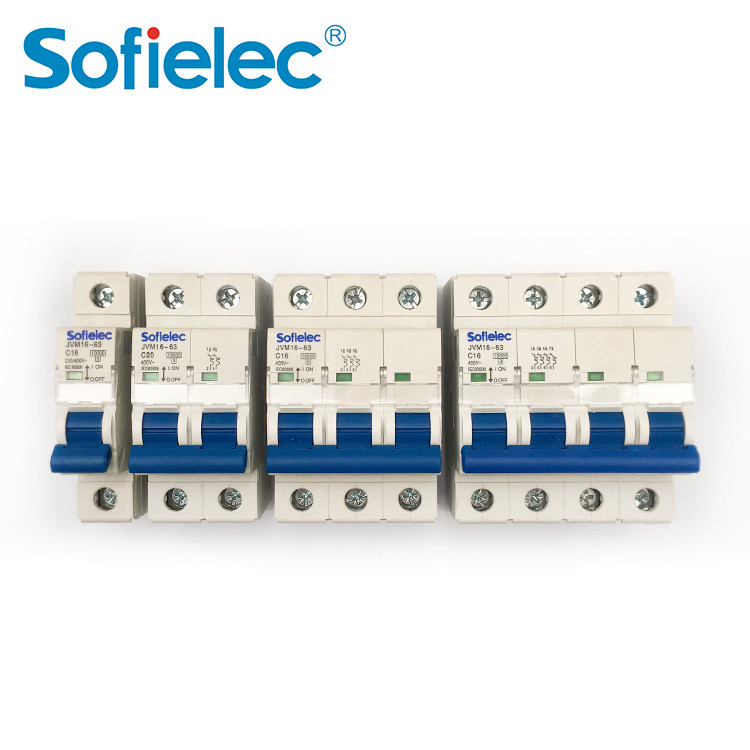

l Pole No.: 1, 1P+N, 2, 3, 3P+N, 4
l Rated voltage: AC 230/400V
l Rated current (A):
l 1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63

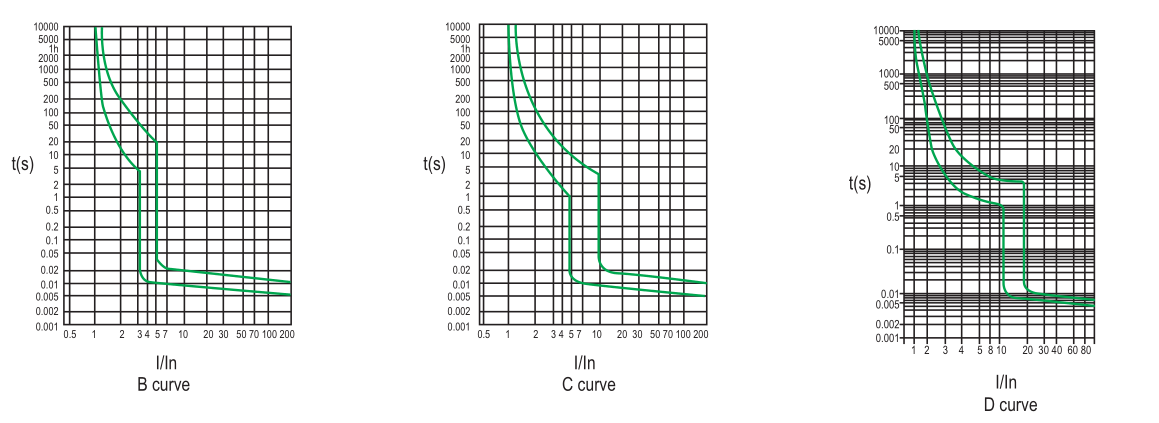

l Tripping curve: B, C, D
l High short-circuit breaking capacity (Icn): 10kA
l Rated service short-circuit breaking capacity(Ics): 7.5kA
l Rated frequency: 50/60Hz
l Energy limiting class: 3
l Rated impulse withstand voltage: 6.2kV
l Electro-mechanical endurance: 20000
l Contact position indication
l Connection terminal:Screw terminal, Pillar terminal with clamp
l Connection capacity: Rigid conductor up to 25mm²
l Terminal Connection Height: 19mm
l Fastening torque: 2.0Nm
l Installation: On symmetrical DIN rail, 35mm, Panel mounting
F3 Auxiliary contact
S3 Shunt tripper
SD3 Alarm Switch

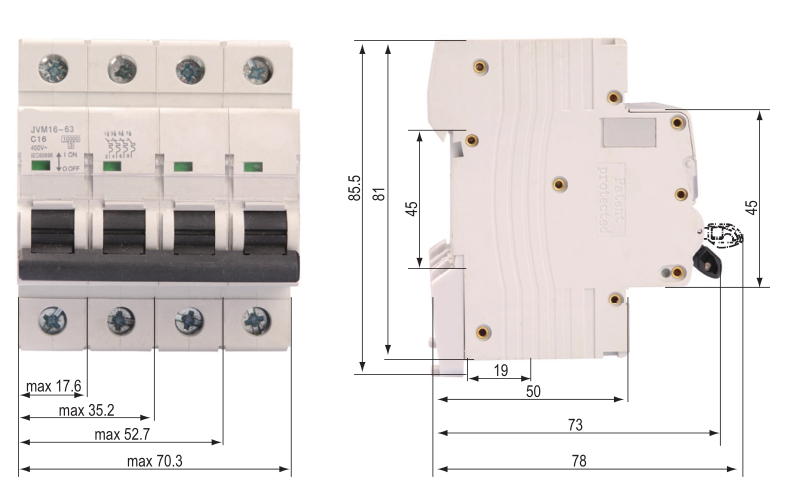

Overall & Installation Dimensions
