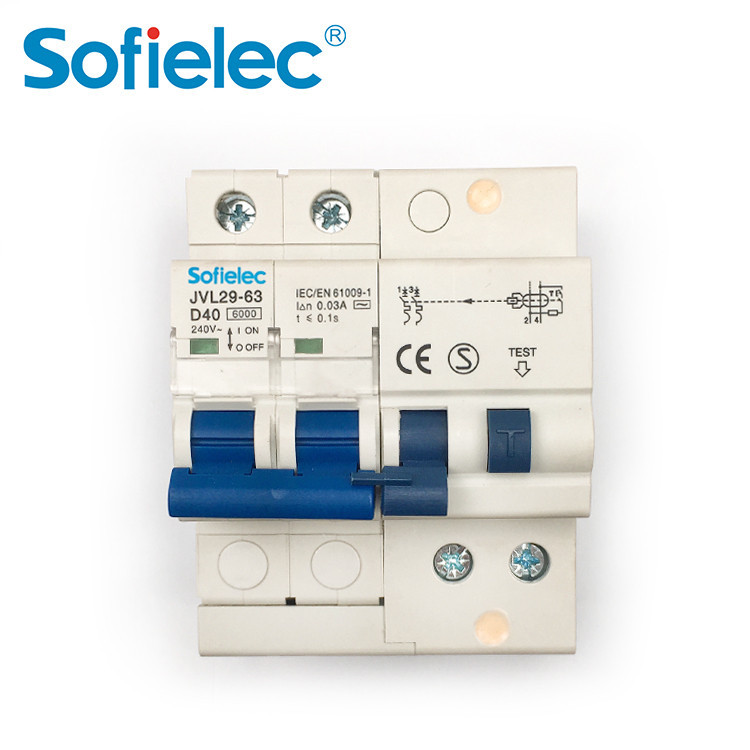

JVL29-63 is applicable to residual operating current with rated voltage 230V/400V,frequency 50/60HZ and rated current up to 63A.
JVL29-63 is applicable to residual operating current with rated voltage
230V/400V,frequency 50/60HZ and rated current up to 63A. It is used to perform the
human electricity shock protection as well as over current protection and short circuit
protection for line equipment in building or similar locations, it also can provide the
protection against the fire danger caused by the fault current that is resulted from the
electric equipment damage.
The circuit breaker is applicable for kinds of fields such as the industry, commerce, high rise building, civil building, etc.

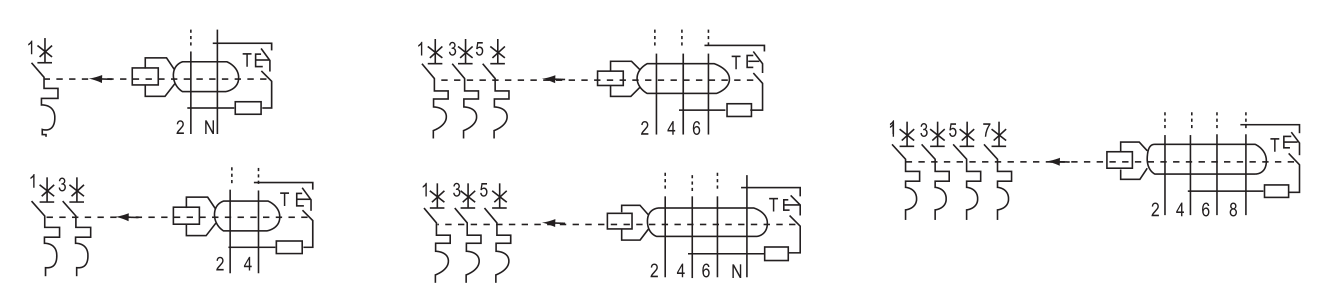

Pole No.: 1P+N, 2P, 3P, 3P+N, 4P
Residual current characteristics: AC, A
Rated current (A): 1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63

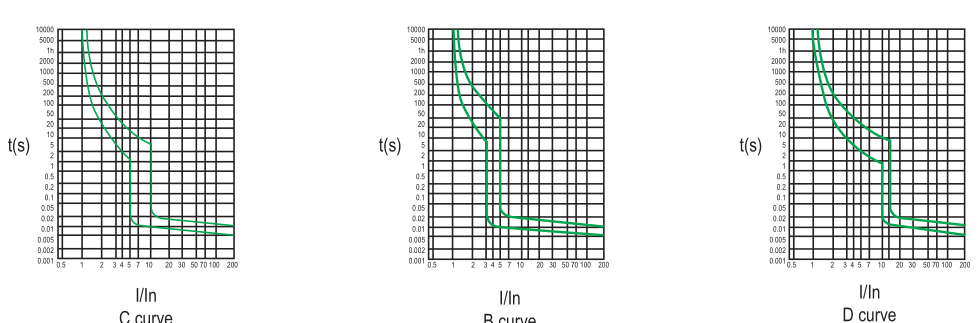

Tripping curve: B, C, D
Rated short-circuit capacity: 6kA
Rated voltage: 230/400V AC
Rated frequency: 50/60Hz
Rated residual operating current(A): 0.03, 0.1, 0.3
Tripping duration: instantaneous≤0.1s
Electro-mechanical endurance: 4000 cycles
Terminal Connection Height: H1=19mm, H2=23mm

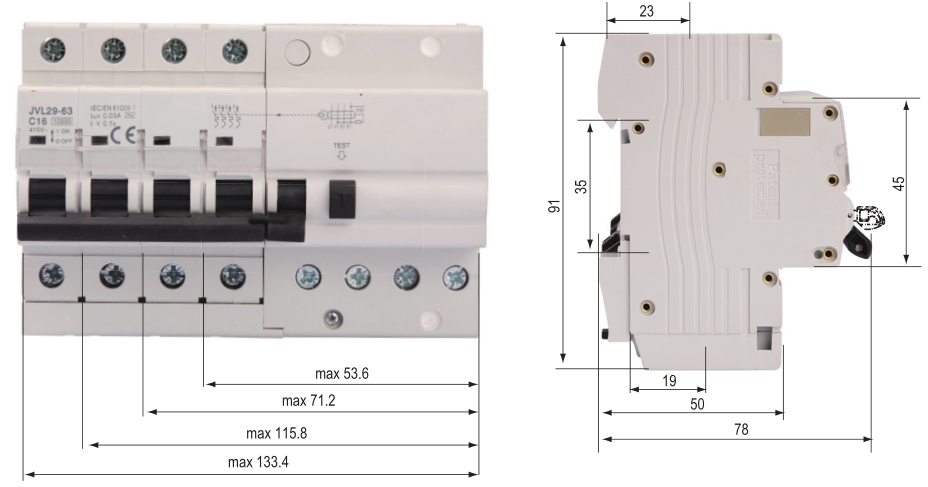

Overall & Installation Dimensions
