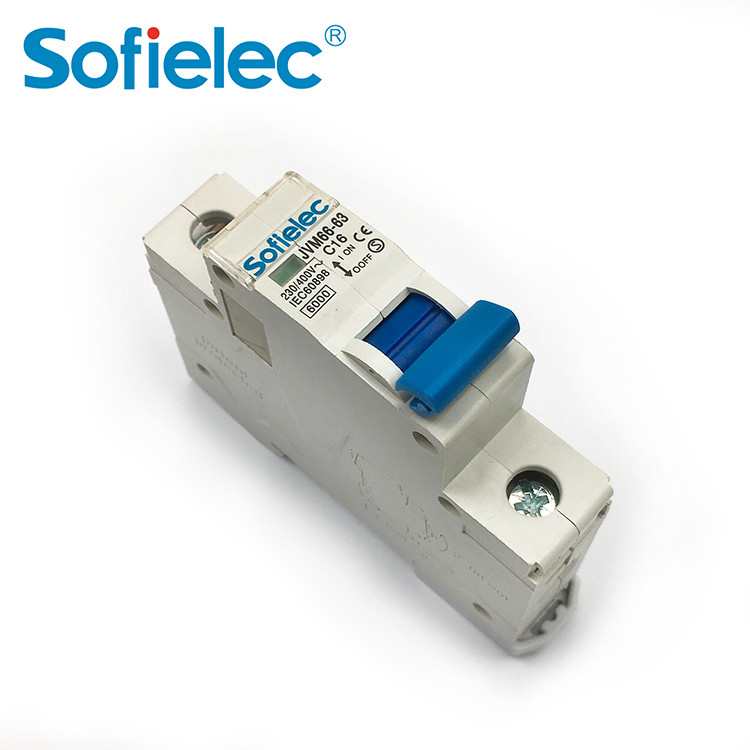

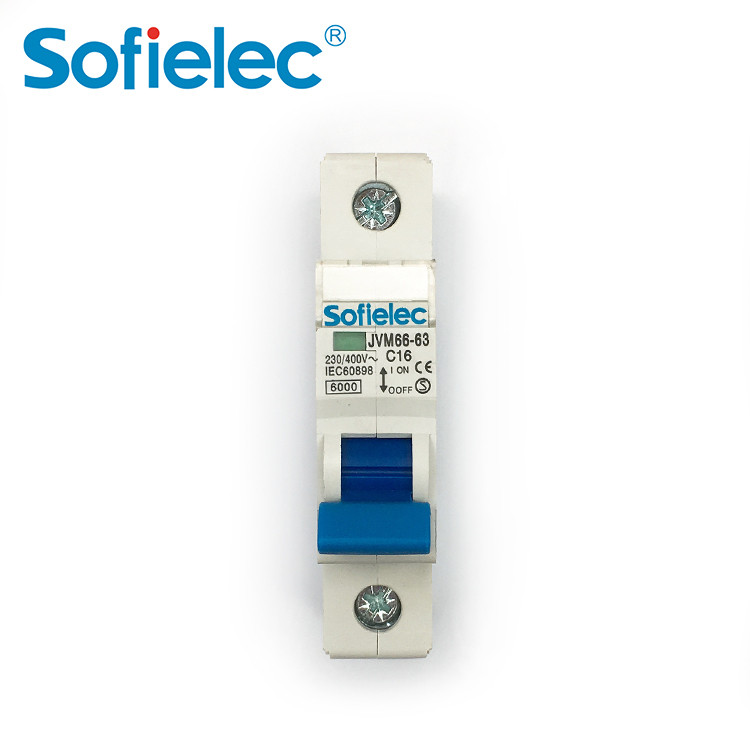

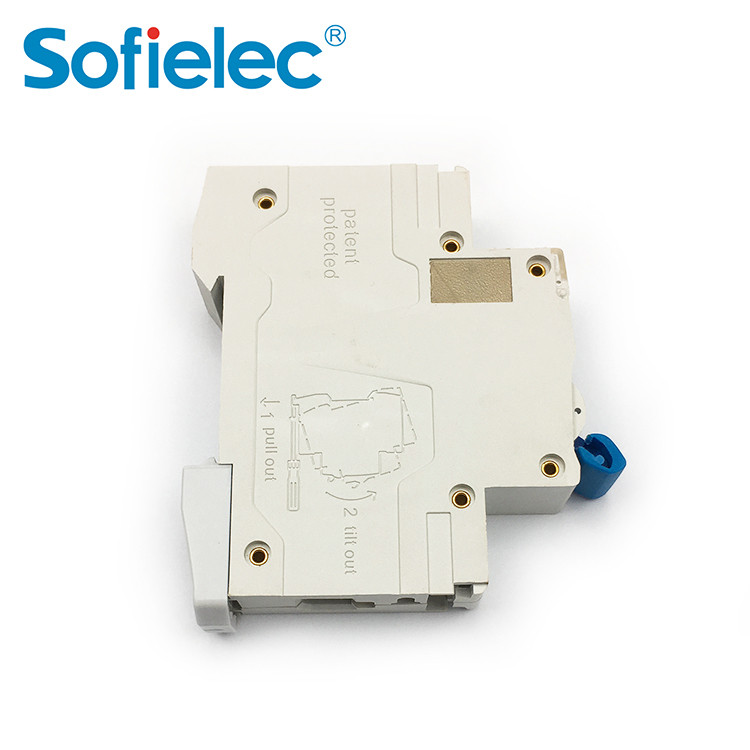

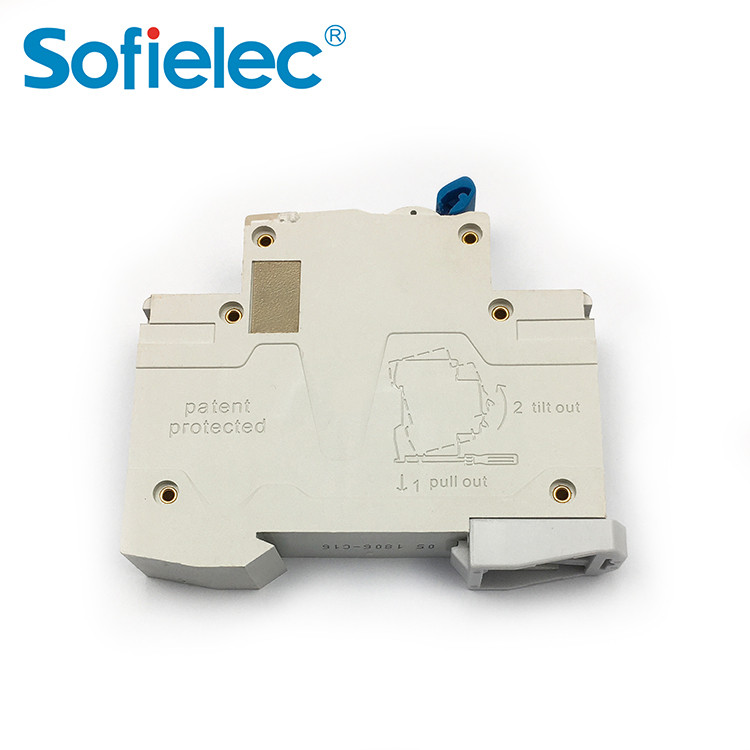

Sofielec new design MCB 6kA,JVM66-63,1P 6A to 32A stock available, for New Zealand, worldwide market, SEMKO,CB,CE certificate.

Construction and Feature

Fine and unique appearance

Short-circuit and overload dual-protection performance

High-breaking capacity (10KA) that is leading among the world similar products

Unique label, transparent window

Convenient and reliable installation mode

Technical Data

Model:JVM66-63

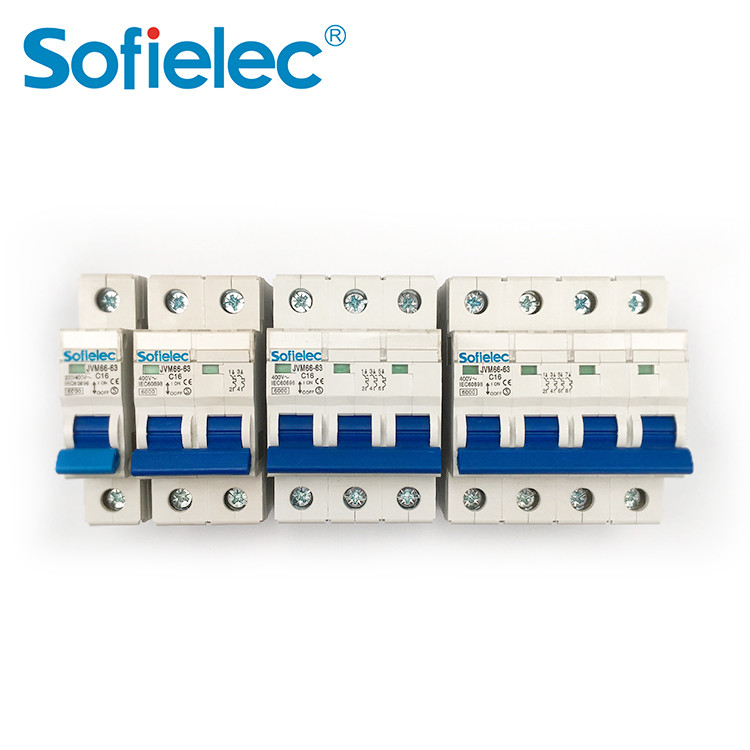

Pole No.:1P, 2P, 3P, 4P

Rated current:1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A

Rated working voltage:24/415V

Rated frequency: 50/60Hz

Rated frequency (miniature circuit breaker):400V

Curve (miniature circuit breaker):B, C, D

High short-circuit breaking capacity:6000A(6KA)

Instantaneous tripping current:5In (B type) 10In (C type) 20In (D type)

Instantaneous non-tripping current:3In (B type) 5In (C type) 10In (D type)

Mechanical life:4000 times

Degree of protection:IP20

Wiring mode:Front wiring

Connecting conductor:Up to and including 16m 2

Wiring height:21.5mm

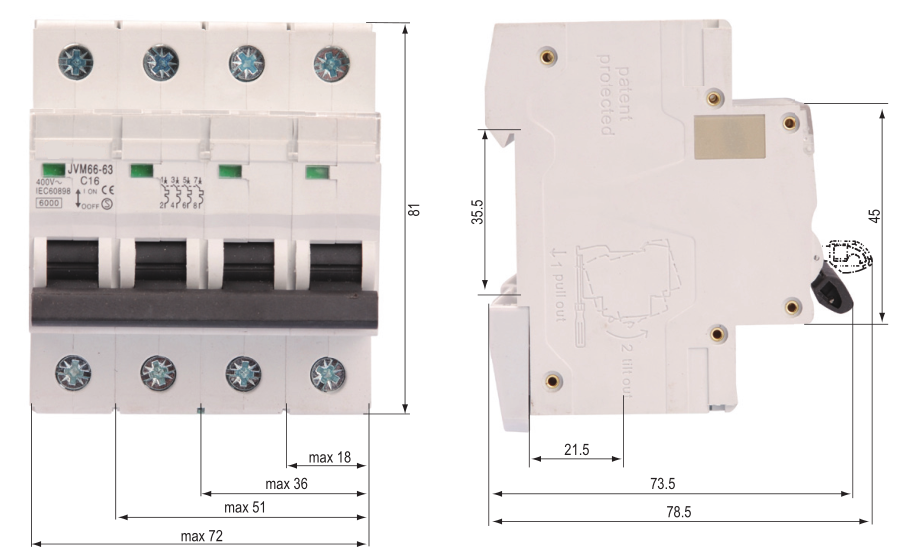

Overall & Installation Dimensions

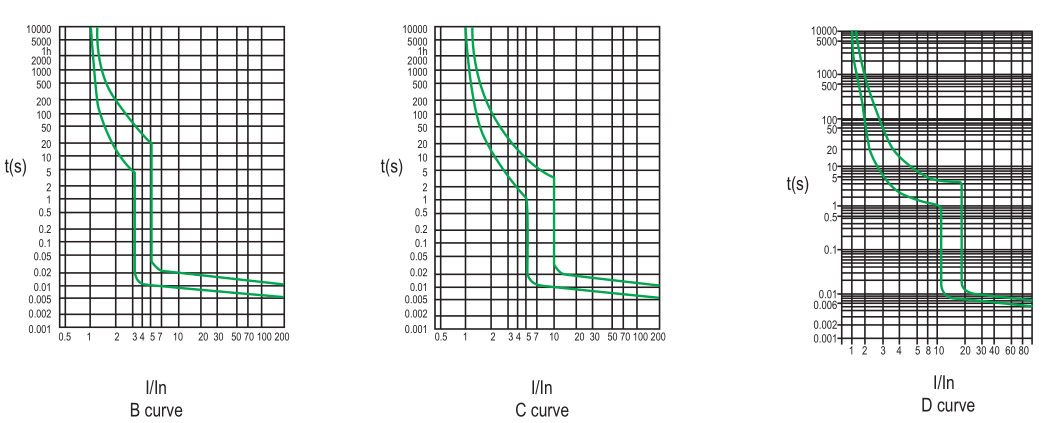

Characteristic Curve

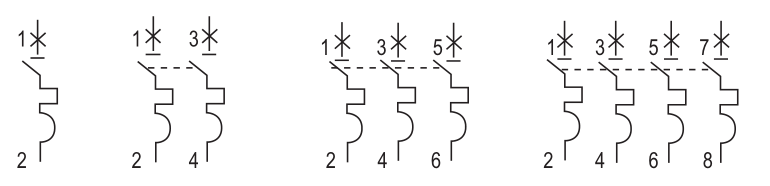

Wiring Diagram
