Sofielec ZHRV2-S Used in air conditioning units, elevator machine room, pumps,fans and other motor control applications

Applications

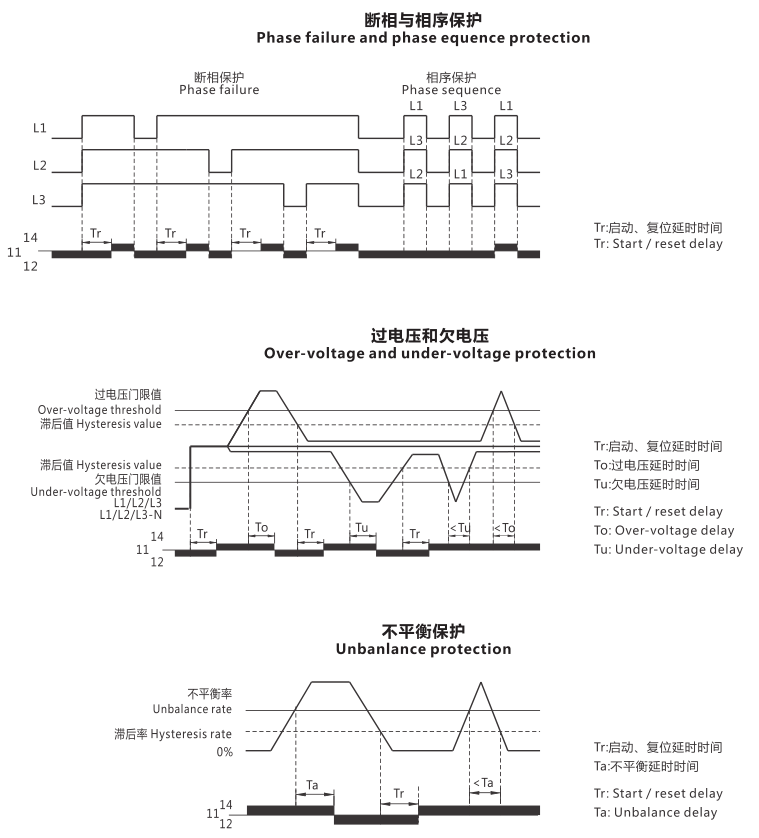

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment

Features

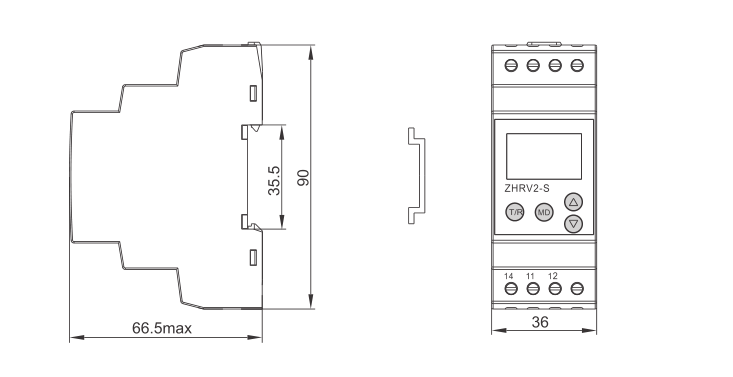

Built-in microprocessors, true RMS voltage measurement, voltage measurement accuracy 5 1%. Measuring frequency 45Hz~65Hz, button setting, LCD display voltage and fault information, protection can be turned on or off. Check phase voltage value by button, with N-phase phase failureprotection. DIN rail mounting

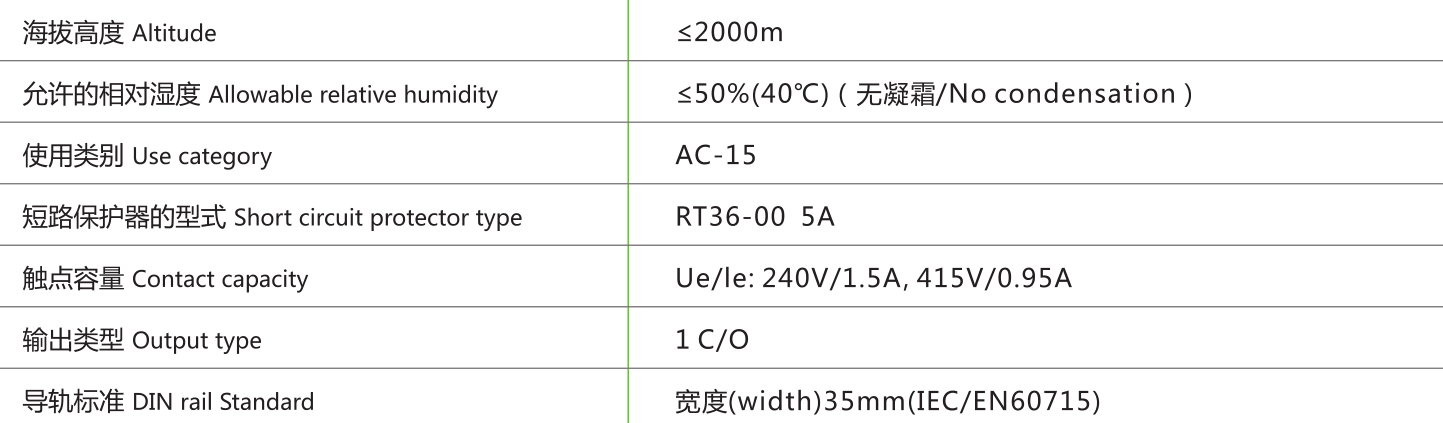

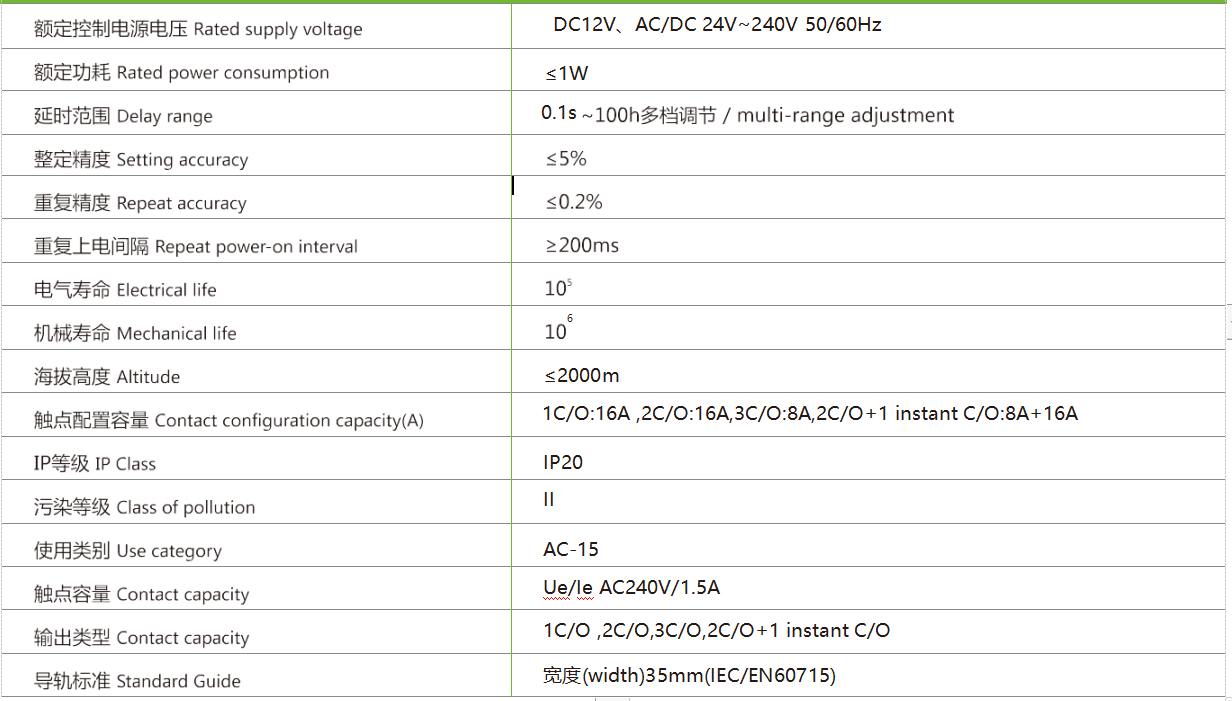

Technical Parameters
