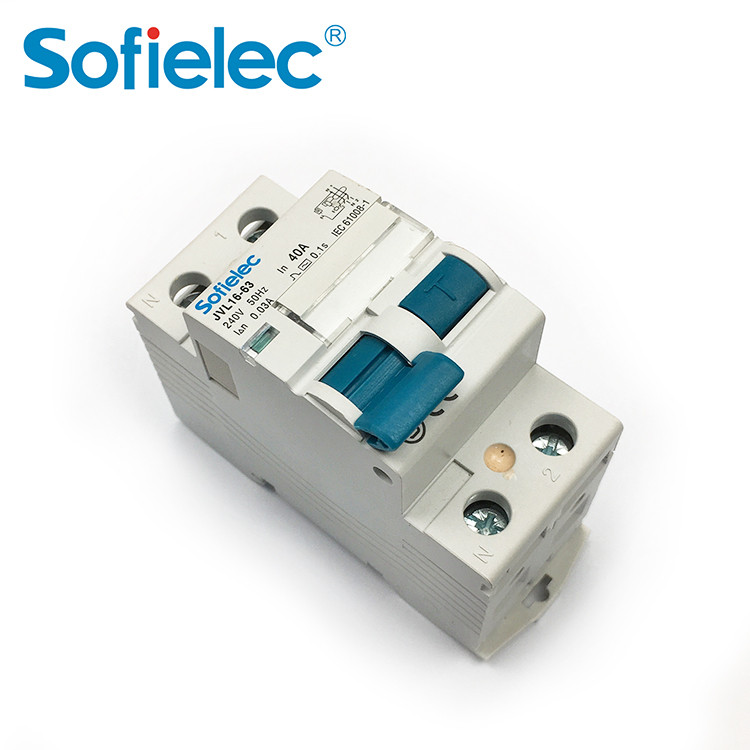

2P magnetic RCCB 10kA, protection and control of circuit against overload and short circuit

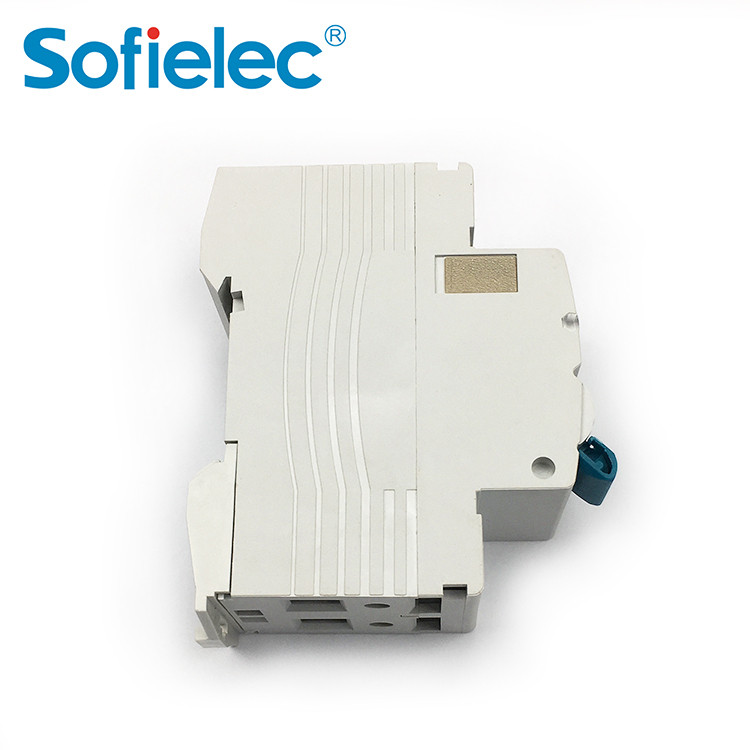

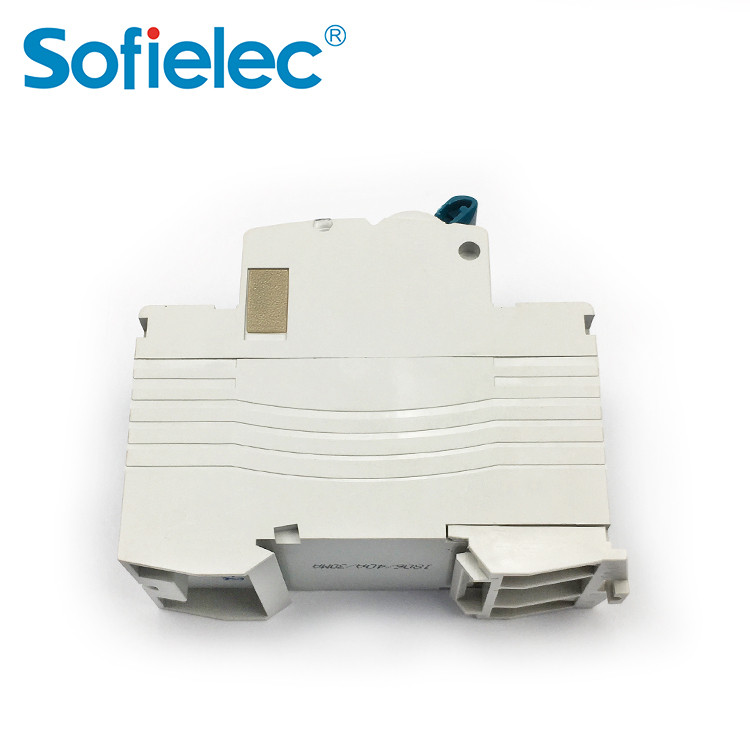

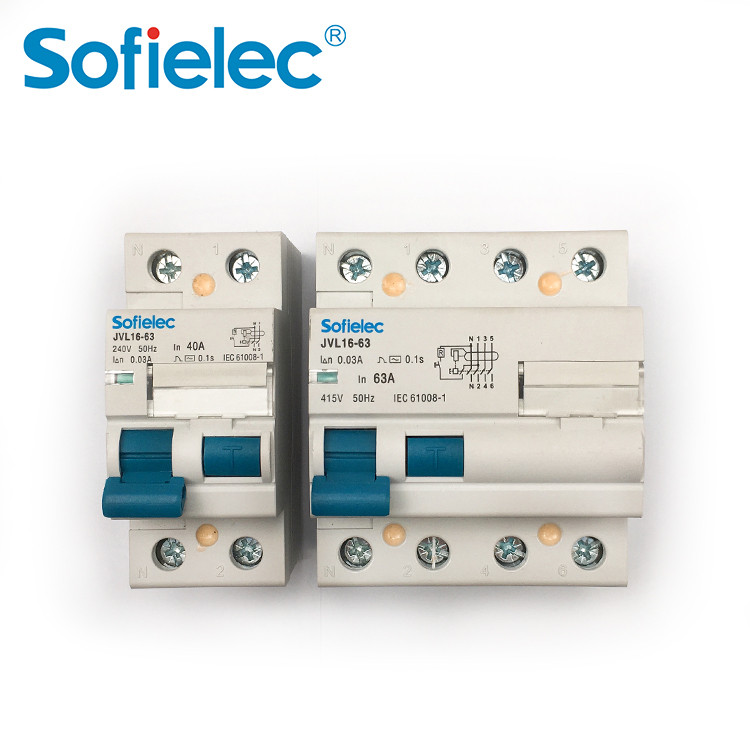

Construction and Feature

Elegant appearance; cover and handle in arc shape make comfortable operation. Contact position indicating window

Transparent cover designed to carry label.

In case of overload to protected circuit, RCBO handle trips and stays at central position, which enables a quick solution to the faulty line. The handle cannot stay in such position when operated manually.

RCBO handle can be locked either at “ON” position or at“OFF” position to prevent unwanted operation of the product.

Provides protection against earth fault/leakage current, short-circuit and overload

High short-circuit capacity

Provides complementary protection against direct contact by human body.

Effectively protects electric equipment against insulating failure

Contact position indication

Provides protection against over-voltage

Technical Data

● Mode: electro-magnetic type

● Residual current characteristics: A, AC,G,S

● Pole No.: 2, 4

● Rated making and breaking capacity: 500A(ln=25A,40A) or 630A(ln=63A)

● Rated current(A): 25, 40, 63

● Rated voltage: AC 230(240)/400(415)

● Rated frequency: 50/60Hz

● Rated residual operating current IAn(A):0.03, 0.1, 0.3, 0.5

● Rated residual non operating current lAno: 0.5IAn

● Rated conditional short-circuit current Inc: 10kA

● Rated conditional residual short-circuit Current I Ac: 10kA

● Residual tripping current range: 0_5IAnH An

● Terminal Connection Height: 19mm

● Electro-mechanical endurance: 4000 cycles

● Connection capacity: Rigid conductor 25mm2

● Connection terminal:Screw terminal

● Pillar terminal with clamp

● Fastening torque: 2.0Nm

● Installation: On symmetrical DIN rail 35mm Panel mounting

● Protection class:IP20

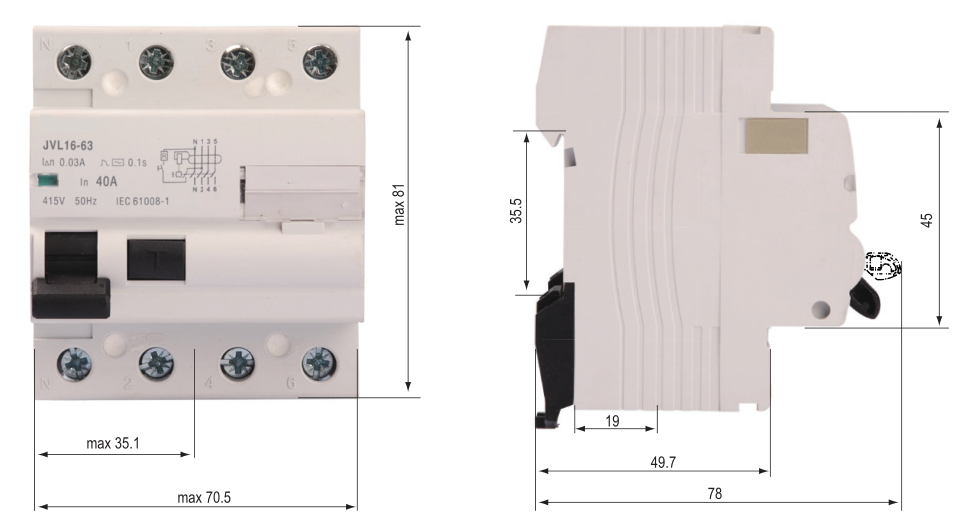

Overall & Installation Dimensions

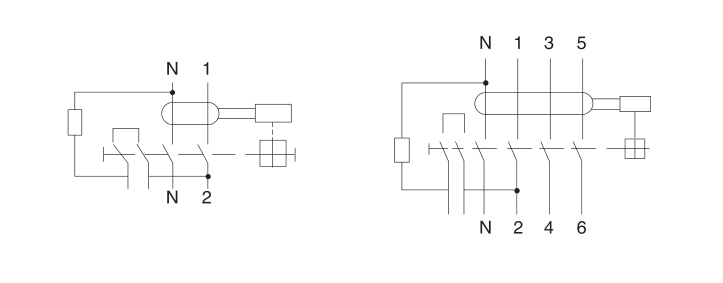

Wiring Diagram
