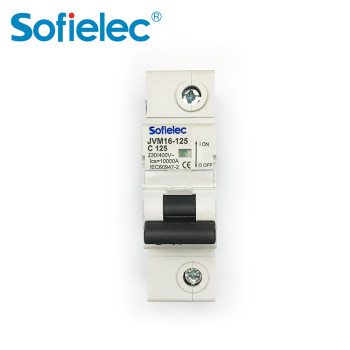

10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker

10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker

10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker
10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker10kA JVM16-125 China factory make 3 phase 100A miniature circuit breaker
CategoriesSuperior 10kA 16 Series Circuit Breaker
Pole No1, 1P+N, 2, 3, 3P+N, 4
Rated voltageAC 230/400V
Rated current(A)20, 25, 32, 40, 50, 63, 80, 100, 125.
Tripping curveC, D
Rated impulse withstand voltage6kV
Rated frequency50/60Hz
Electro-mechanical enduranceIn≤100=1001000;ln125=8000
ultimate short-circuit breaking capacity10kA
service short-circuit breaking capacity(Ics)7 .5kA
Connection terminalPillar terminal with clamp
Update TimeMar 19,2024
Detail Information
Technical Data

Pole No.: 1, 1P+N, 2, 3, 3P+N, 4

Rated voltage: AC 230/400V

Rated current (A)::20, 25, 32, 40, 50, 63, 80, 100, 125

Tripping curve: C, D

Ultimate short-circuit breaking capacity (leu): 10kA

Service short-circuit breaking capacity(lcs):7.5kA

Rated impulse withstand voltage:6kV

Electro-mechanical endurance: Insl00=10000;ln125=8000

Connection terminal: Pillar terminal with clamp

Gonnection capacity:Flexible conductor 35mm2 Rigid conductor 50mm²

Installation:

On symmetrical DIN rail 35mm Panel mounting

Terminal Connection Height: 20mm

Construction and Feature

High short-short capacity 10KA.

Designed to protect circuit carrying big current up to 125A

Contact position indication.

Used as main switch in household and similar installation

Overall & Installation Dimensions
Characteristic Curve
