JVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A type

JVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A type

JVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A type
JVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A typeJVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A typeJVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A typeJVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A typeJVL29-63 Italy Hot Sale residual circuit breaker 1P+N RCBO A type
CategoriesSuperior 10kA 16 Series Circuit Breaker
Pole No1P+N, 2P, 3P, 3P+N,4P
Residual current characeristsisAc, A
Rated .curret(A)1,2,3,4,5,6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curveB,C,D
Rated short-circuit capacity6kA
Rated voltage230/400V AC
Rated frequency50/60Hz
Rated residual operating current(A)0.03, 0.1, 0.3
Tripping durationinstantaneous≤0.1s
Electro-mechanical endurance4000 cycles
Update TimeMar 19,2024
Detail Information

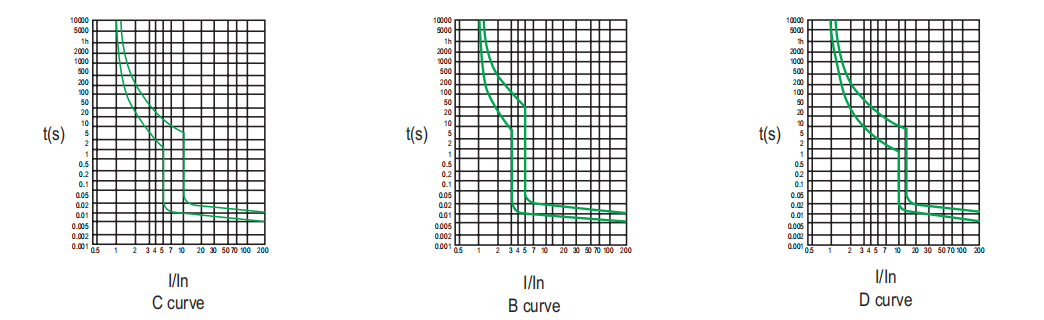

Characteristic Curve

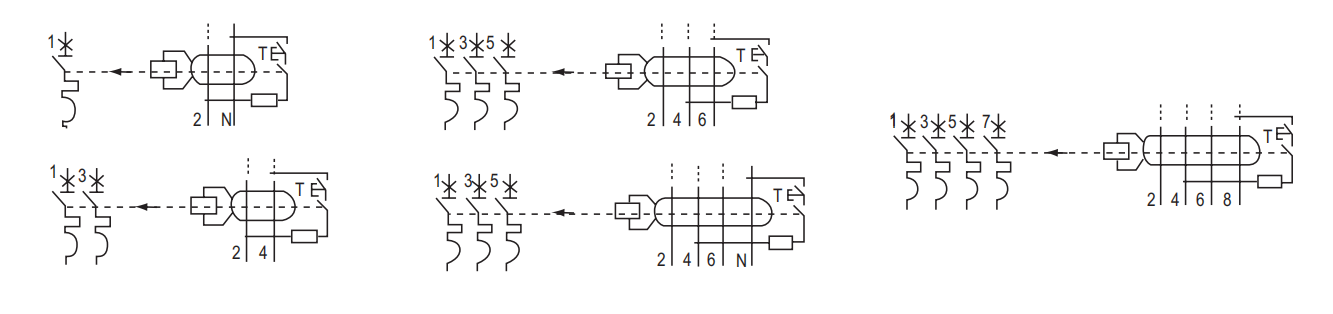

Wiring Diagram

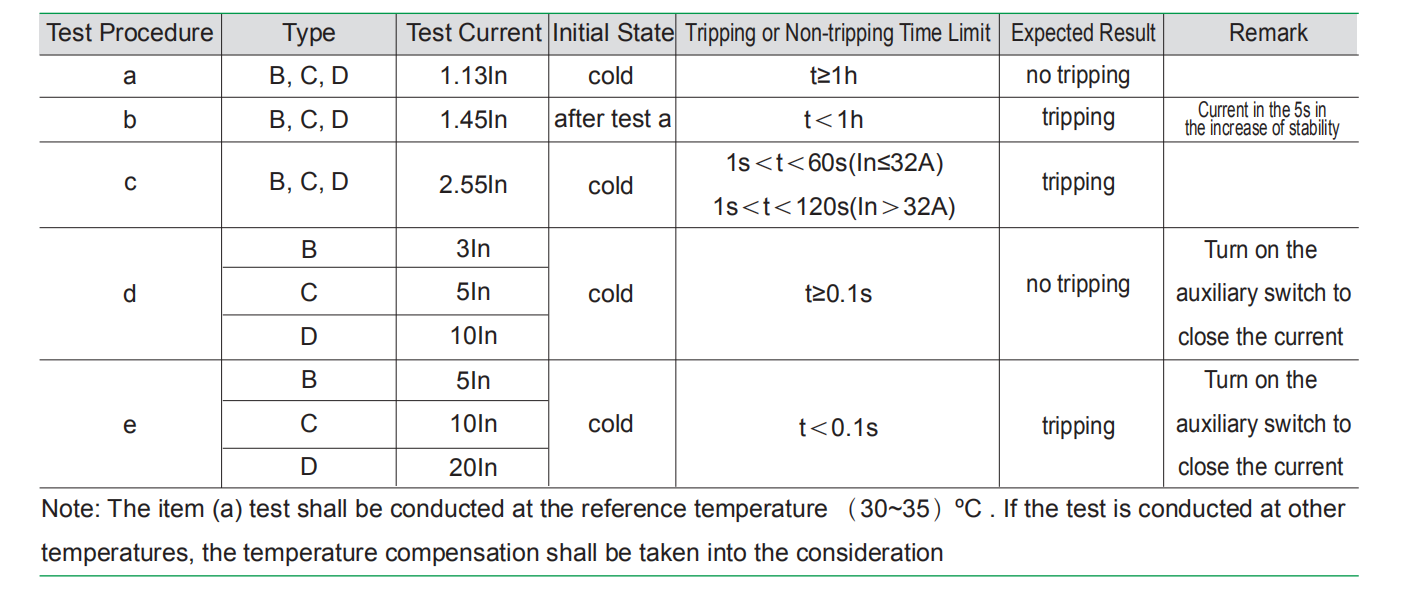

Overload Current Protection Characteristics

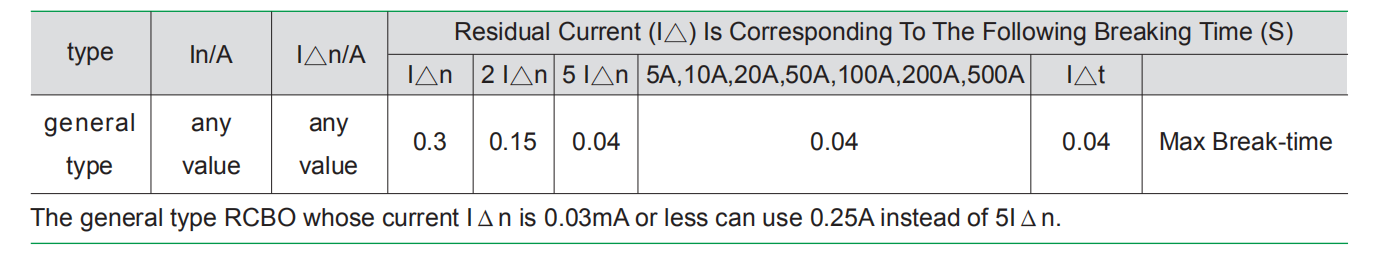

Residual Current Action Breaking Time
