6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake

6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake

6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake
6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake6kA JVM66-63 Europe hot sale 20 amp rccb earth leakage circuit breake
CategoriesEconomic 4.5KA, 6kA Regular Series Circuit Breaker
ModelJVM66-63
Pole No1P, 2P, 3P, 4P
Rated current1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50,63A
Rated workingvoltage24/415V
Rated frequency50/60Hz
Rated frequency (miniature circuit breaker)400V
Curve (miniature circuit breaker)B,C,D
High short-circuit breaking capacity6000A(6KA)
Degree of protectionIP20
Wiring modeFront wiring
Update TimeMar 28,2024
Detail Information
Technical Data

Pole No.:1P, 2P, 3P, 4P

Rated current:1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63A

Rated working voltage:24/415V

Rated frequency: 50/60Hz

Rated frequency (miniature circuit breaker):400V

Curve (miniature circuit breaker):B, C, D

High short-circuit breaking capacity:6000A(6KA)

Instantaneous tripping current:5In (B type) 10In (C type) 20In (D type)

Instantaneous non-tripping current:3In (B type) 5In (C type) 10In (D type)

Mechanical life:4000 times

Degree of protection:IP20

Wiring mode:Front wiring

Connecting conductor:Up to and including 16m ²

Construction and Feature


Fine and unique appearance

Short-circuit and overload dual-protection performance

High-breaking capacity (10KA) that is leading among the world similar products

Unique label, transparent window

Convenient and reliable installation mode

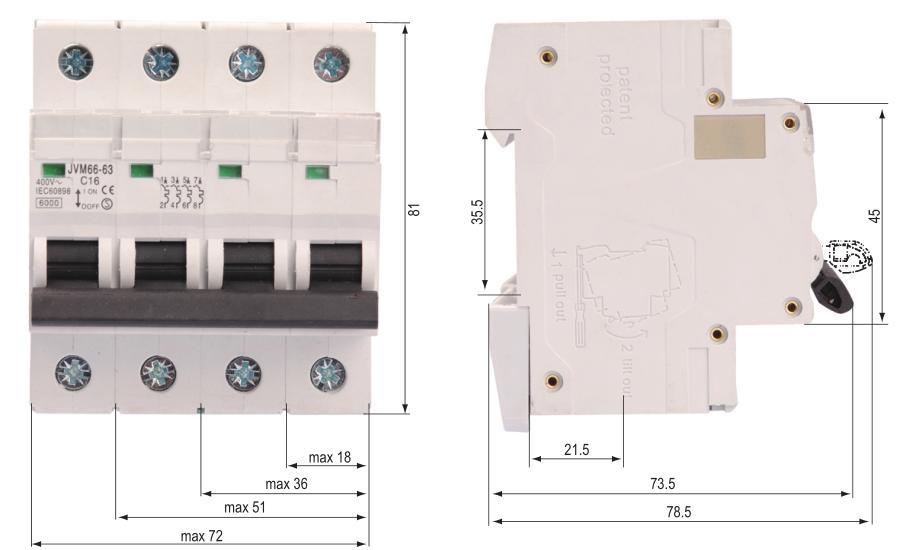

Overall & Installation Dimensions

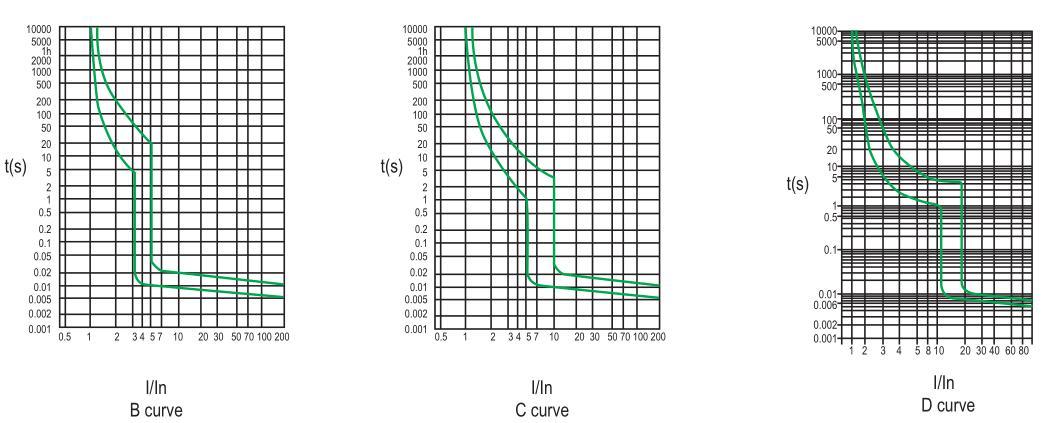

Characteristic Curve

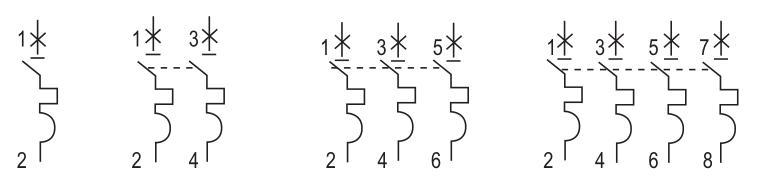

Wiring Diagram
