10kA JVL11 UK Mini hot sale 1pn 30ma 16amp rcbo circuit breaker
10kA JVL11 UK Mini hot sale 1pn 30ma 16amp rcbo circuit breaker
| Categories | Superior 10kA 16 Series Circuit Breaker |
|---|---|
| Model | JVL11-63 |
| Type | electronic type |
| Residual current characteristics | AC |
| Pole No | 1P+N |
| Tripping curve | B, C |
| Rated short-circuit capacity | 10kA |
| Rated current (A) | 6,10,16,20,25,32,40,50,63 |
| Rated voltage | 240V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current(mA) | 30, 100, 300 |
| Tripping duration | instantaneous < 0.1s |
| Update Time | March 30,2023 |
|
l Type: Electronic type |
|
l Residual current characteristics: AC |
|
l Pole No.: 1P+N, |
|
l Tripping curve: B, C, |
|
l Rated short-circuit capacity: 10kA |
|
l Rated current (A): 6,10,16,20,25,32,40,50,63 |
|
l Rated voltage: 240V AC |
l Rated frequency: 50/60Hz |
l Rated residual operating current(mA): 30, 100, 300 |
l Tripping duration: instantaneous≤0.1s |
l Electro-mechanical endurance: 4000 cycles |
|
l Connection terminal: pillar terminal with clamp |

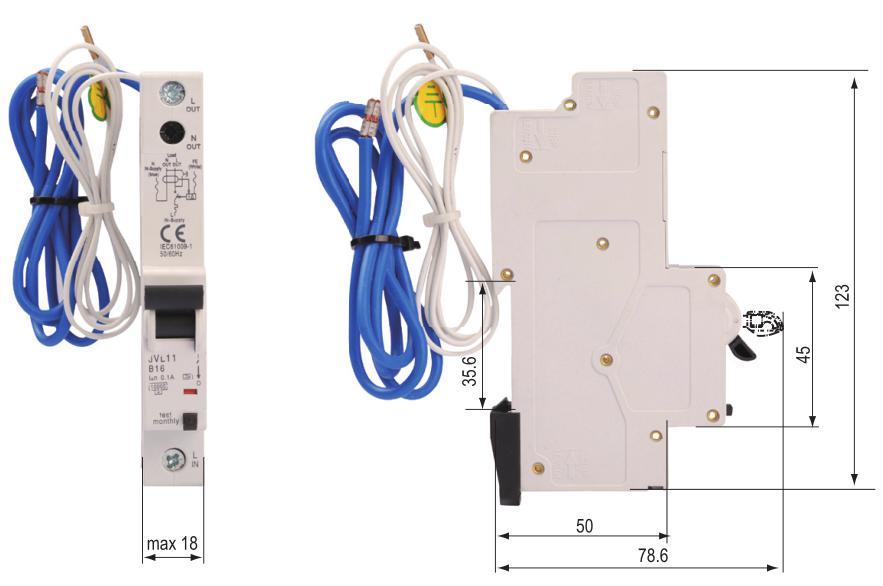

l Terminal Connection Height: H1=21.5mm H2=28.4mm H3=12.5mm |
|
l Connection capacity:Rigid conductor 25mm² |
l Installation:On symmetrical DIN rail 35.5mm |
Construction and Feature
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Provides protection against over-voltage
Provides comprehensive protection to household and commercial distribution
systems.

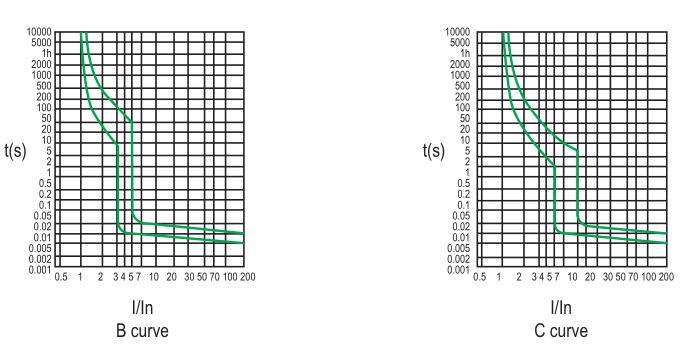

Characteristic Curve

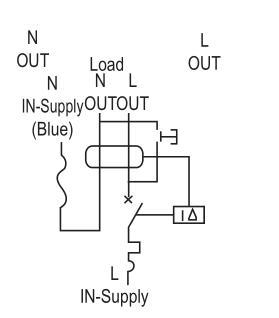

Wiring Diagram
