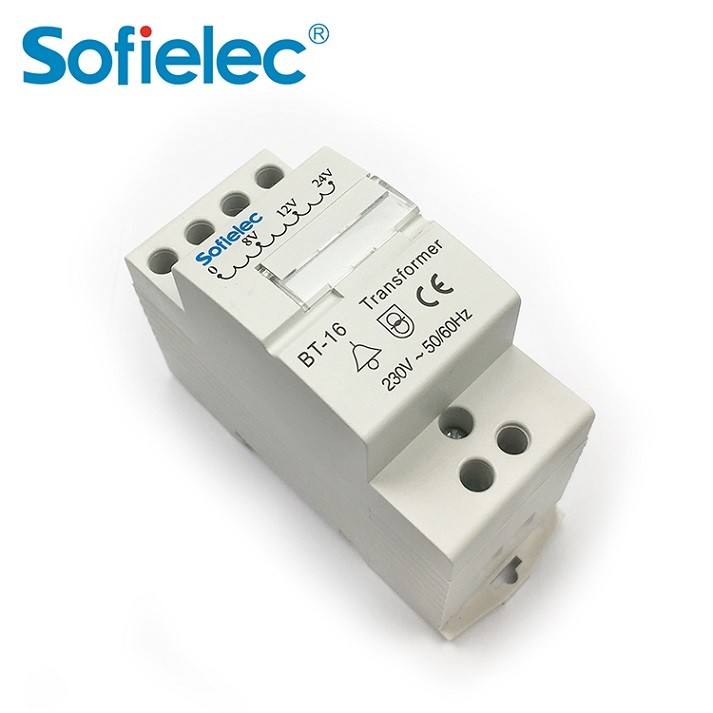

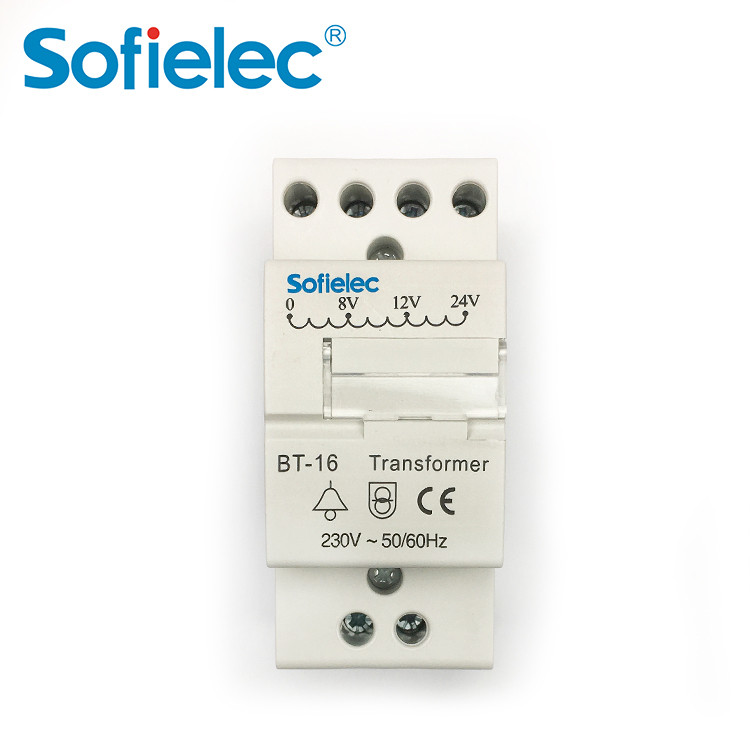

BT8-16 8-24V Bell transformer work with Circuit breaker

BT8-16 8-24V Bell transformer work with Circuit breaker

BT8-16 8-24V Bell transformer work with Circuit breaker
BT8-16 8-24V Bell transformer work with Circuit breakerBT8-16 8-24V Bell transformer work with Circuit breakerBT8-16 8-24V Bell transformer work with Circuit breakerBT8-16 8-24V Bell transformer work with Circuit breaker
CategoriesCircuit Breaker Accessory
Rated input voltage230V AC
Rated output voltage4,6,8, 12, 16, 24V
Rated frequency50/60Hz
Rated power output8VA
Consumption1.15W
Service periodcontinuous operating
Pollution class2
Connection terminalspillar terminal with clamp
Connection capacityrigid conductor 10mm²
Terminal Connection HeightH=15.5mm
Update TimeMar 29,2024
Detail Information
Technical Data

Rated input voltage: 230V AC

Rated output voltage:

BT16: 8, 12, 24V

BT8: 4, 6, 8, 12, 16, 24V

Rated frequency: 50/60Hz

Rated power output: 8VA

Consumption: 1.15W

Service period: continuous operating

Pollution class: 2

Connection terminals: pillar terminal with clamp

Connection capacity: rigid conductor 10mm ²

Installation:On symmetrical DIN rail 35mm

Panel mounting

Terminal Connection Height: H=15.5mm

Construction and Feature





Safe electrical separation between primary and secondary circuit

Provides extra low voltage up to 24V

Low temperature rising

High output accuracy

Extra overload capacity up to 25% within 24 hours

Aplication

Applicable to circuit with rated voltage 230V~ and rated frequency 50/60Hz, used to power electric bell of extra low voltage.

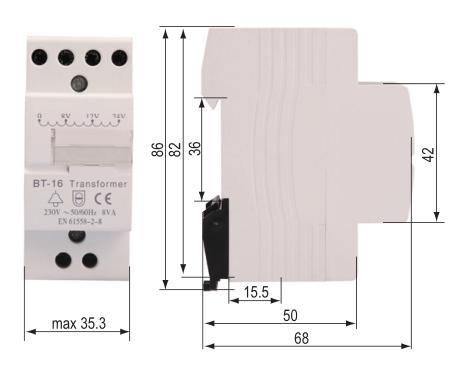

Overall & Installation Dimensions
