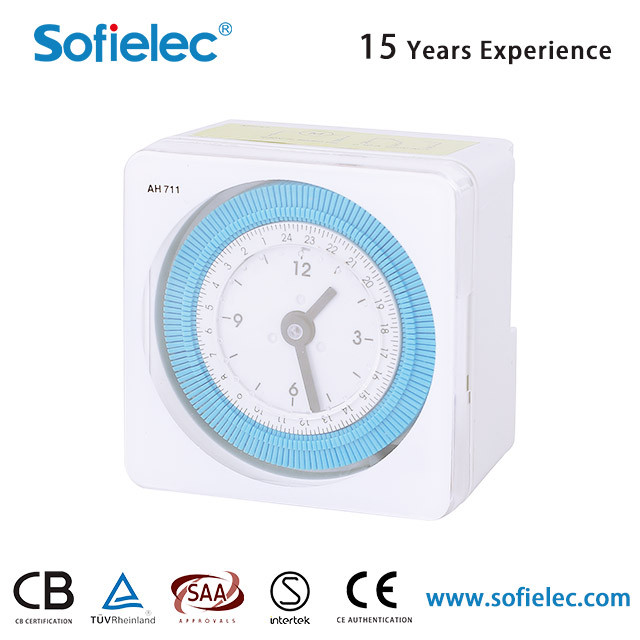

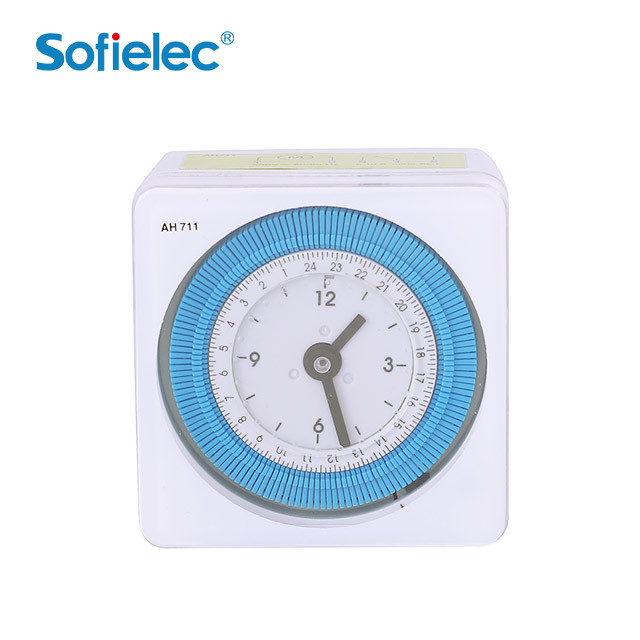

AH711 220V-240V 50Hz Mechanical Programmable Analogue Time switch

Categories	Time Switch
Update Time	Apr 25,2024

Contact Now

Favorites

Detail Information

Descripition

Analog time switch

1 channel

Switching status display

Daily program

144 switching segments

Quartz controlled

Shortest switching time: 10 minutes

Clock hands for time display

Simple summer/winter time correction

Switch construction:Changeover contact

Screw terminals

AH711 ：With power reserve (NiMH rechargeable battery)

AH710：Without power reserve

Commercial Refrigeration

Pumps/Motor/Fan Control

Hydroponic Systems

Aerobic Wastewater Treatment Systems

Boilers

Generator Exercising

Technical Data

Type	AH711/AH710
Operating voltage	230-240 VAC / 110VAC / 24VDC / 12VDC
Frequency	50-60 Hz
Number of channels	1
Width	4 modules
Installation type	surface / flush panel / control panel
Type of connection	Screw terminals
Drive	Quartz-controlled stepper motor
Program	Daily program
ower reserve	72 hours丨Without power reserve
Max. switching capacity at 250 V AC, cos φ = 1	10 A
Max. switching capacity at 250 V AC, cos φ = 0.6	3 A
Incandescent/halogen lamp load	600W
Energy saving lamps	100W
LED lamp < 2 W	20W
LED lamp > 2 W	100W
Shortest switching time	10 min
Programmable every	10 min
Number of switching segments	144
Time accuracy at 25 °C	≤ ± 2 s/day(Quartz)
Type of contact	Changeover contact
Switching output	Potential-free and phase-independent
Power consumption	1.5 VA
Test approvals	CE
Housing and insulation material	High-temperature resistant, self-extinguishing thermoplastic
Type of protection	IP 20
Protection class	II in accordance with EN 60730-1
Ambient temperature	–10 °C … +50 °C

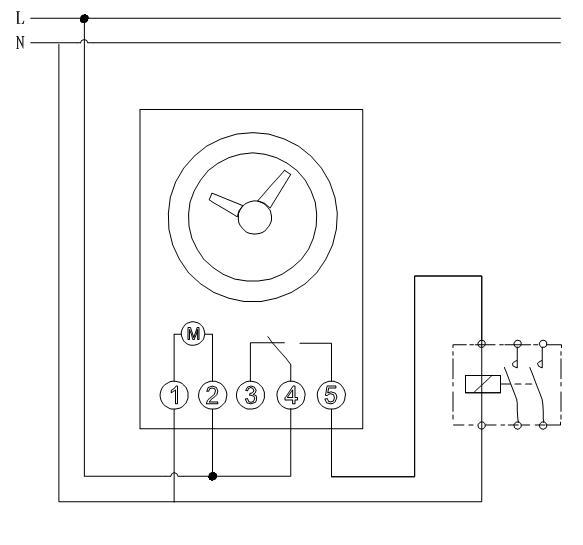

Connection Example

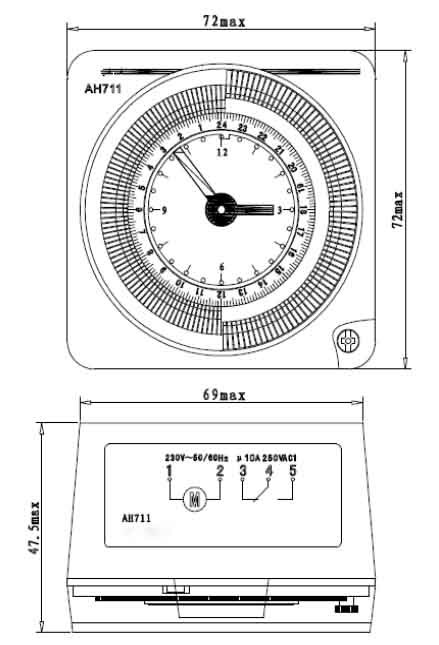

Scale Drawings

Other
