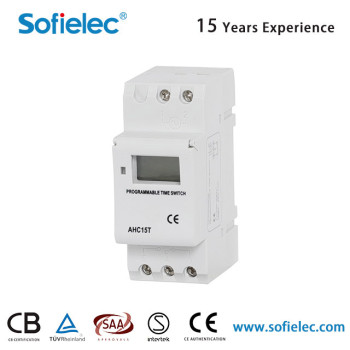

AHC15T 24 hourly timer

AHC15T 24 hourly timer

AHC15T 24 hourly timer
AHC15T 24 hourly timerAHC15T 24 hourly timerAHC15T 24 hourly timer
CategoriesTime Switch
Update TimeMar 29,2024
Detail Information

Function

Astronomical time switch

1 channel

Latitude set North: 1 ~ 66º and South:1 ~ 66º (1º increased)

Perpetual calendar (40 years)

 Program follows / non-follow the sunrise / sunset

 Program follows / non-follows the change in Daylight Saving Time

Manually set Daylight Saving Time(1 Hours)

8 ON / OFF program

Preset date and time

Switching preselection

Fully operable without mains connection

Built-in lithium battery,power failure memory

12/24 hour format conversion

Screw terminals

Solar energy equipment

Light of billboard or showcase control

Pumps/Motor/Fan Control

Hydroponic Systems

Wastewater Treatment Systems

Boilers / Heater Control

Pool & Spa

Lighting Panel Control

Landscape Lighting

Bug and Pest Control Systems

Aerobic Waste Water Systems

General Electrical Circuits

Product Selection

Product Type

Voltage

Frequency

Terminal

Switching capacity

AHC15T-220/50Hz-16A

220V

50Hz

5

16A

AHC15T-220/60Hz-16A

60Hz

AHC15T-110/50Hz-16A

110V

50Hz

AHC15T-110/60Hz-16A

60Hz

AHC15T-12V-16A

AC/DC 12V

50/60Hz for AC

AHC15T-24V-16A

AC/DC 24V

AHC15T-220/50Hz-3P-20A

220V

50Hz

3

20A

AHC15T-220/50Hz-5P-20A

5

AHC15T-220/60Hz-3P-2

50Hz

3
AHC15T-220/60Hz-5P-20A
5

AHC15T-110/50Hz-3P-20A

110V

60Hz

3

20A

AHC15T-110/50Hz-5P-20A

5

AHC15T-110/60Hz-3P-20A

60Hz
3

AHC15T-110/60Hz-5P-20A

5

AHC812-12V

AC/DC 12V

AC 50/60Hz

5

AHC812-24V

AC/DC 24V

AC 50/60Hz

5
Technical Data

Product Type

AHC15T

Number of  ON / OFF programs

20

Width

2 modules

Type of contactInstallation type

Din rail

Type of contact

Changeover contact

Switching output

Phase-independent

Method of connection terminal

Screw terminals

Power reserve

3 years

Switching capacity at 250 V AC, cos φ = 1

16A

Switching capacity at 250 V AC, cos φ = 0,6

10A

Energy saving lampsIncandescent/halogen lamp load 230V

2600W

Energy saving lamps

170W

LED lamp < 2 W

30W

LED lamp 2–8 W

100W

LED lamp > 8 W

120W

Fluorescent lamp load (electronic ballast)

650W

Fluorescent lamp load (conventional) not corrected


1000VA

Fluorescent lamp load (conventional)series-corrected

1000VA

Fluorescent lamp load (conventional) parallel-corrected

730 VA 80uF

Time accuracy at 25 °C

typical ± 2 s/day (quartz)

Consumed power

4VA

Test approval

CE

Type of protection

IP 20

Protection class

II according to EN 60 730-1

Housing and insulation materia

High-temperature resistant, self-extinguishing thermoplastic

Work  temperature

-10 ~ +50 °C (non-icing)

Ambient humidity

35~0.85 RH

Connection Example

Scale Drawings
