ZHRV3-07 Voltage control relay
| Categories | Voltage Control Relay |
|---|---|
| Rated supply voltage range | P-P: AC 3x208- -3x440V; P-N: AC 3ẞ120- -3x254V |
| Rated supply working voltage range | P-P: AC 166V- -528V; P-N: AC 96V- 329V . |
| Rated supply frequency | 50/60Hz |
| Measuring range | AC 166V -528V ; AC 96V- 329V |
| Measurement frequency range | 45Hz~65Hz |
| voltage threshold range | 2%~ 20% |
| Phase failure and phase sequence | <0.5s |
| Action delay range | 0.1s~10s |
| Reset delay range | 0.1s~10s |
| Rated insulation voltage | 440V |
| Voltage measurement | ≤0.1% |
| Update Time | September 25,2023 |
Detail Information
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessors, true RMS voltage measurement, voltage measurement accuracy 5 1%. Measuring frequency 45Hz~65Hz, button setting, LCD display voltage and fault information, protection can be turned on or off. Check phase voltage value by button, with N-phase phase failureprotection. DIN rail mounting.

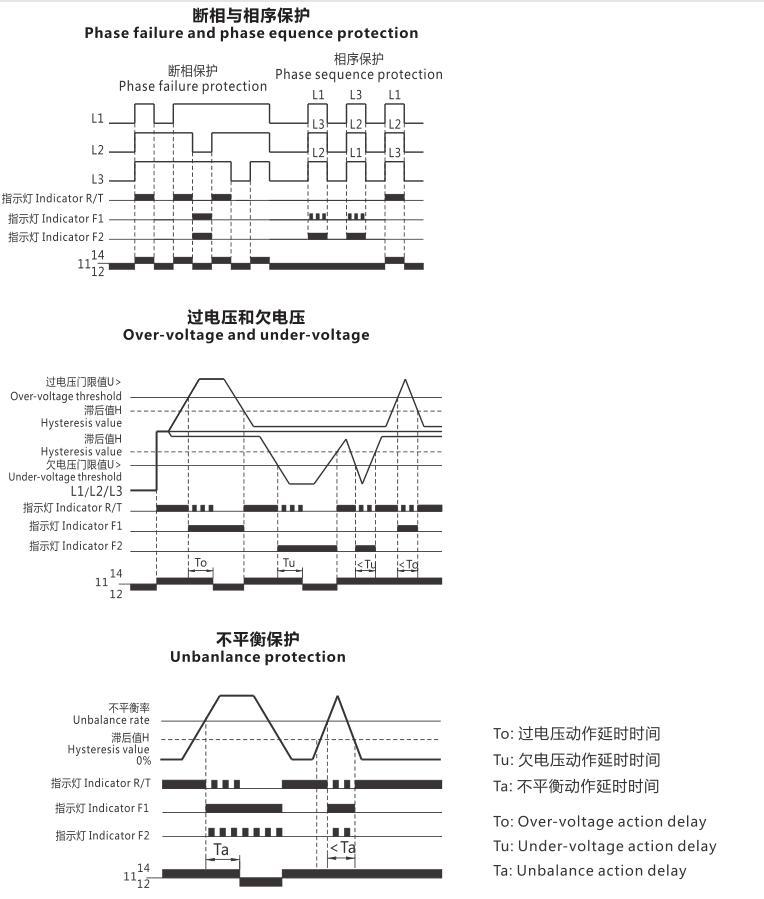

Function Diagram

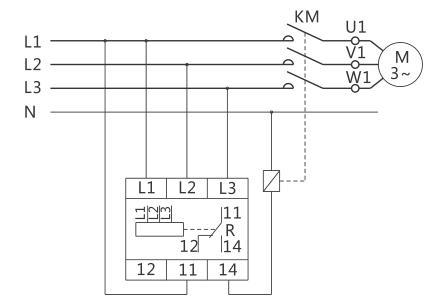

Wiring Diagram

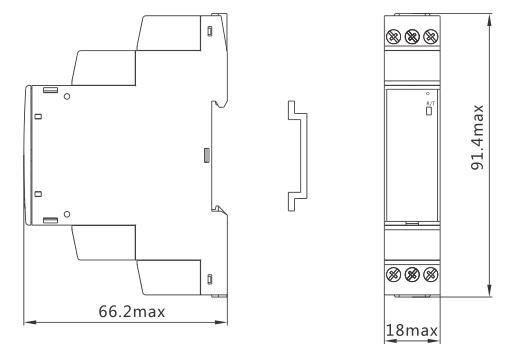

Dimensions
