CJX2-K09 mini contactor

CJX2-K09 mini contactor

CJX2-K09 mini contactor
CJX2-K09 mini contactorCJX2-K09 mini contactorCJX2-K09 mini contactor
Update TimeApr 24,2024
Detail Information

Technical Data


CJX2 series AC contactor(hereinafter to be referred as contactor), it mainly applies to the circuitof AC 50Hz/60Hz, and rated insulation voltage 660V. Combined with proper thermal overloadrelay can protect load circuit. Contactor can fre-quently start and control AC electromotor.This product conforms to GB 14048 4. IEC60947- 4-1 standard.

Structural features

Has advanced structure, small size, light weight, low power consumption, high life, safety and reliability, technical performance characteristics.. can be used to install modular mounting auxiliary contact group, attachments, etc. combined into a variety of thermal relay derived products.a , In addition to the contactor mounting screws, but also with a standard 35mm rail mounting.. contactor core and the contact with the mounting surface parallel to the direction of motion.


1、Amdient air temperature:-5℃~+40℃, the average value should not exceed+35℃ within 24 hours.

2、Elevation: At most 2000m.

3、Atmospheric conditions:When the temperature at 40, the relative humidity of atomsphere should de at the most 50%.

4、When at relatively low thmperatures, it could have higher relative humidity. Monthly maximum relative humidity could be not more than 90%. Special measures should be taken due to occurrence of dews.

5、Class of pollution:Class 3

6、mstallation category.Ⅲ

7、Installation conditions: Degree of inclination between fitting surface and verical surface should not exceed ±5°

8、Impact shock: Product should be installed and used in the place where often shakes and impacts.

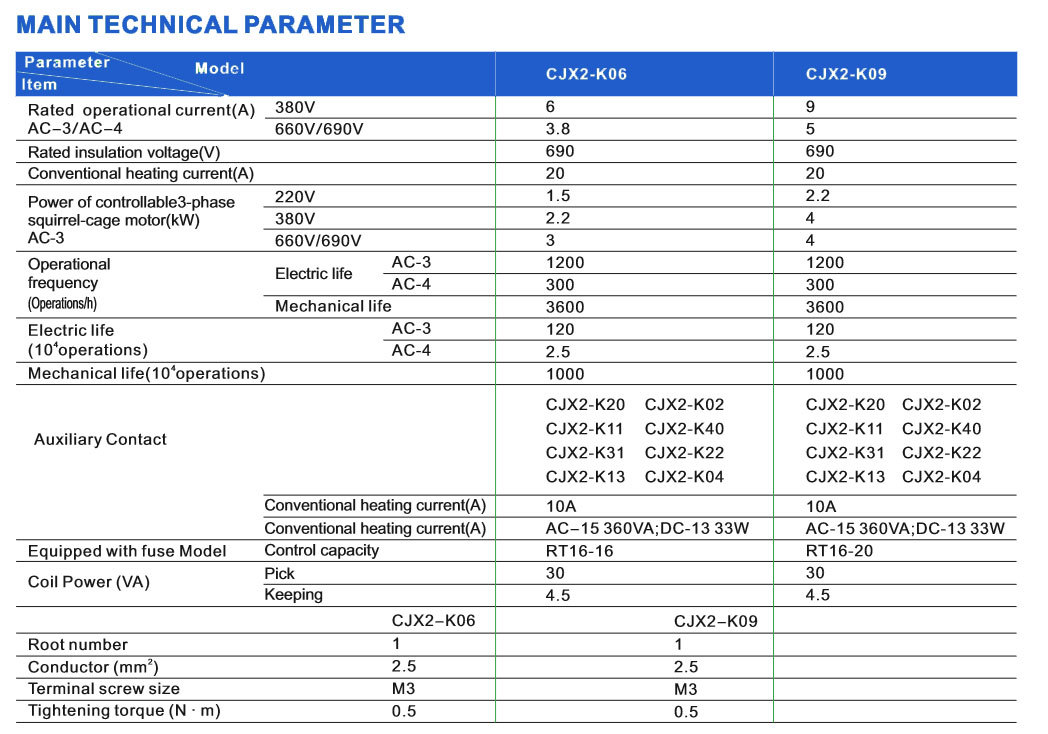

Main technical parameter
