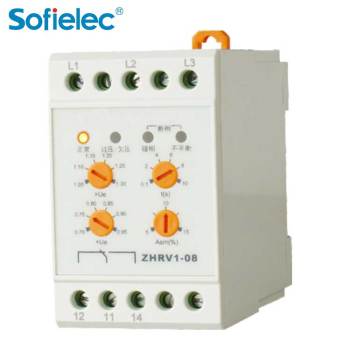

ZHRV1-08 Sofielec under over voltage control,cnc phase sequence module device relay

ZHRV1-08 Sofielec under over voltage control,cnc phase sequence module device relay

ZHRV1-08 Sofielec under over voltage control,cnc phase sequence module device relay
CategoriesVoltage Control Relay
ModelZHRV1-08
Rated insulation voltage415V
Contact configuration capacity(A)10A
IP ClassIP20
Use categoryAC-15
Short circuit protector typeRT36-00 5A
Output type1C/O
Altitude≤2000m
Allowable relative humidity≤50%
Contact capacityUe/le: 240V/1.5A, 415V/0.95A
Rated supply voltageAC220V、AC230V. AC240V、AC380V、 AC400V、 AC415V
Update TimeMay 30,2023
Detail Information

Function

Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

 Features

Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, unique load-side  and PTC temperature protection, optional manual reset and key test function, DIN rail mounting. .

Function Diagram

Wiring Diagram
Dimensions
