ZHRV2-04 Voltage control relay

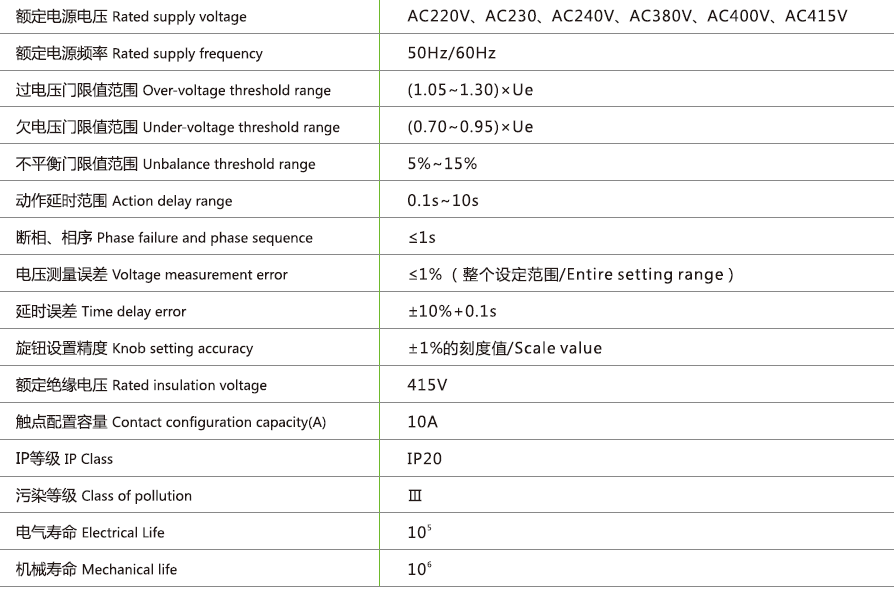

| Categories | Voltage Control Relay |
|---|---|
| Rated supply voltage | AC220V. AC230. AC240V. AC380V. AC400V. AC415V |
| Rated supply frequency | 50Hz/60Hz |
| Over- voltage threshold range | (1.05~1.30)xUe |
| Under -voltage threshold range | (0.70~0.95)xUe |
| Unbalance threshold range | 5%~ 15% |
| Action delay range | 0.1s~10s |
| Phase failure and phase sequence | ≤1s |
| Voltage measurement error | ≤1% |
| Rated insulation voltage | 415V |
| Contact configuration capacity(A) | 10A |
| Update Time | September 26,2023 |
Detail Information
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, DIN rail mounting.

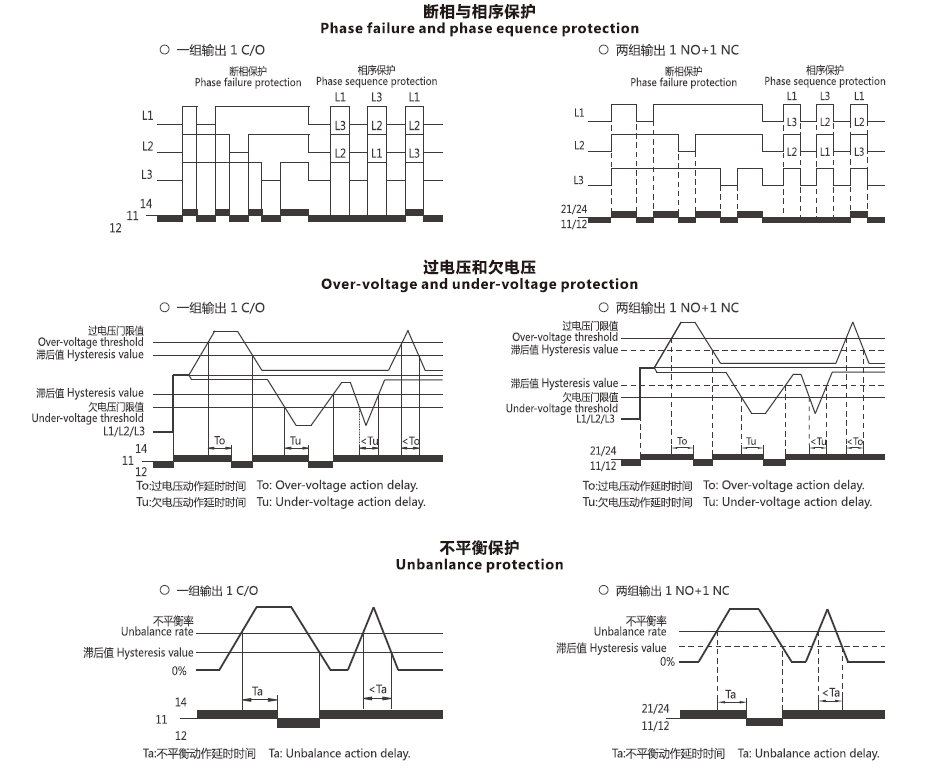

Function Diagram

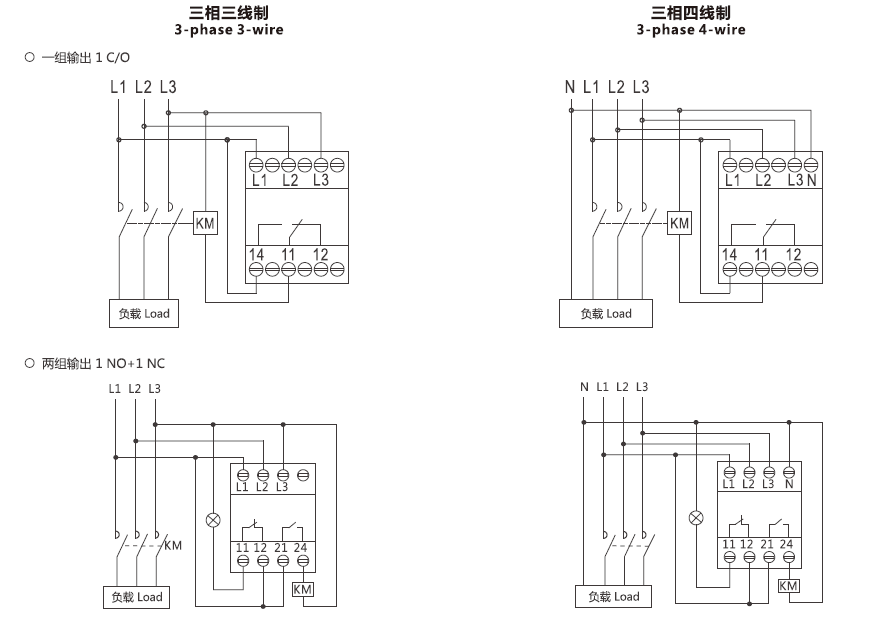

Wiring Diagram

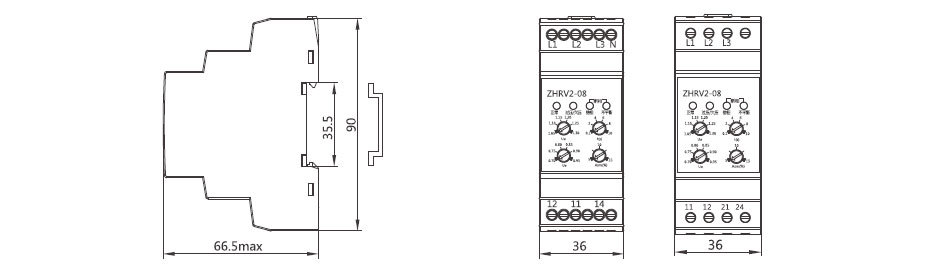

Dimensions
