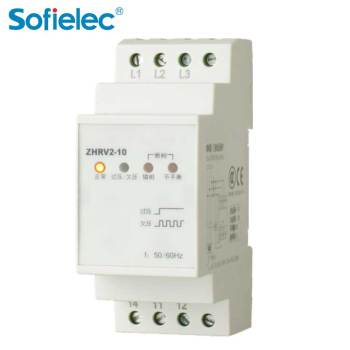

ZHRV2-10 Voltage control relay

ZHRV2-10 Voltage control relay

ZHRV2-10 Voltage control relay
CategoriesVoltage Control Relay
Rated supply voltageAC220V. AC230. AC240V. AC380V. AC400V. AC415V
Rated supply frequency50Hz/60Hz
Over- voltage threshold range(1.05~1.30)xUe
Under -voltage threshold range(0.70~0.95)xUe
Unbalance threshold range5%~ 15%
Action delay range0.1s~10s
Phase failure and phase sequence≤1s
Voltage measurement error≤1%
Rated insulation voltage415V
Contact configuration capacity(A)10A
Update TimeApr 24,2024
Detail Information

Function

Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection  of  over-voltage,  under  voltage, phase failure, phase sequence and phase unbalance. When the power  supply is abnormal, turn off power supply to protect the equipment.

 Features

Built-in microprocessor, true RMS measurement, measurement accuracy ≤1%.50/60Hz universal, knob setting, LED indicator shows working status. With N-phase phase failure protection, DIN rail mounting.


Function Diagram

Wiring Diagram
Dimensions
