ZHRT1-DS Sofielec time relay

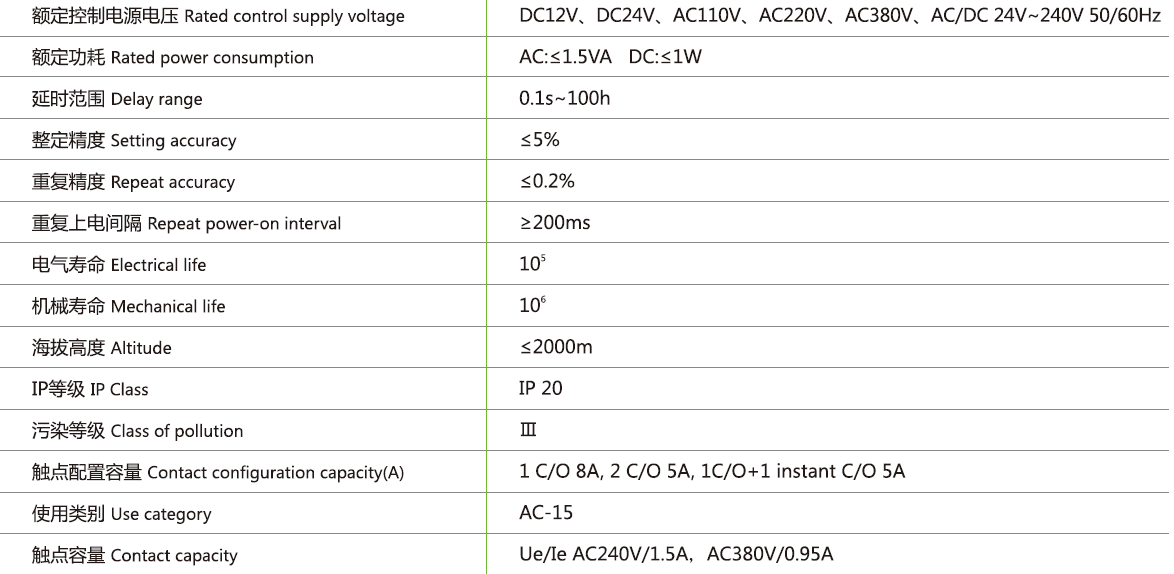

| Categories | Time Relay |
|---|---|
| Model | ZHRT1-DS |
| Rated control supply voltage | AC110V. AC220V. AC380V AC/DC 24V~240V 50/60Hz |
| Rated power consumption | AC:≤1.5VA DC:≤1W |
| Delay range | 0.1s~100h |
| Setting accuracy | ≤5% |
| Repeat accuracy | ≤0.2% |
| Repeat power- on interval | ≥200ms |
| Altitude | ≤2000m |
| Contact configuration capacity(A) | 1 C/O 8A,2 C/O 5A,1C/O+1 instant C/O 5A |
| IP Class | IP 20 |
| Use category | AC-15 |
| Update Time | Dec 2,2023 |
Detail Information
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
uilt-in microcontrollers, 0.1s ~100h wide delay range, repeat accuracy <0.2%. Knob setting, LED indicator shows working status. Variety of optionalrated voltage. DIN rail mounting.

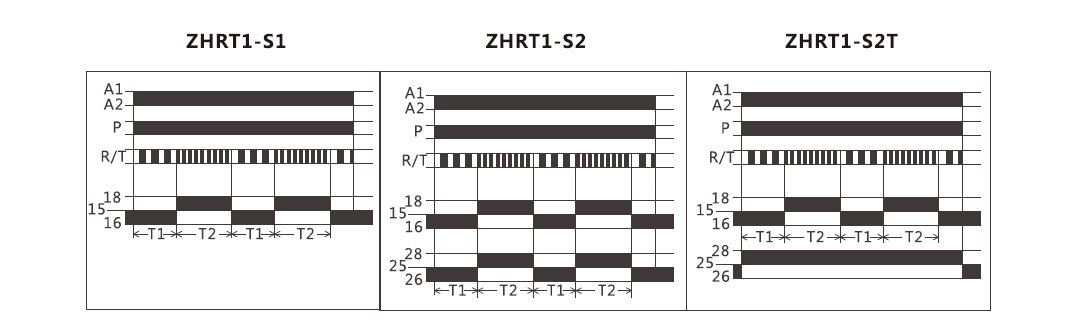

Function Diagram

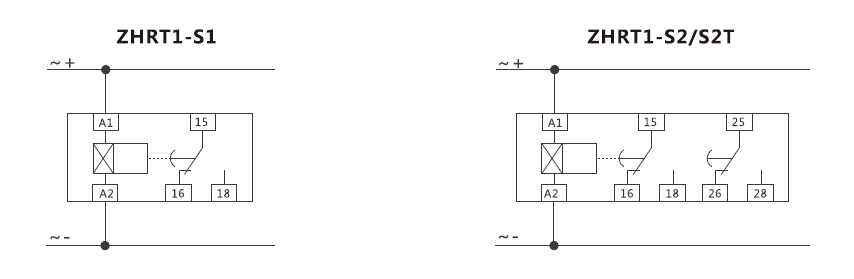

Wiring Diagram

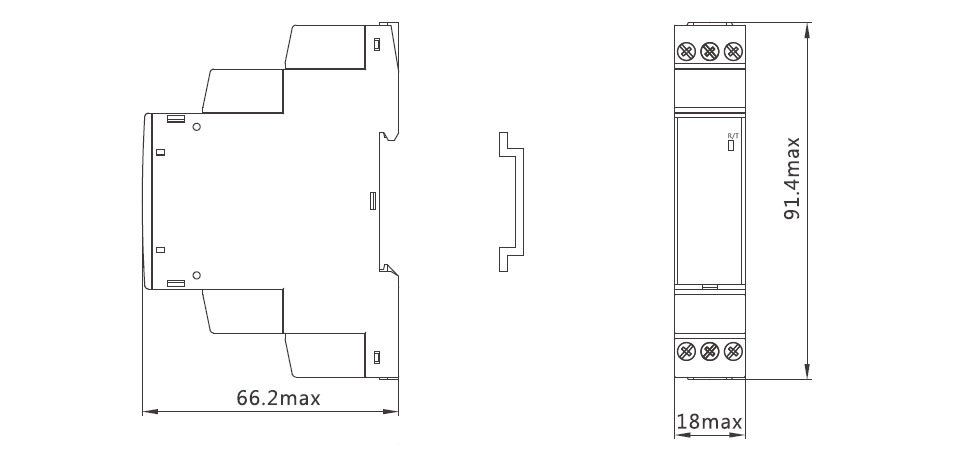

Dimensions
