ZHRV5-45 Voltage control relay

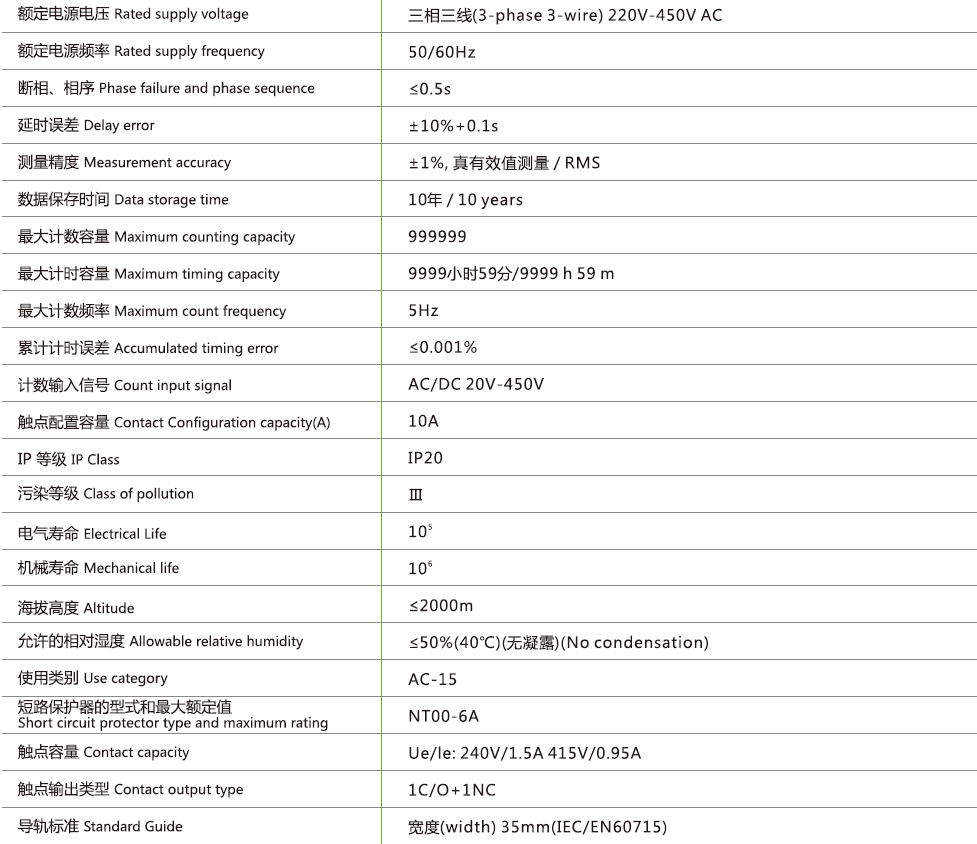

| Categories | Voltage Control Relay |
|---|---|
| Rated supply voltage | 3-phase 3-wire 220V~450V AC |
| Rated supply frequency | 50/60Hz |
| Phase failure and phase sequence | ≤0.5s |
| Measurement accuracy | ±1% |
| Data storage time | 10 years |
| Accumulated timing error | ≤0.001% |
| Contact configuration capacity(A) | 10A |
| IP Class | IP20 |
| Altitude | ≤2000m |
| Use category | AC-15 |
| Update Time | May 30,2023 |
Detail Information
Function
Applications
Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.
Built-in microprocessors, true RMS voltage measurement, voltage measurement accuracy≤1%. Measuring frequency 45Hz~65Hz,knob setting, LCD displays voltage and fault information,protection can be turned on or off.Check 3-phase voltage value by button,with counting and timing function.Record number and time of useing devices.DIN rail mounting.

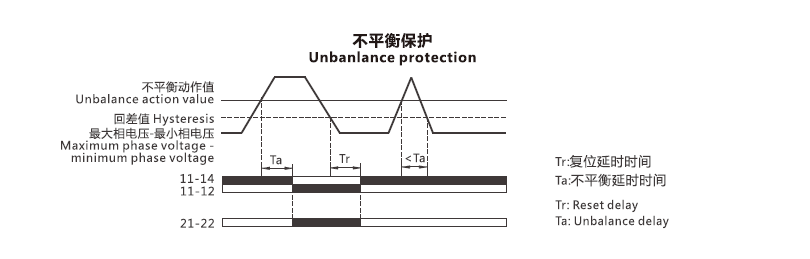

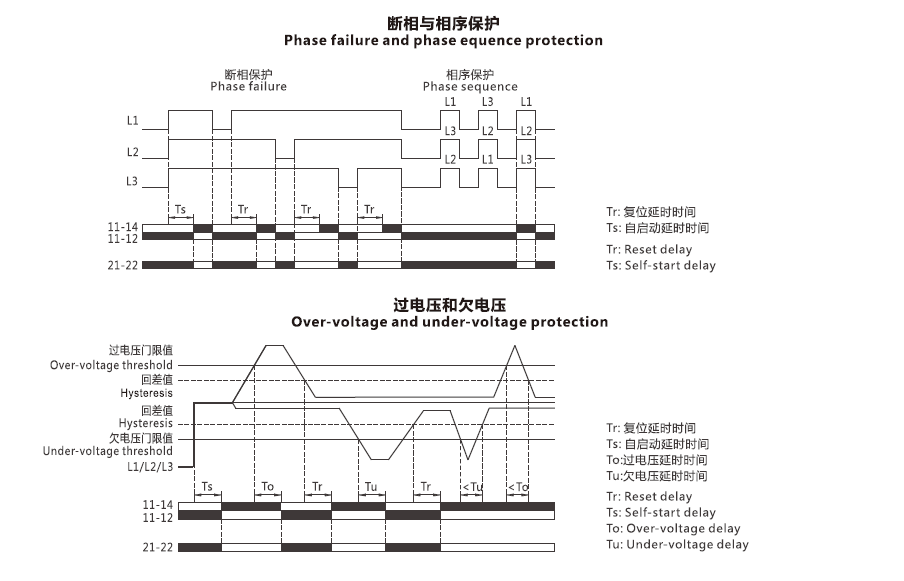

Function Diagram

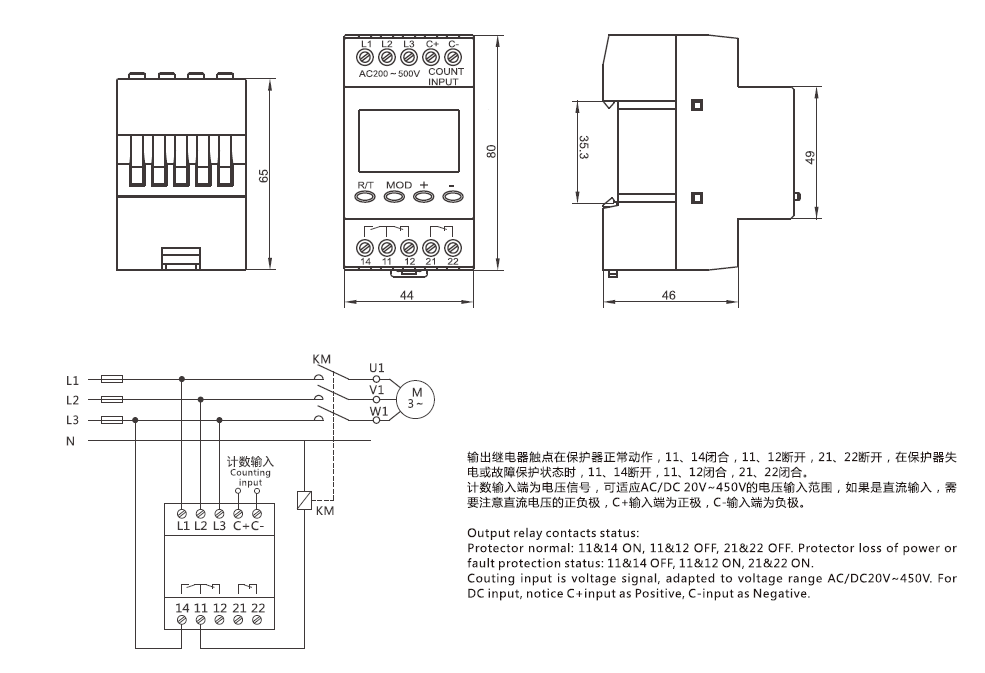

Dimensions
