EL1-C-40 SPD Surge Protective Device
| Categories | SPD Surge Protective Device |
|---|---|
| Model | EL1-C-40 |
| Parameters | EL1-C-40 |
| Maximum continuous operating voltage Uc(V~) | 420V 385V 275V |
| Voltage protection level UP(KA) | ≤1.8 ≤1.5 ≤1.2 |
| Maximum dischargecurrent(8/20us)(KÄ) | 40 |
| Nominal dischargecurrent 820usJ (KA) | 20 |
| Response time (ns) | <25 |
| IP Grade | IP20. |
| Input leads sectional area (mm²) | 6~25 |
| Transversal area of Groundlead (mm²) | 6~35 |
| Type selection offuse orcircuit breaker(A) | 25A 32A |
| Update Time | Apr 18,2024 |
Detail Information
DESCRIPTION OF PRODUCTS
EL1-C Series Surge Protection Devices (hereinafter referred to as SPD)
are suitable for ac 50/60hz, rated voltage 380V IT, TT, TN-C TN-S, TN-C-Sand other power supply systems to protect the surge caused by indirect
lightning and direct lightning or other instantaneous overvoltage. ClassIISPDaccording to IEC61643-1:1998-02. Class C surge protectors.
SPD has common mode (MC) and differential mode (MD) protection.The SPD accord with GB18802.1 /IEC61643-1.

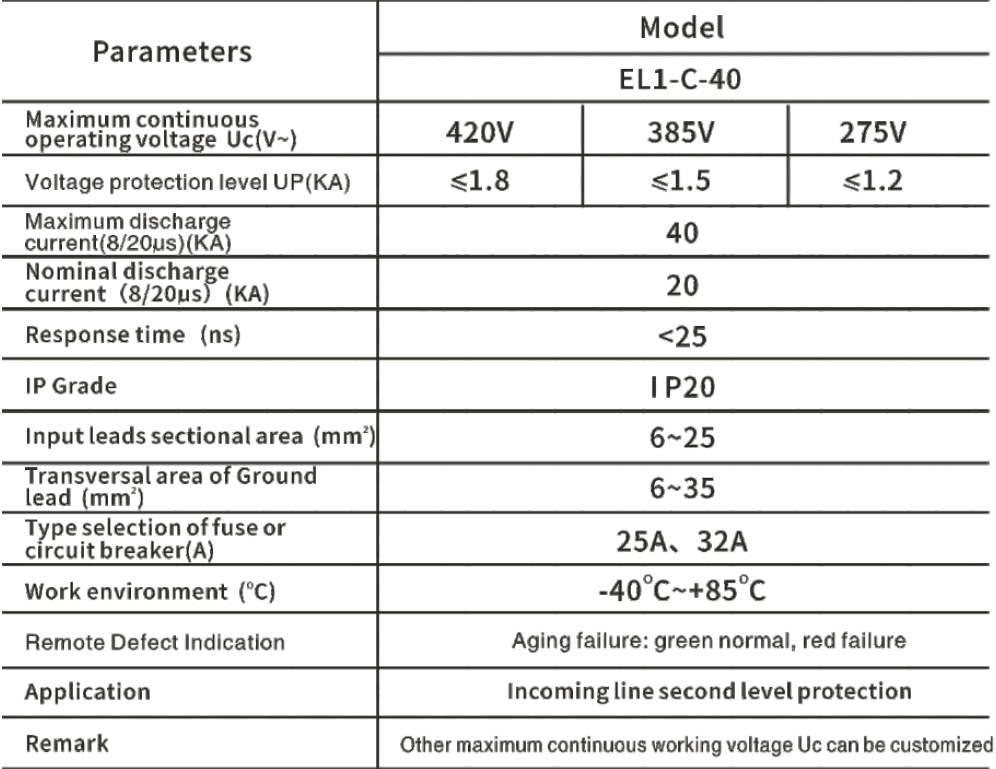

MAIN TECHNICAL PARAMETERS

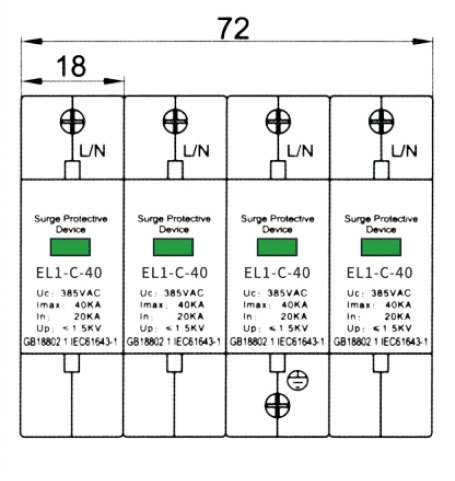

SHAPE SIZE
