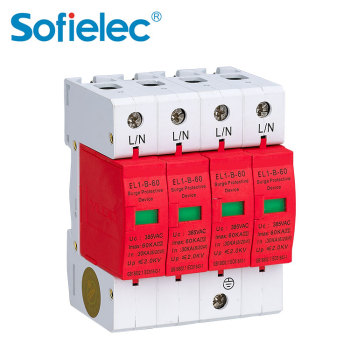

EL1-B-60 SPD Surge Protective Device

EL1-B-60 SPD Surge Protective Device

EL1-B-60 SPD Surge Protective Device
CategoriesSPD Surge Protective Device
ModelEL1-B-60
ParametersEL1-B-60
Maximum continuous operating voltage Uc(V~)420V 385V 275V
Voltage protection level UP(KA)≤2.2 ≤2.0 ≤1.8
Maximum dischargecurrent(8/20us)(KÄ)80
Nominal dischargecurrent (8/20us) (KA)40
Response time (ns)<25
IP GradeIP20.
quipped with front fuse or circuit breaker50A 63A
ApplicationIncoming line first level protection
RemarkOther maximum continuous working voltage Uc can be customized
Update TimeMar 28,2024
Detail Information
 DESCRIPTION OF PRODUCTS
  EL1-B Series Surge Protection Devices (hereinafter referred toas SPD)

      are suitable for ac 50/60hz, rated voltage 380V IT. TT. TN-C. TN-S. TN-C-Sand other power supply systems to protect the surge caused by indirect lightning and direct lightning or other instantaneous overvoltage. Class llSPD according to lEC61643-1:1998-02. Class C surge protectors.

      SPD has common mode (MC) and differential mode (MD) protection.The SPD accord with GB18802.1 /lEC61643-1.

MAIN TECHNICAL PARAMETERS
SHAPE SIZE
