change over switch 20A isolator switch with protective box
| Categories | Isolator |
|---|---|
| Model | UKF1 |
| Place of Origin | Zhejiang, China (Mainland) |
| Model Number | UKF1 |
| Max. Voltage | 250V |
| Product name | isolator switch with protective box |
| Rated voltage | 250VAC |
| Type | screw type |
| Brand Name | OEM/SOFIELEC |
| Max. Current | 63A |
| Rated current | 10A-63A |
| Certificate | TUV.CE CB |
| protection rate | IP66 |
| Rated frequency | 50/60 Hz |
| materical | PC |
| use scope | Isolator switch |
| weisite | www.sofielec.com |
| Update Time | June 2,2023 |
Detail Information
Introduction
Isolation switch is a kind of switching device mainly used for "isolated power supply, switching operation, to connect and cut off small current circuit" without arc extinguishing function.
Main Features
|
Current Scope
|
10~63A
|
|
Pole
|
2~4Pole
|
|
Voltage
|
250~500V ac
|
|
IP
|
IP66
|
Description

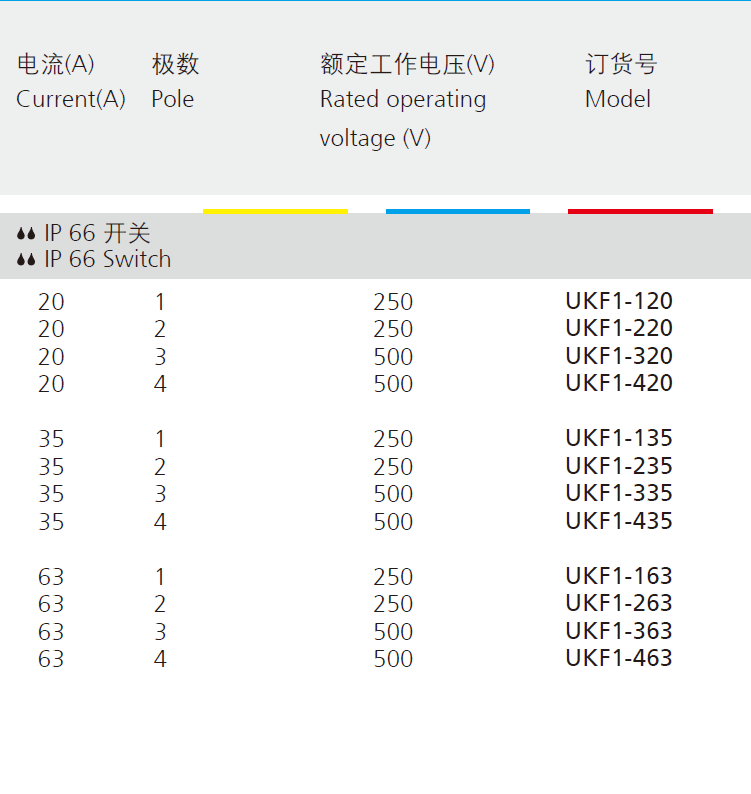

Parameter

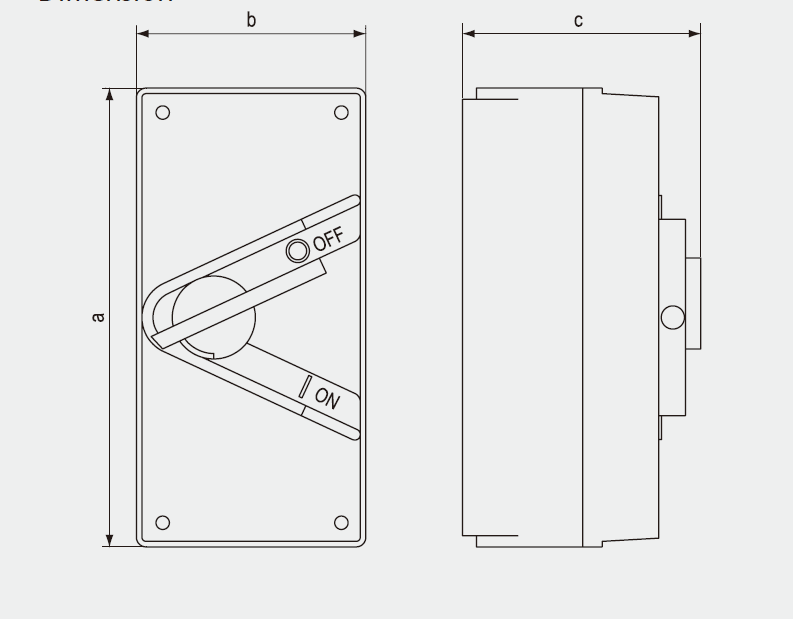

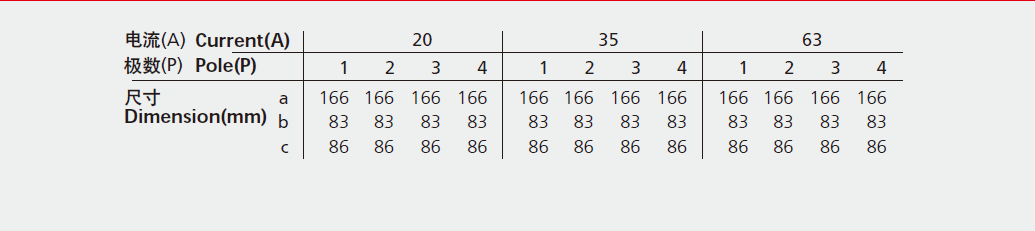

Dimension
