ATHC15T Astronomical Time switch
| Categories | Time Switch |
|---|---|
| Model | ATHC15T |
| Voltage rating | AC220V 50/60Hz |
| Switching power | 16A 250VAC (cosq=1),10A 250VAC(cosφ=0. 6) |
| Voltage limit | AC 1 80V~250V |
| Hysteresis | ≤2sec/ day (25℃) |
| Incandescent lamp load | 2300W |
| ON/OFF operation | 8 ON &8 OFF |
| Halogen lamp load | 2300W |
| Power consumption | 5VA (max) |
| Weight | approx 150g |
| Time basis | quartz |
| Ambient humidity | 35~85%rh |
| Ambient temperature | -10~+40°C |
| Update Time | June 2,2023 |
Detail Information

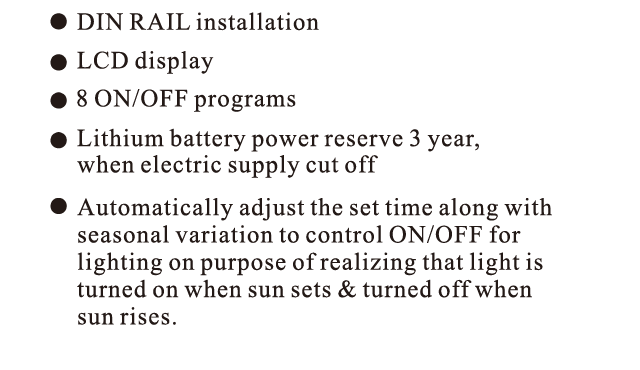

Function

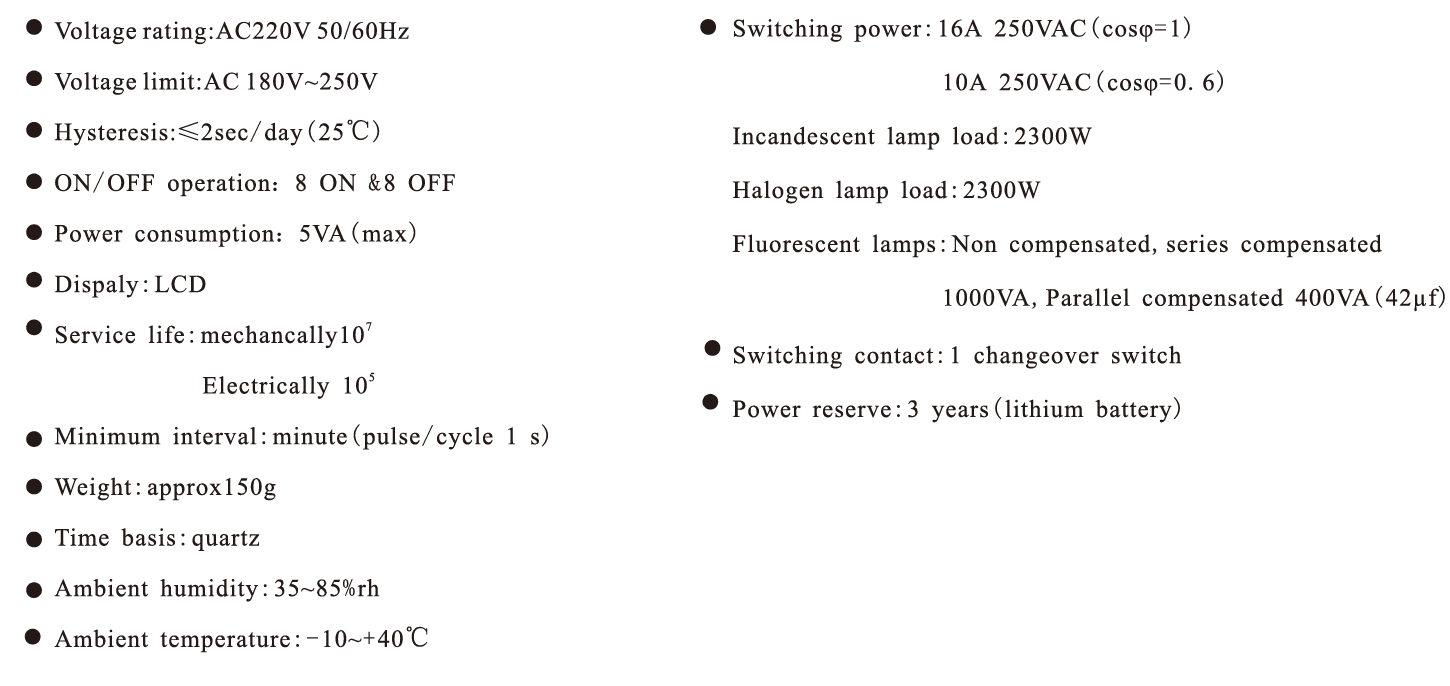

Technical date

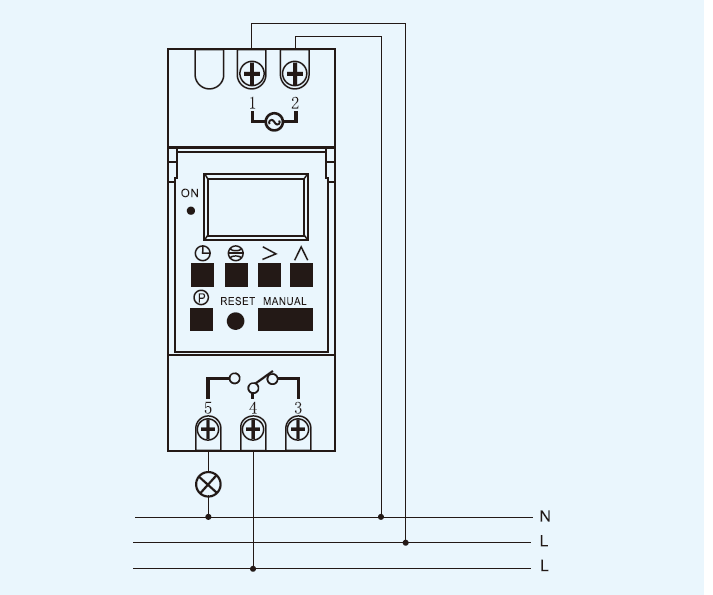

Connection example

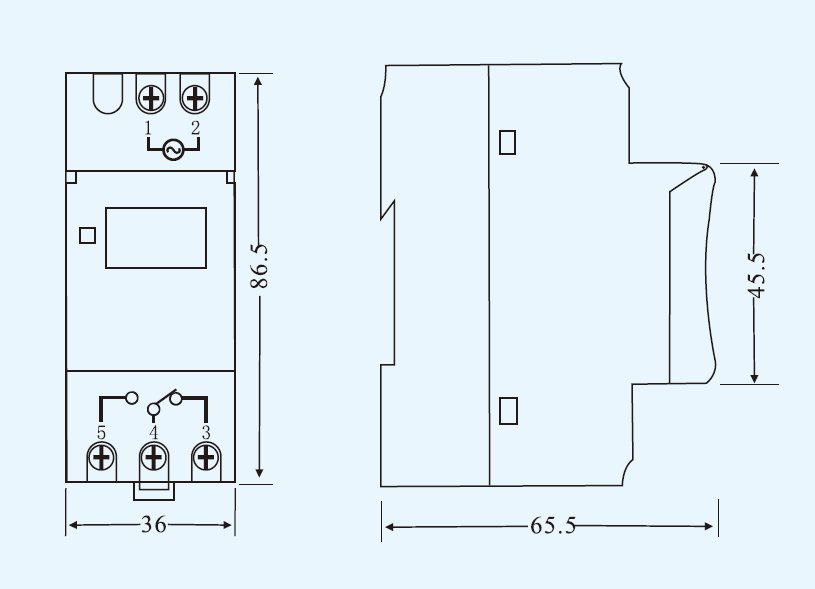

Dimensions
