SUL180 Analogue time switches-3 modules-segmens,DIN-rail
| Categories | Time Switch |
|---|---|
| Model | SUL180 |
| Voltage rating | 230VAC 50/60Hz |
| Voltage limit | 200-240VAC |
| Width | 1 Modules |
| Installation type | DIN-rail |
| Program | Daily(24 hours) program |
| Power reserve | 72 hours |
| Shortest switching time | 15 minutes |
| Programmable every | 15 minutes |
| Time accuracy | ≤土1 s/day(Quartz) |
| Power consumption | 1 VA |
| Ambient temperature | - 20℃ ~ +55℃ |
| Update Time | Apr 20,2024 |
Detail Information

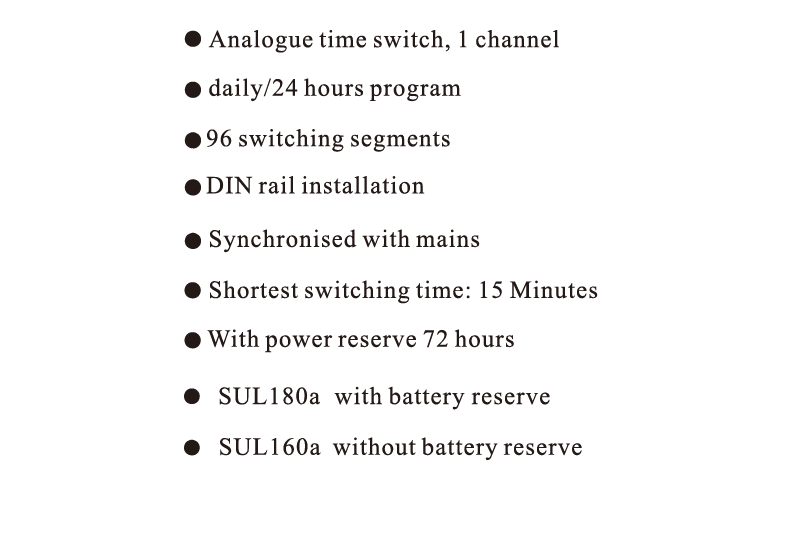

Common function

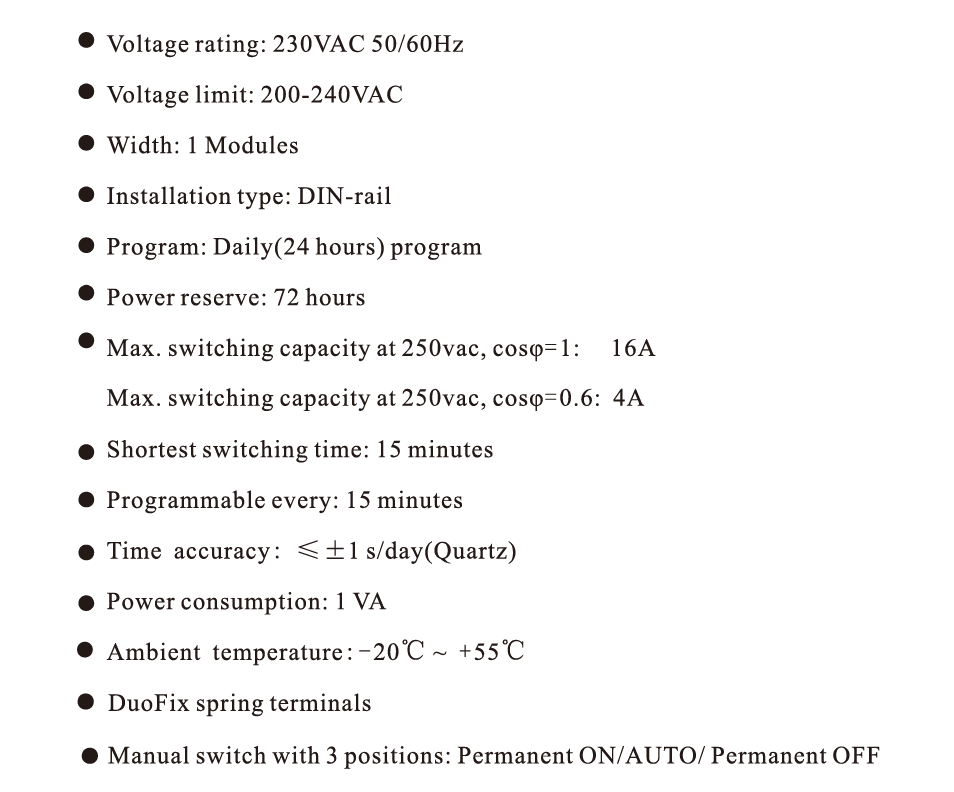

Technical date

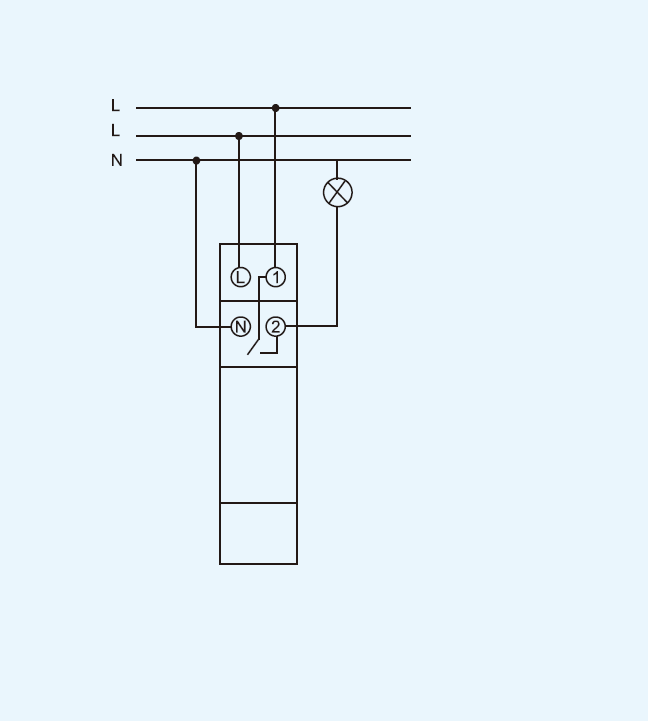

Connection example

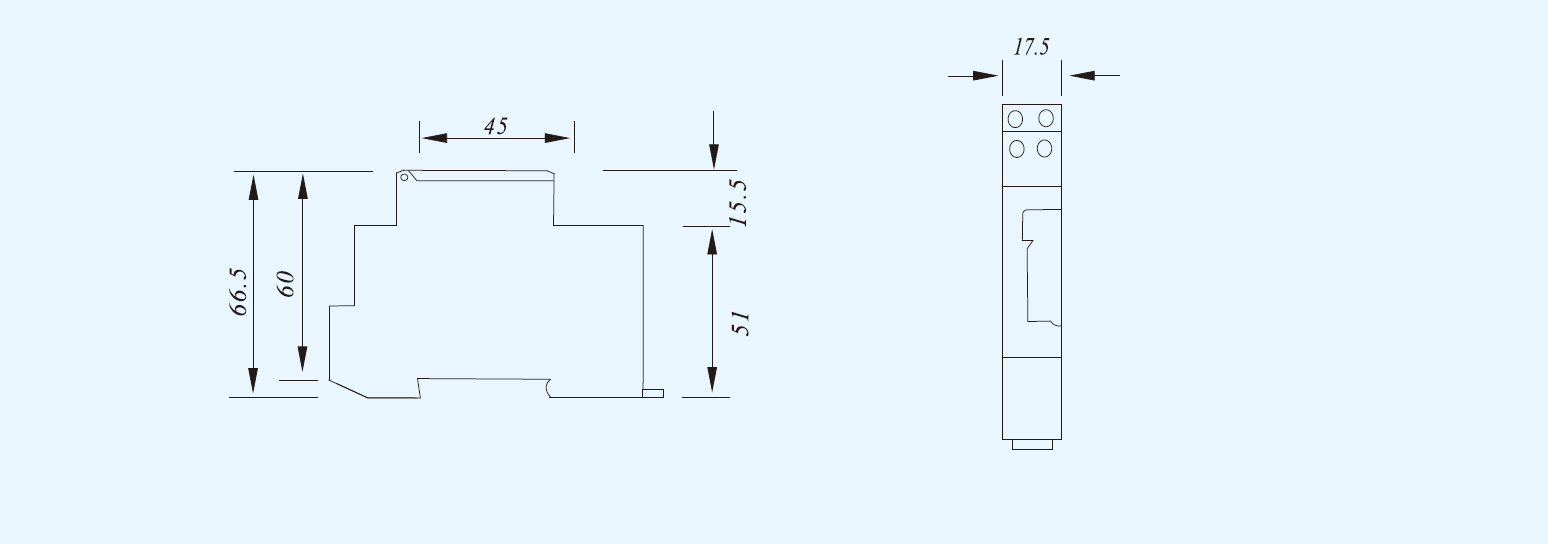

Dimensions
