AULT Latching/Memory/Electronic Step Relay
| Categories | Time Relay |
|---|---|
| Model | AULT002 |
| Rated Voltage | .12VAC/DC,24VAC/DC,230VAC 50/60Hz |
| Rated Current | 16A 250VAC(COSΦ=1) |
| Contact configuration | SPDT(1NO+1NC) |
| Mounting | DIN Rail 35 mm(EN 60715) |
| Ambient temperature range | -10...+60℃ |
| Update Time | Dec 6,2023 |
Detail Information

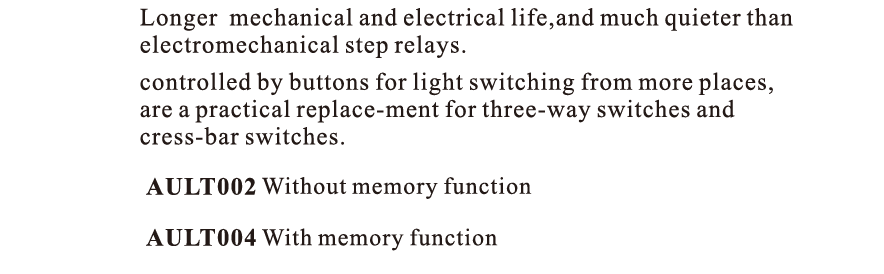

Function

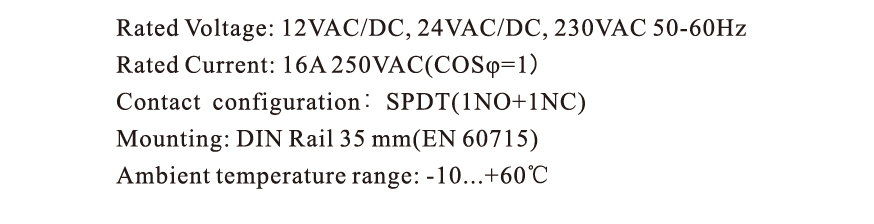

Technical date

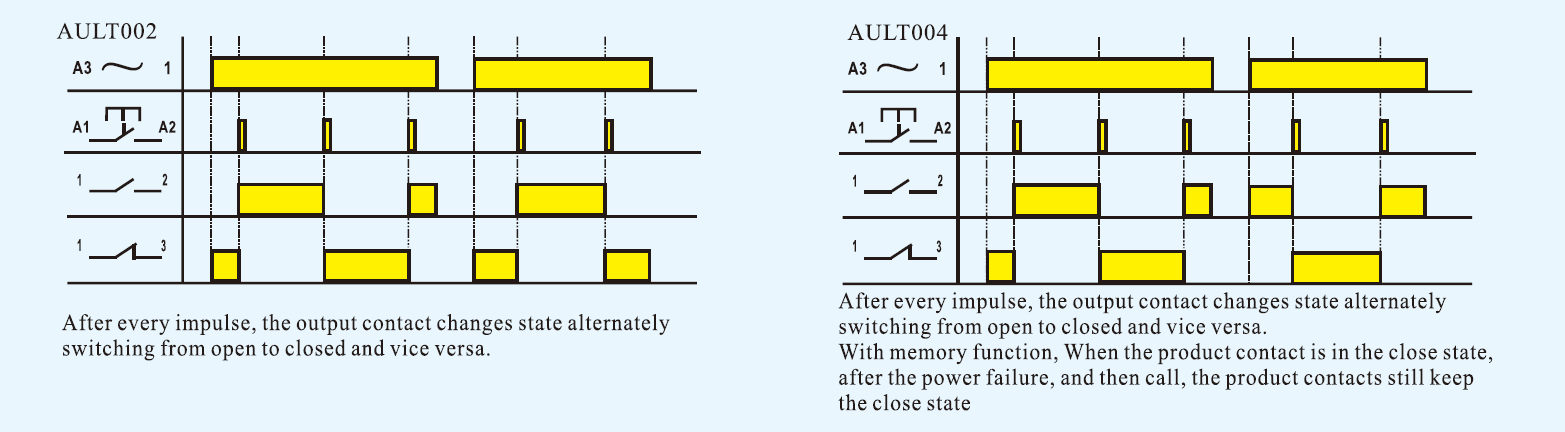

Functions

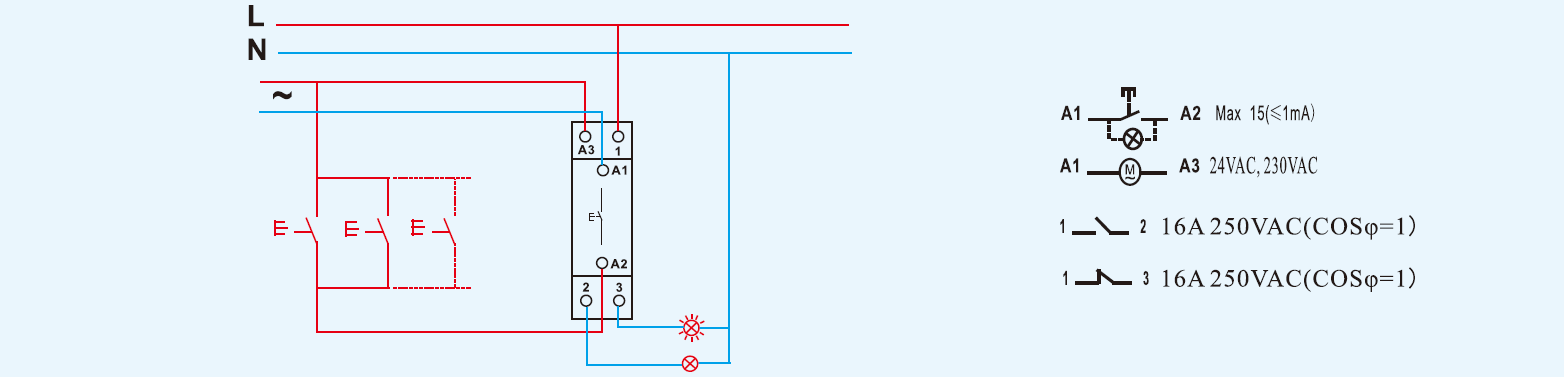

Connection Diagrams

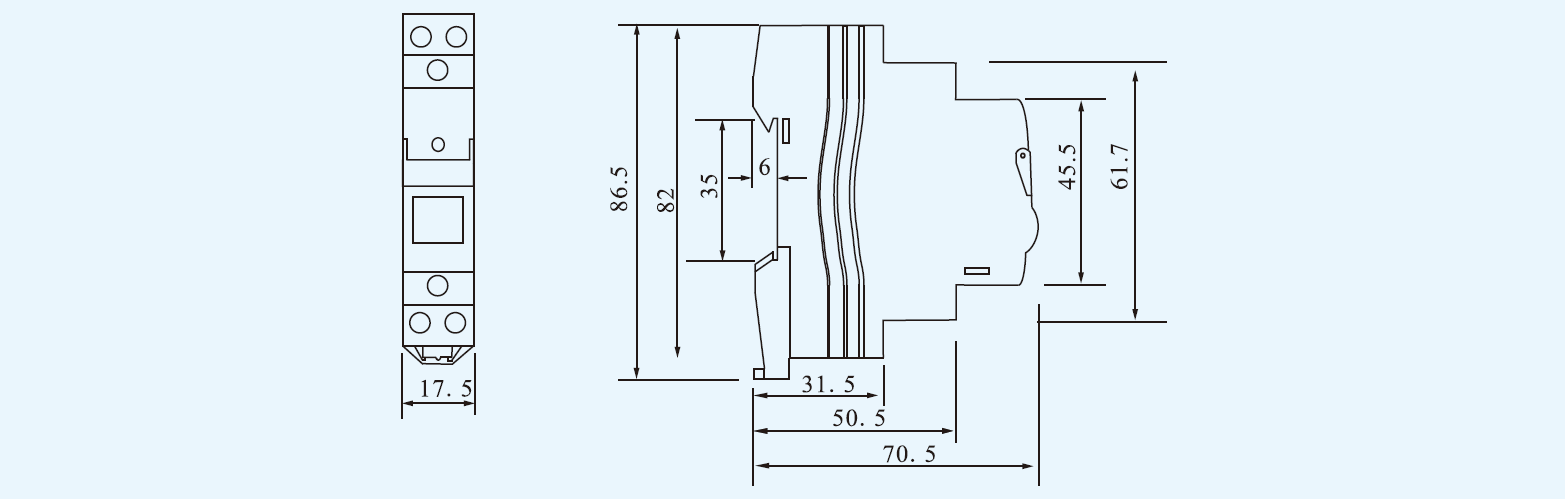

Dimensions
