GKW1 series intelligent universal circuit breaker

Categories | ACB |
---|---|
Model | GKW1 |
Update Time | May 30,2023 |
Detail Information
Normal working conditions
Protection pole: IP30
|
Pollution degree: III
|
Use category: Class B or Class A
|
|
Installation category Circuit breakers with rated operating voltages of 660V (690V) and below and undervoltage releases, primary coils for power transformers for category IV installation; auxiliary circuits and control circuits for installation category III. |
|
ambient air temperature The upper limit does not exceed +40 ° C, the lower limit is not lower than -5 ° C, and the average value of 24 h does not exceed +35 ° C |
|
Atmospheric conditions The relative humidity of the atmosphere does not exceed 50% when the ambient air is +40 ° C |

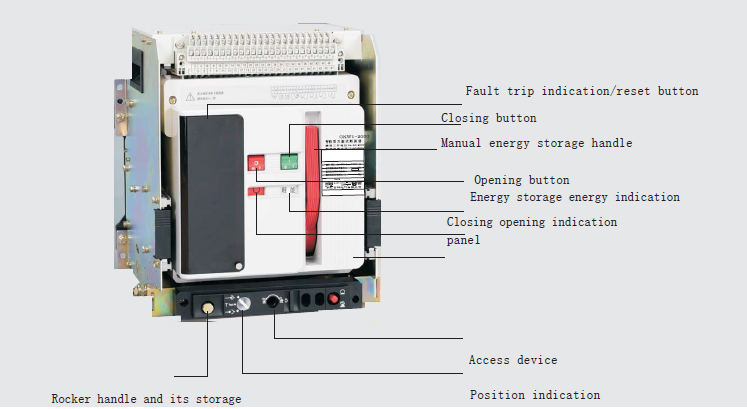

Structure introduction

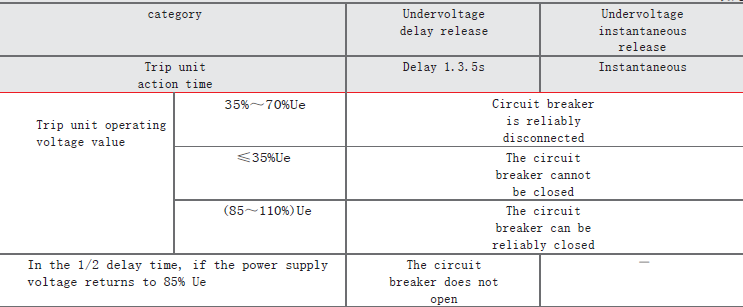

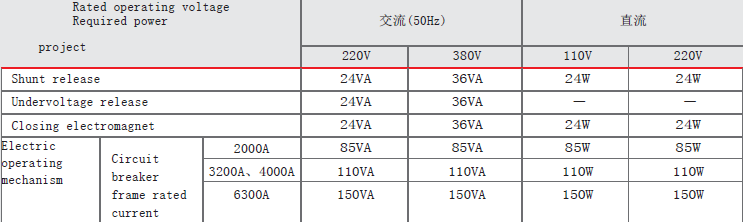

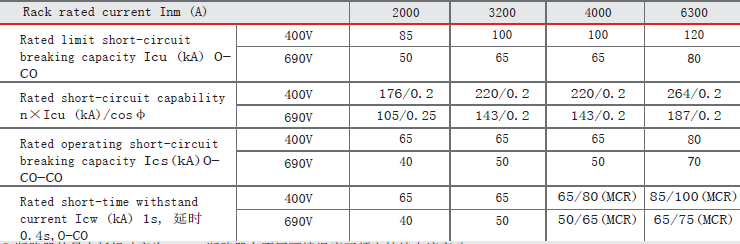

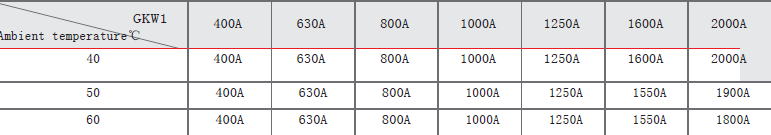

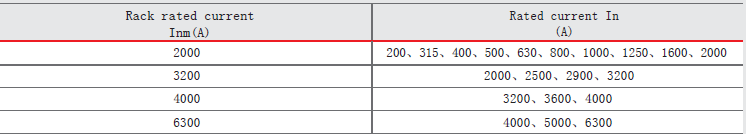

Technical data and performance



Road performance

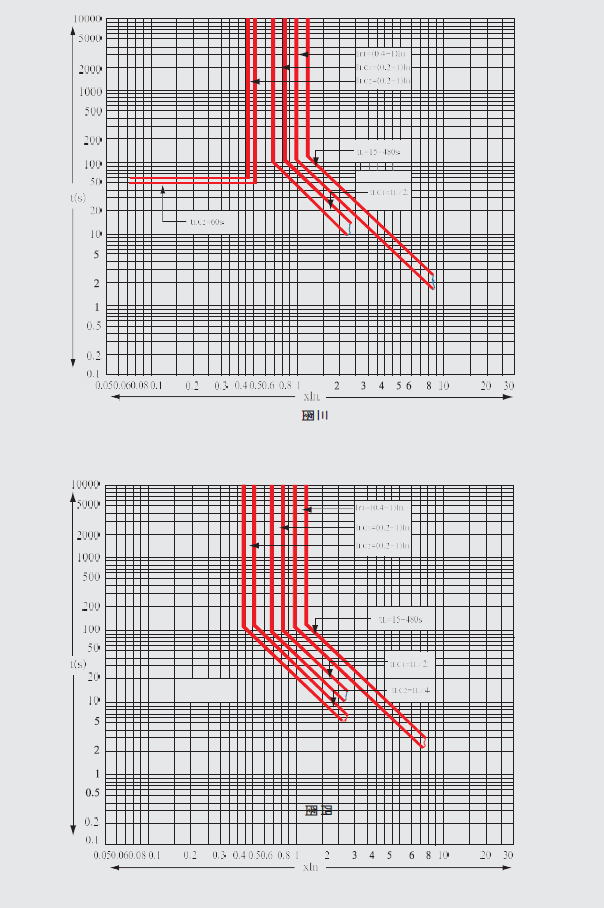

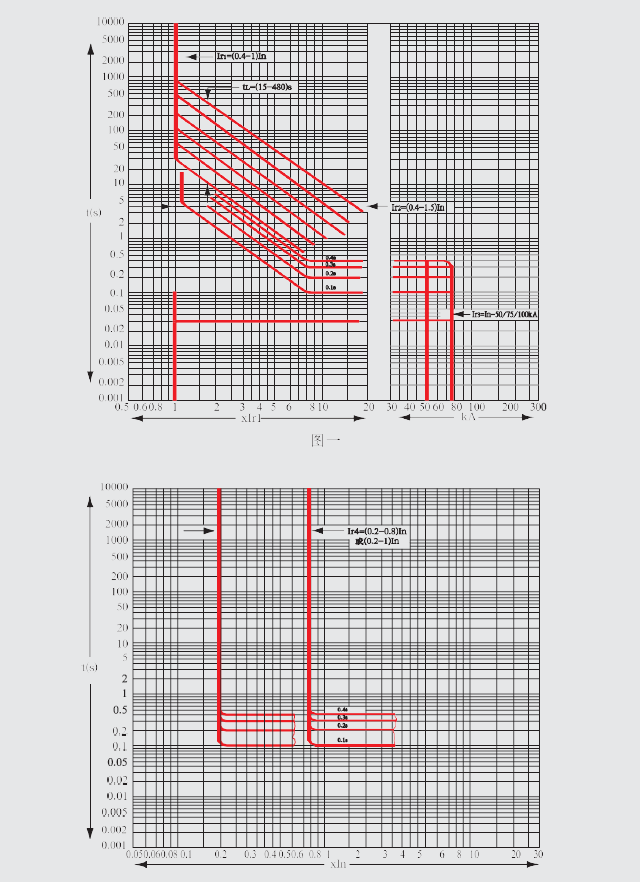

Graph
