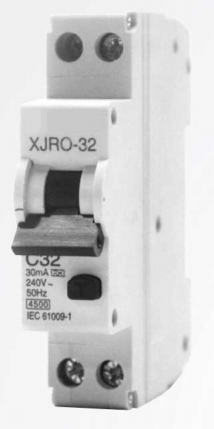

ESV compliance Economic 4.5kA miniature RCBO dual connection up down both way for IN,OUT connection
ESV compliance Economic 4.5kA miniature RCBO dual connection up down both way for IN,OUT connection
| Categories | Superior 10kA 16 Series Circuit Breaker |
|---|---|
| Model | XJRO-32 |
| esidual curet chaensics | AC,A |
| Pole No | 1P+N |
| Tripping curve | B,C,D |
| Rated shot-ircuit breaking capacity | 4.5kA |
| Rated current (A) | 6, 10, 16, 20, 25, 32 |
| Rated voltage | 240V |
| Rated frequency | 50Hz |
| Rated residual operating current(A) | 0.03 |
| Tripping duration | instantaneous≤0.1s |
| Electro-mechanical endurance | 4000 cycles |
| Update Time | September 27,2023 |
Detail Information
Construcion and Feature

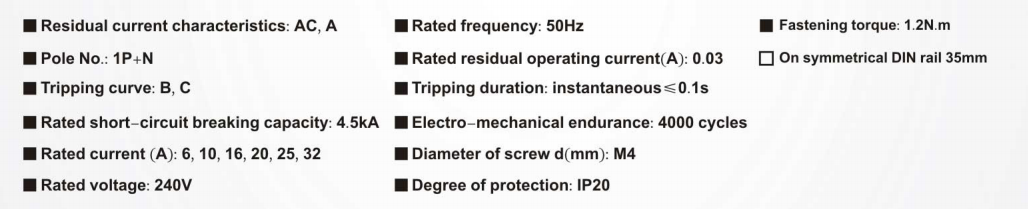

Technical Data

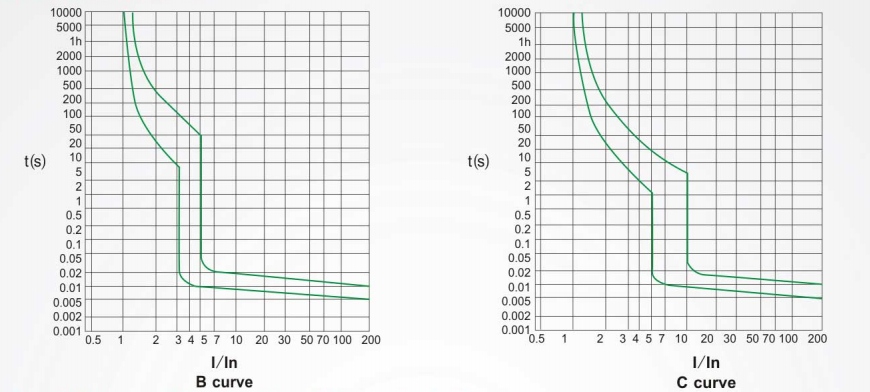

Characteristic Curve

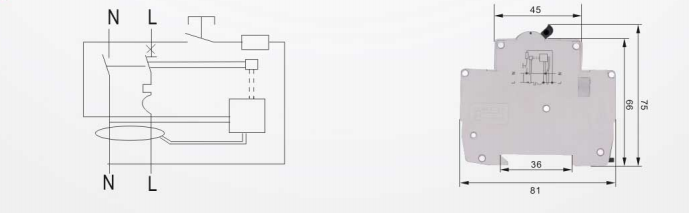

Wiring Diagram
