B3 series Electromagnetic Mini Circuit Breaker,Hydraulic Electromagnetic Circuit Breaker
B3 series Electromagnetic Mini Circuit Breaker,Hydraulic Electromagnetic Circuit Breaker
| Categories | Hydraulic electromagnetic circuit breaker |
|---|---|
| Model | B3 |
| Maximum voltage | 480/277V AC 50/6Hz,80V DC |
| Current Ratings | 1A to 100A |
| Insulation resistance | Minimum of 100 Megohms at 50V DC |
| Operating Temperature | -40℃ to +85℃ |
| Number of poles | 1,2,3 |
| Weight | Approximately 110grams/pole |
| Agency Certifications | EN60934,UL1077,GB17701,and UL489A |

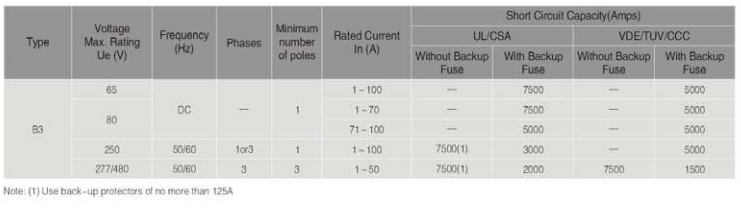

| Electrical | see table below |
| SERIES | B3 SERIES |
| Update Time | Apr 27,2024 |
Detail Information

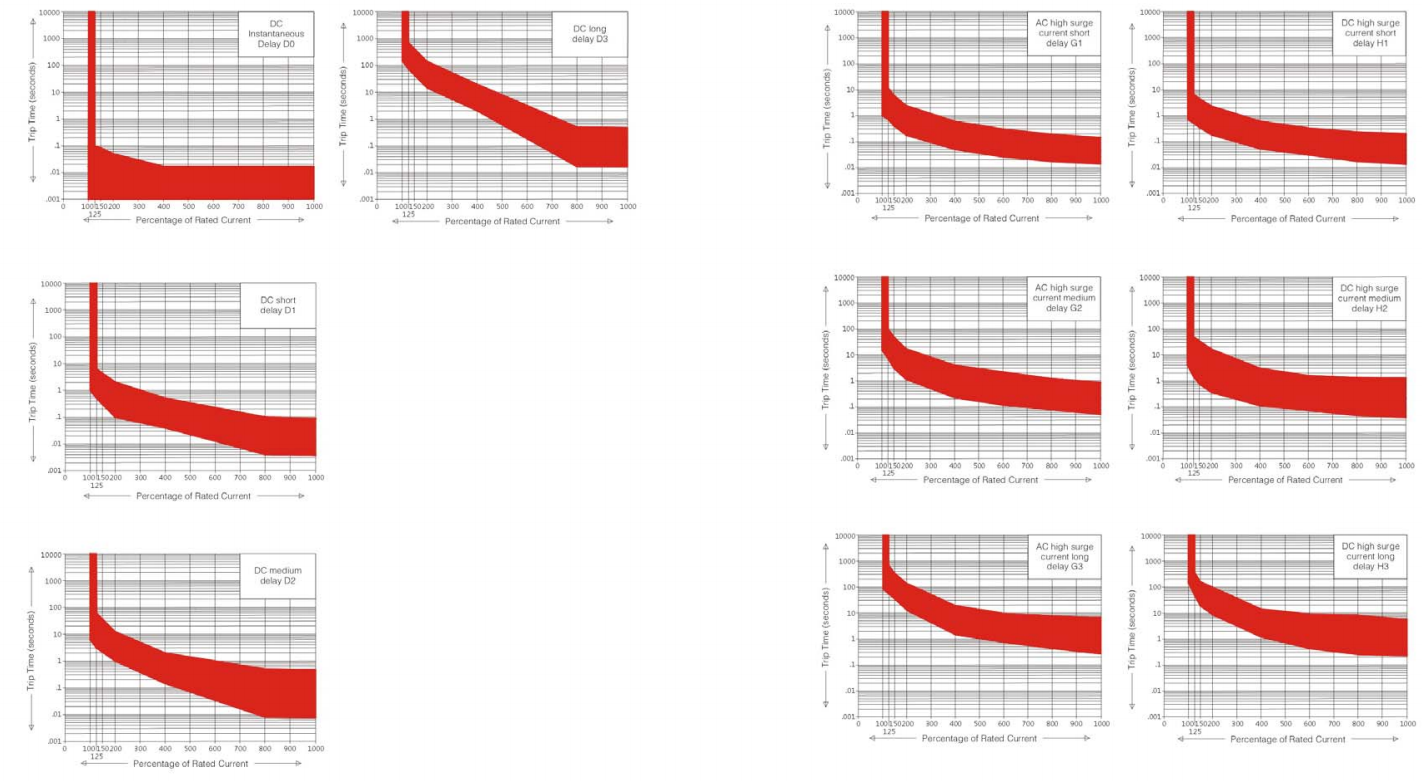

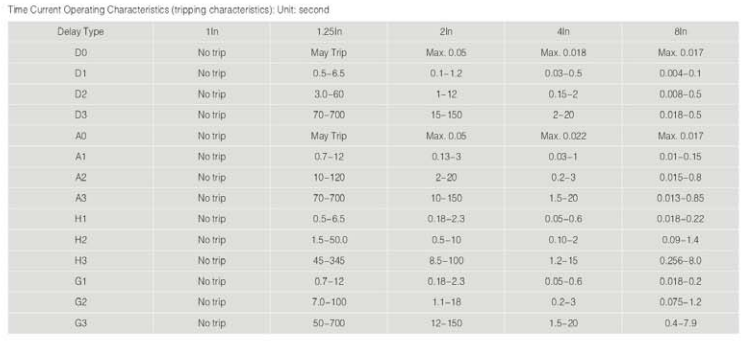

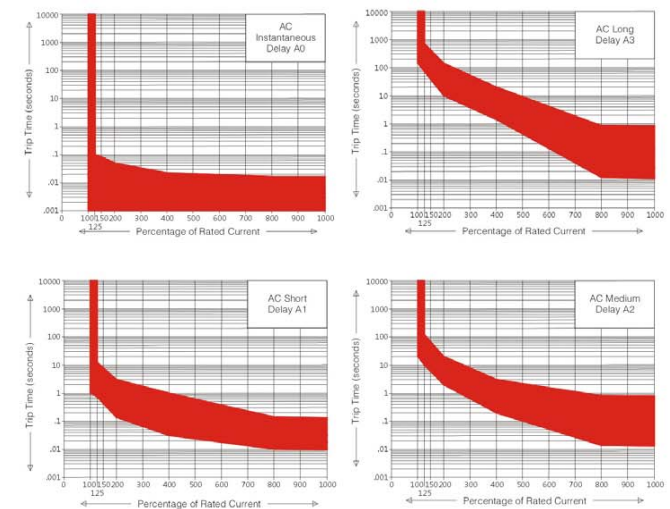

B3 Time Delay Curve

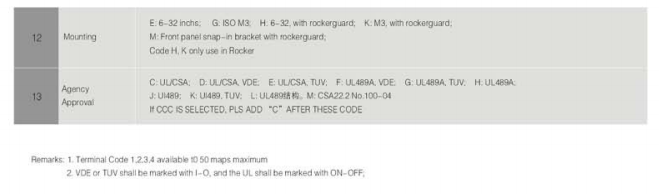

Specification of B3 series circuit breaker and code implication(for selection)

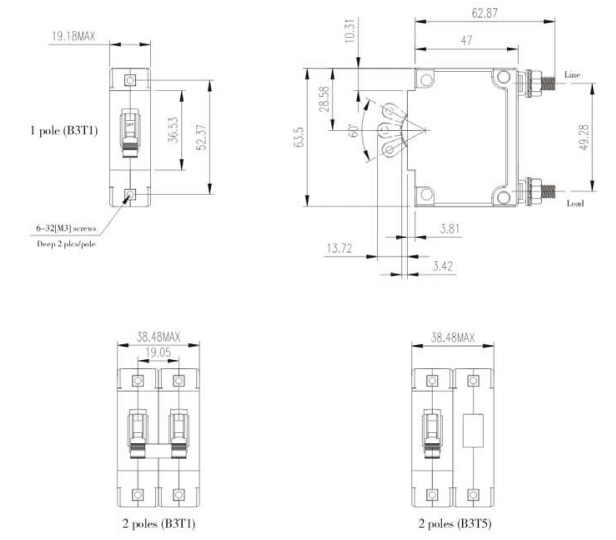

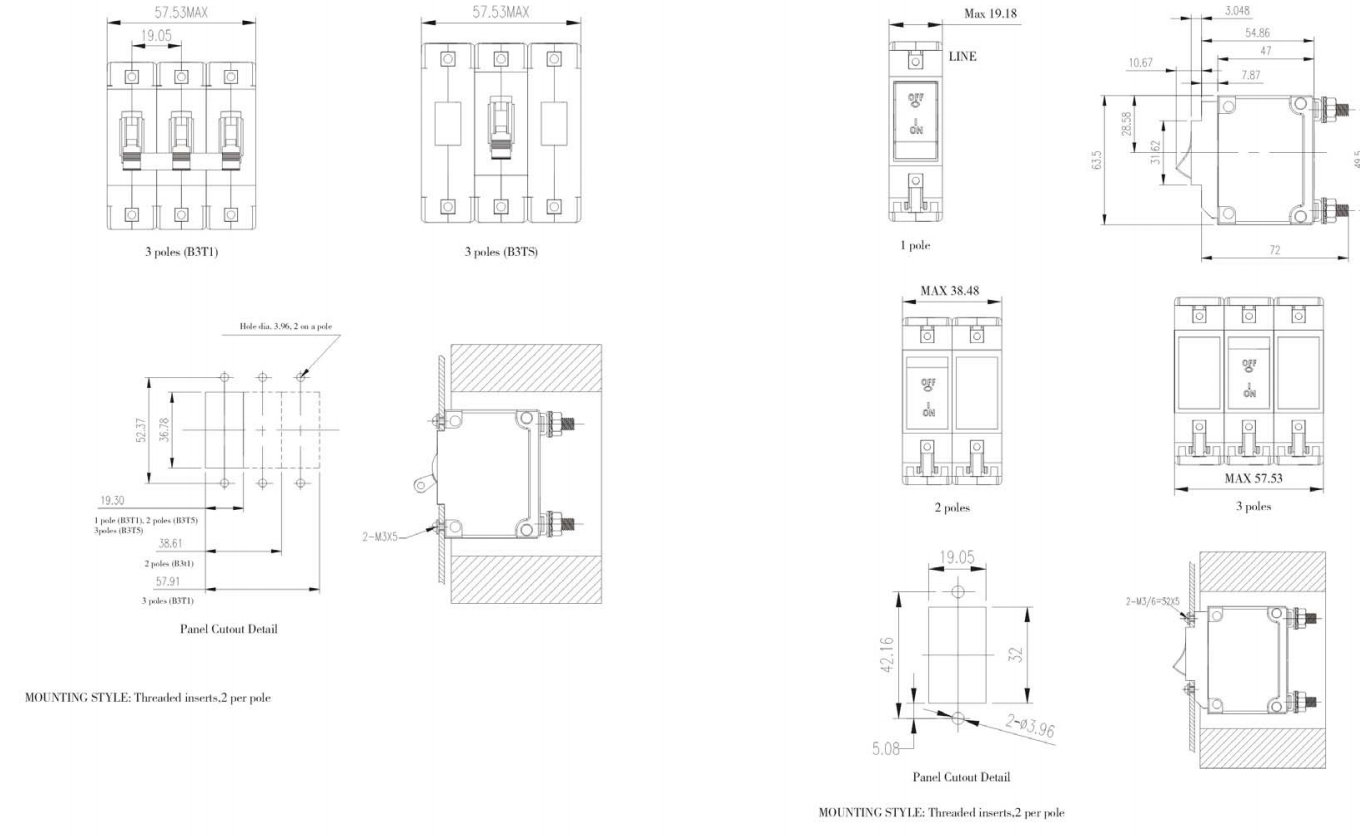

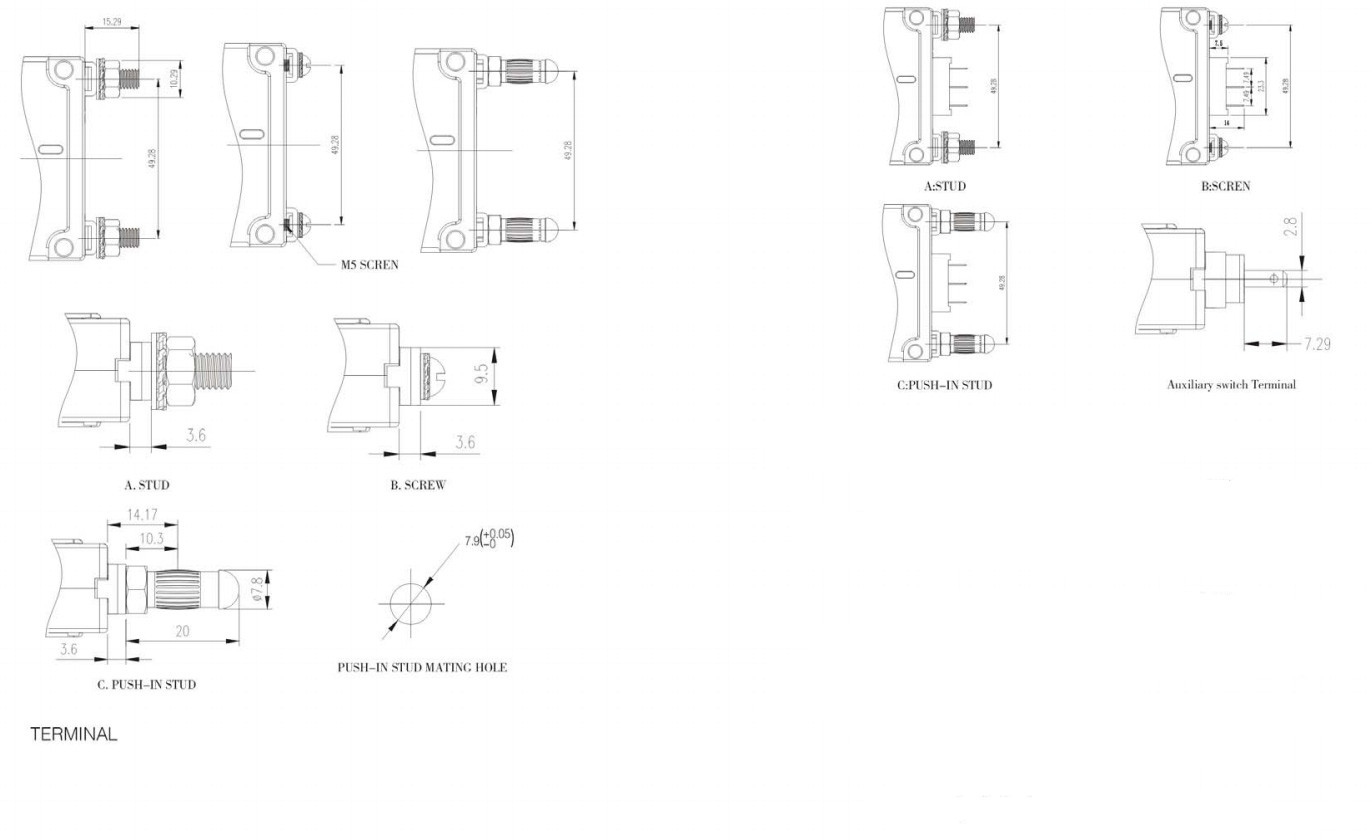

B3 Series Circuit Breaker - Form&Fit Drawings
