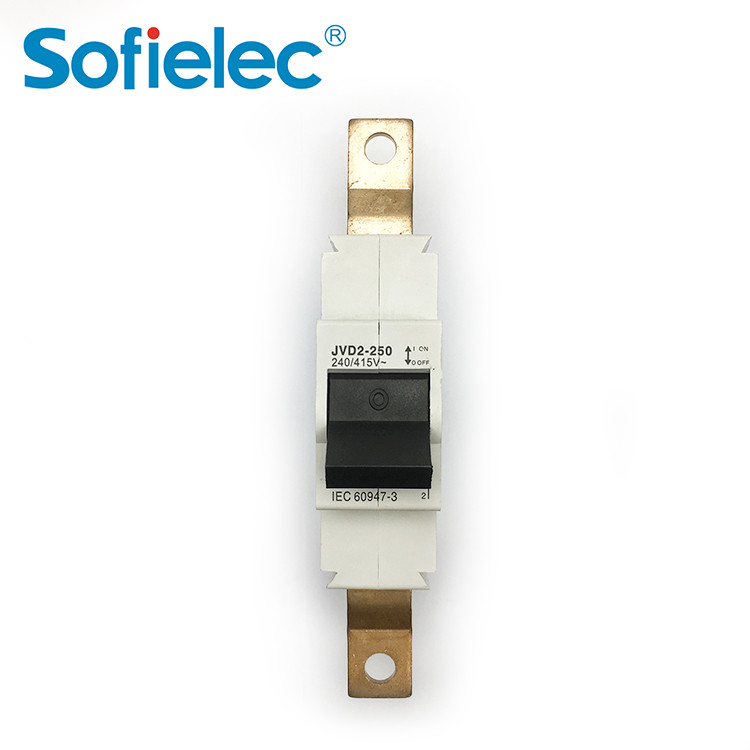

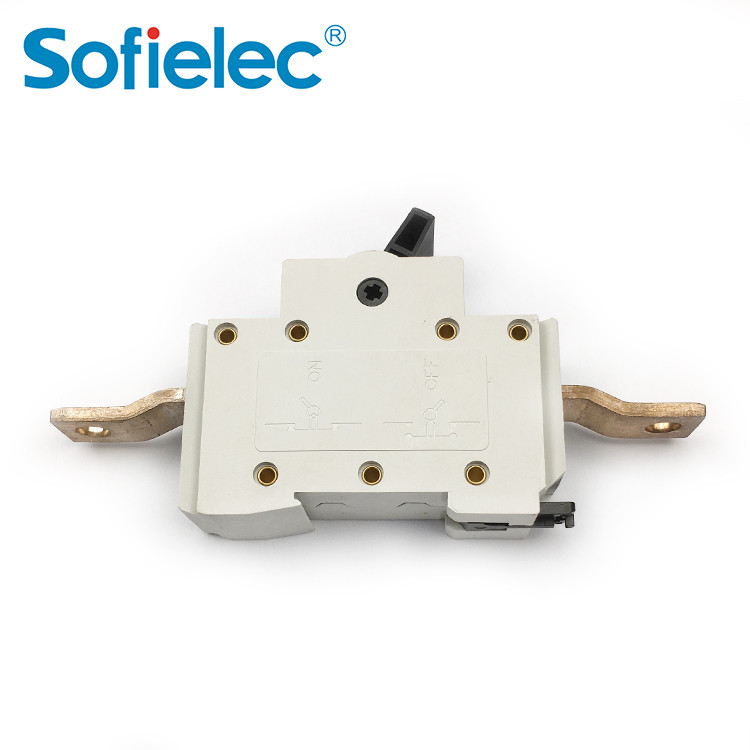

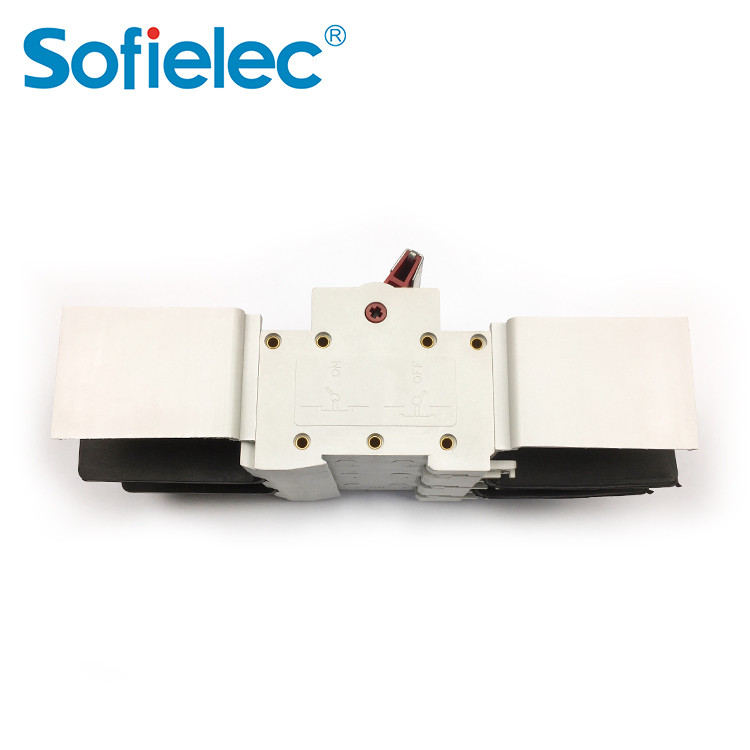

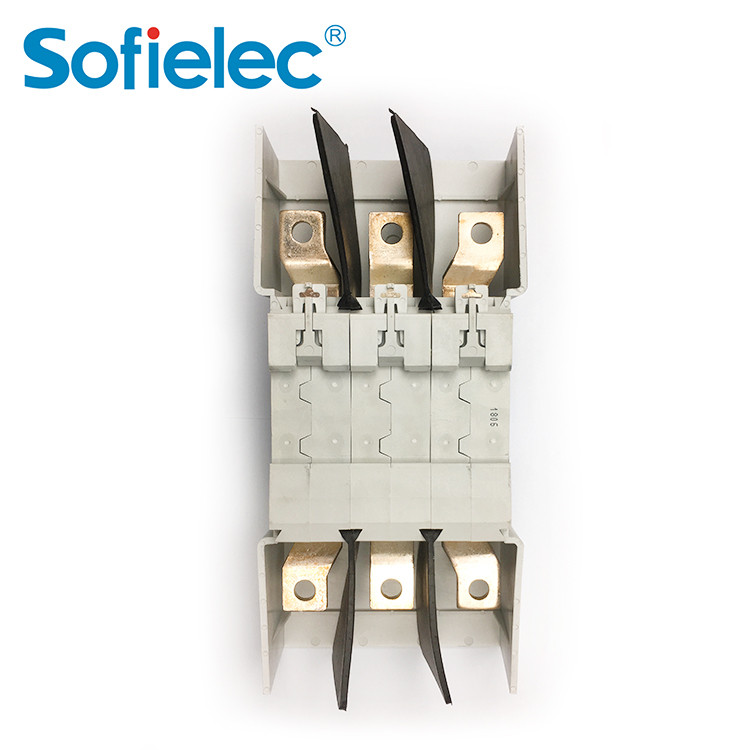

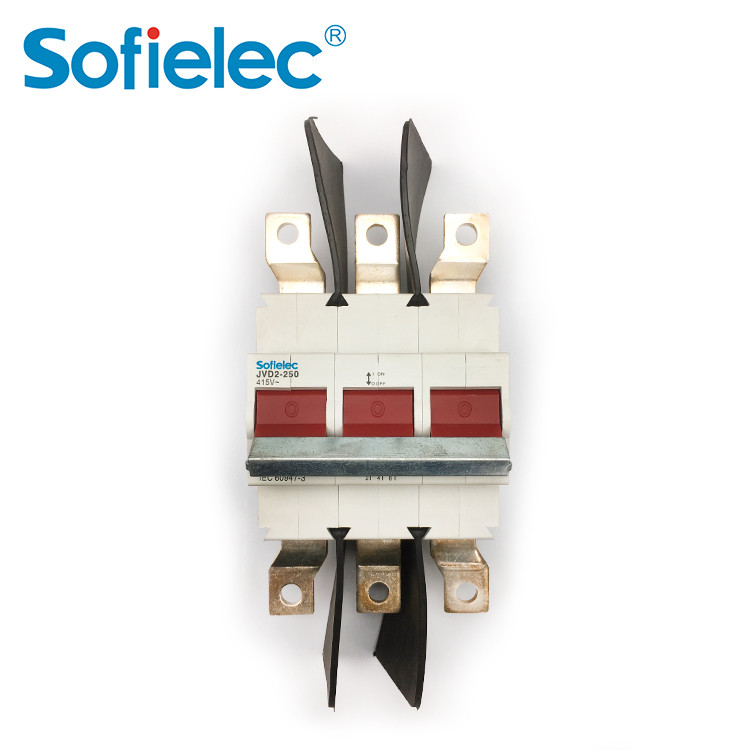

Sofielec 3P 250A main switch isolator JVD2-250 with terminal shields & phase separator, AU hot selling

Construction and Feature

Capable of switch electric circuit with load

Provide function of isolation

Used as main switch for household and similar installation

Technical Data

Pole No.: 1, 2, 3, 4

Rated current(A): 125, 160, 250

Rated voltage: AC 230/400V

Rated frequency: 50/60Hz

Rated short-circuit making capacity: 3kA

Rated withstand current: 3kA within 1sec

Electro-mechanical endurance: 10000 cycles

Connection capacity: Rigid conductor 50mm 2 and up

Connection terminal: Extensional busbar

Installation:

On symmetrical din rail 35.5mm

Panel mounting

Terminal Connection Height: H=22mm

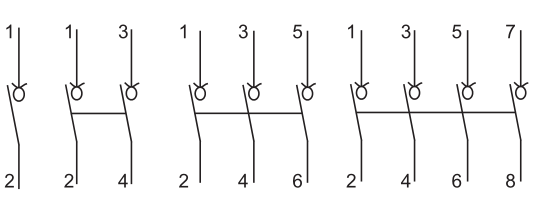

Wiring Diagram

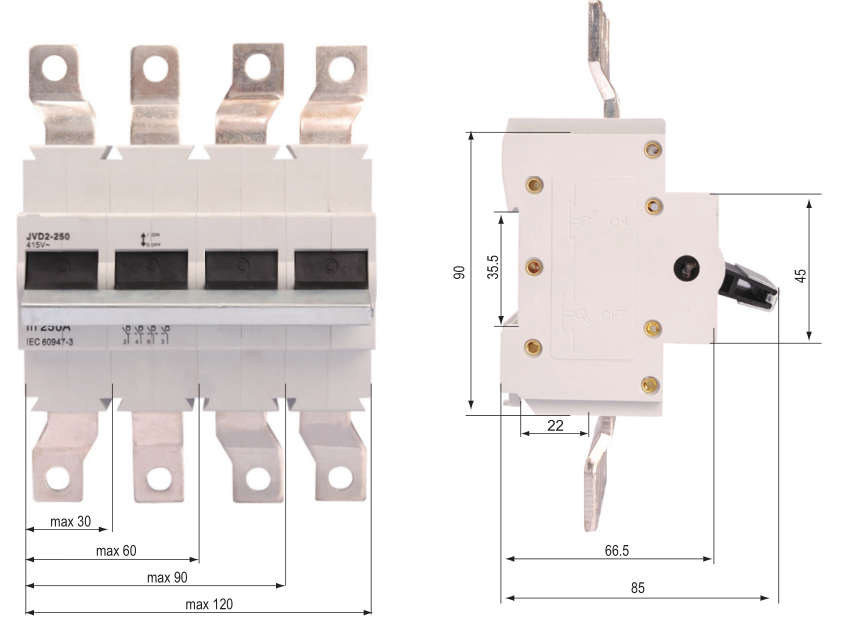

Overall & Installation Dimensions
