ATRP19G 3Phase Voltage Control Relay
| Categories | Time Relay |
|---|---|
| Model | ATRP19G |
| Maximum Switching Voltage | 250 V DC/250V AC |
| [us] Rated Supply Voltage | 300.... 480 V AC 3 phases |
| Supply Voltage Limits | 270...528V AC |
| Power Consumption In Va | <=22VA 400V AC 50Hz |
| Control Circuit Frequency | 50...60 Hz +/- 10% |
| Output Contacts | 1 C/O,2C/O |
| Nominal Output Current | 8A 250VAC |
| Delay At Power Up | <= 650 ms |
| Voltage Range | 270...528 V AC |
| Response Time | 1000ms |
| Update Time | Apr 26,2024 |
Detail Information

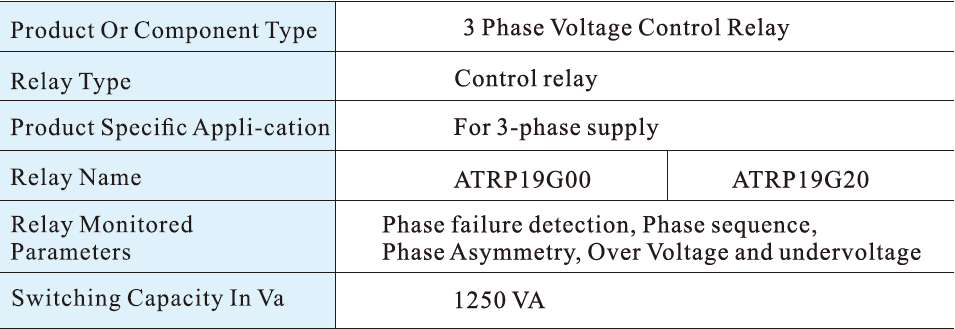

Main

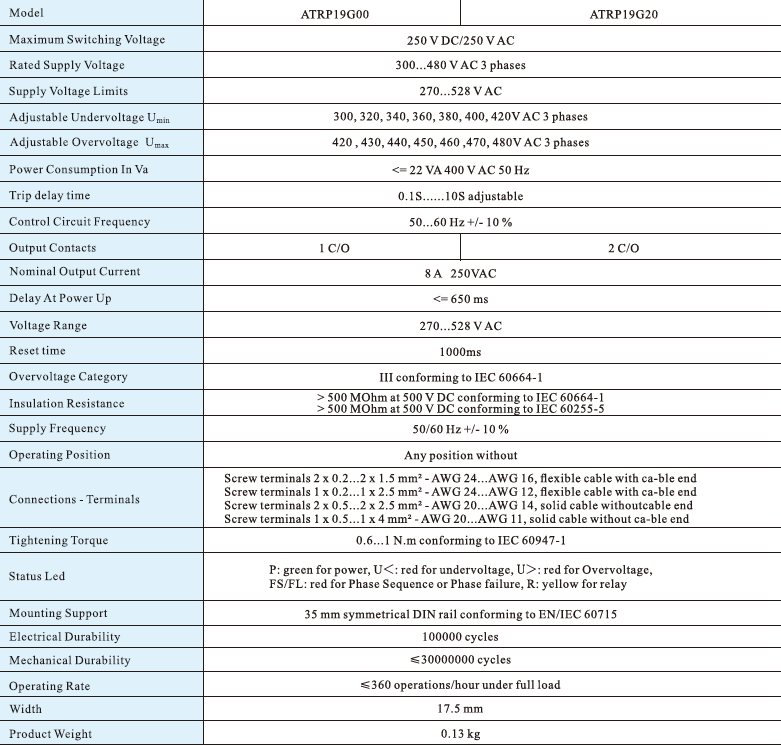

Complementary

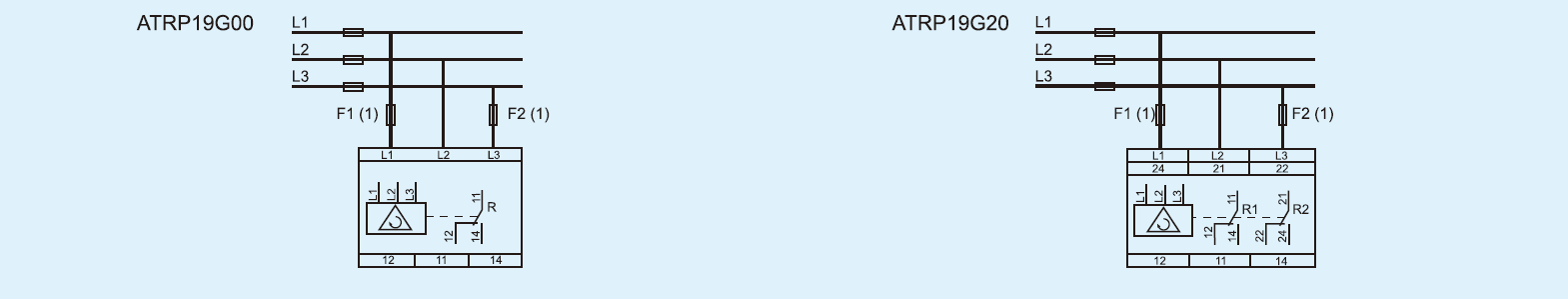

Connection Diagarams

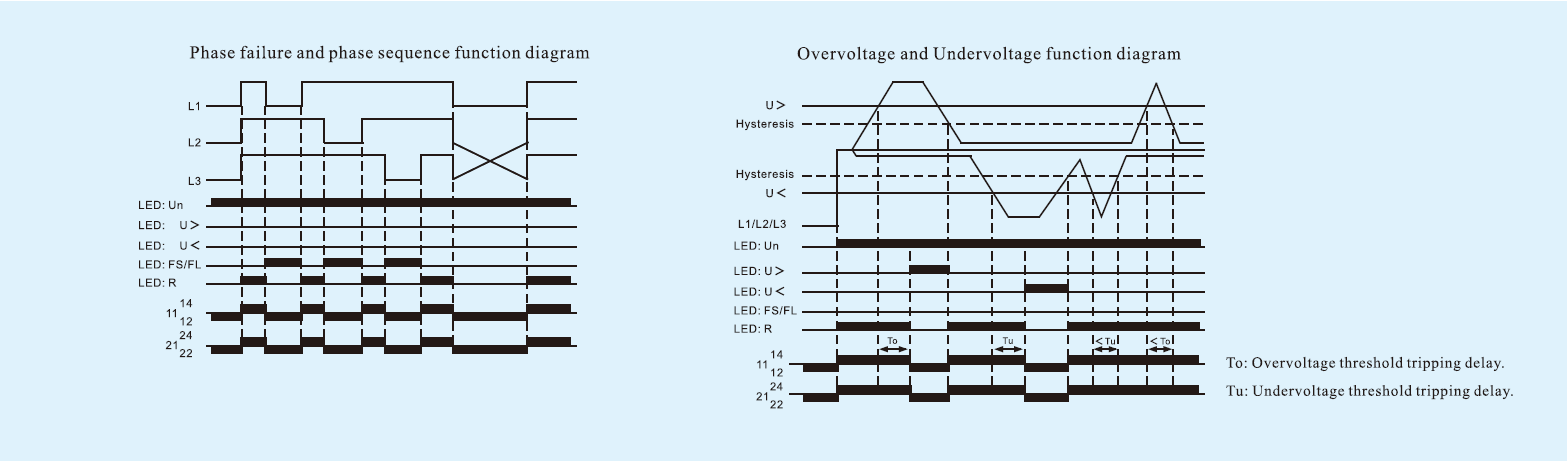

Functions Diagrams

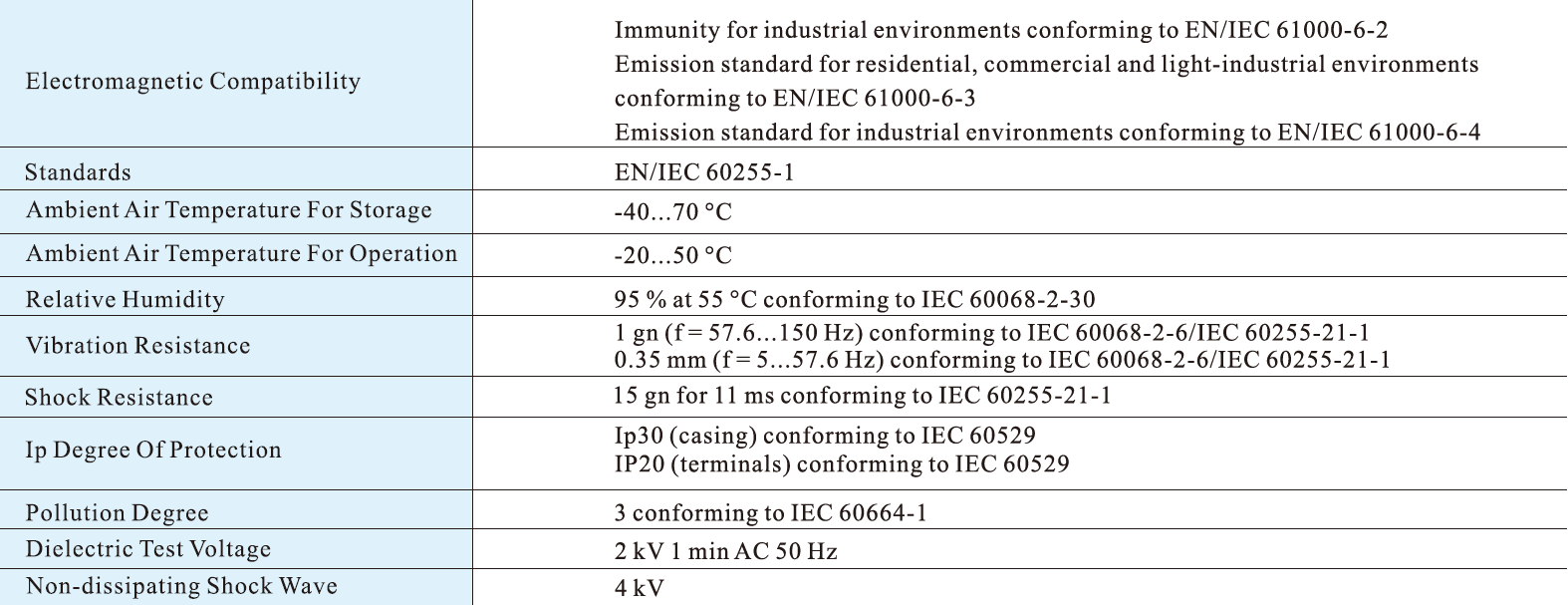

Environment

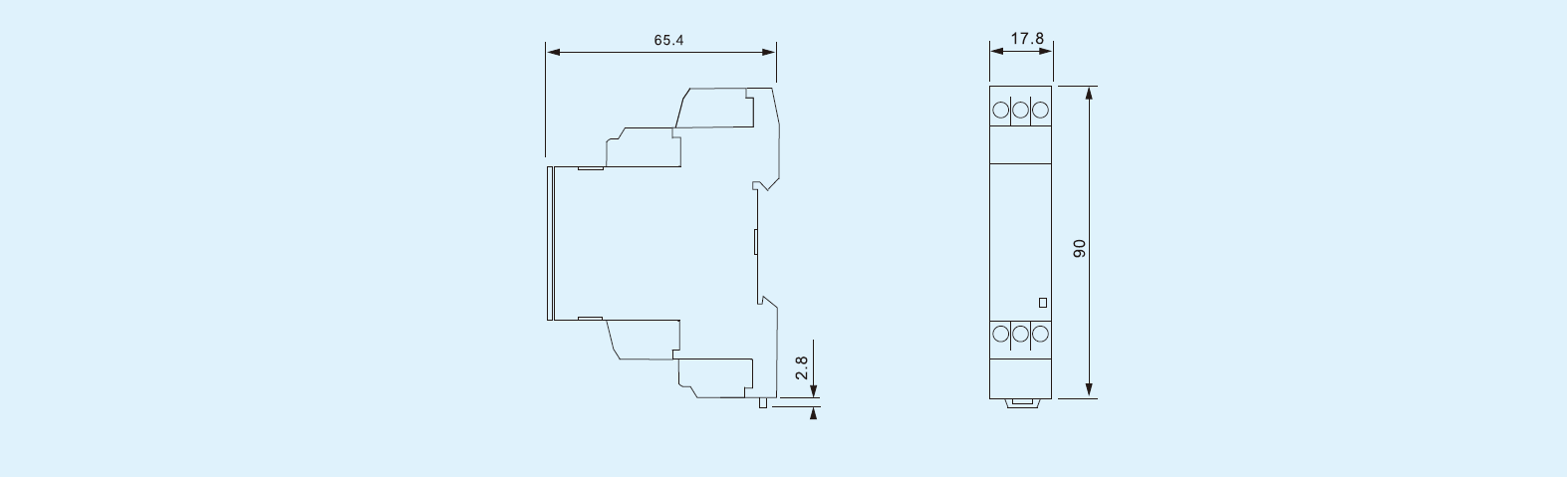

Dimension
