ZHRT1-ST Sofielec time relay

Categories	Time Relay
Model	ZHRT1-ST
Rated control supply voltage	AC110V. AC220V. AC380V 56/60Hz
Rated power consumption	AC:≤1.5VA DC:≤1W
Delay range	0.1s~10min
Setting accuracy	≤5%
Repeat accuracy	≤0.2%
Repeat power- on interval	≥200ms
Altitude	≤2000m
Contact configuration capacity(A)	5A
IP Class	IP 20
Use category	AC-15
Update Time	Apr 26,2024

Contact Now

Favorites

Detail Information

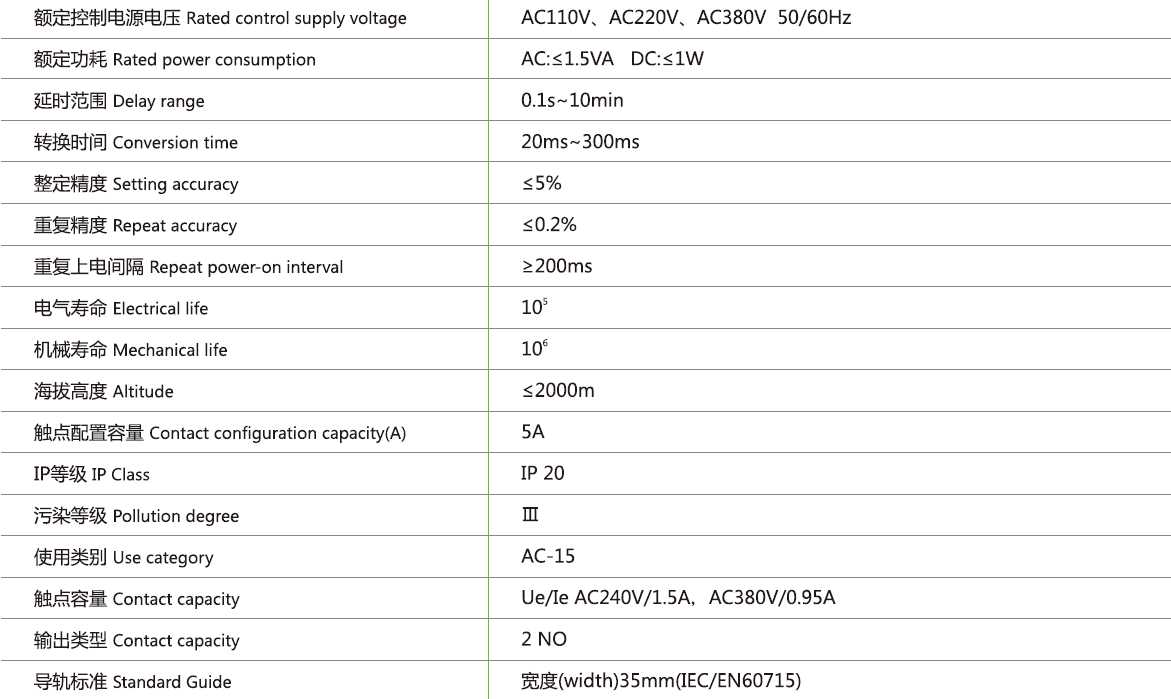

Function

Applications

Used in air conditioning units, elevator machine room, pumps, fans and other motor control applications, as protection of over-voltage, under voltage, phase failure, phase sequence and phase unbalance. When the power supply is abnormal, turn off power supply to protect the equipment.

Features

Built-in microprocessors,knob setting,start time and conversion time adjustable.LED indicator shows working status. Conversion control of stardelta,auto buck starting. DIN-rail mounting.

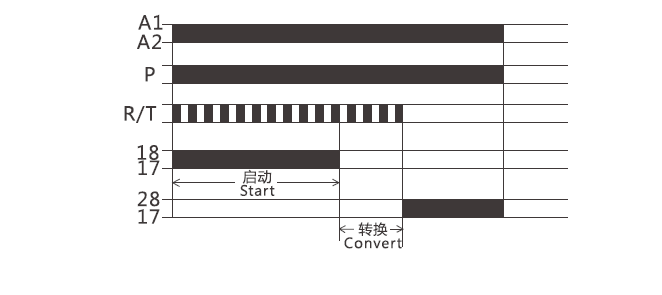

Function Diagram

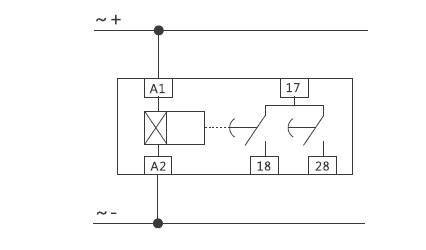

Wiring Diagram

Dimensions
