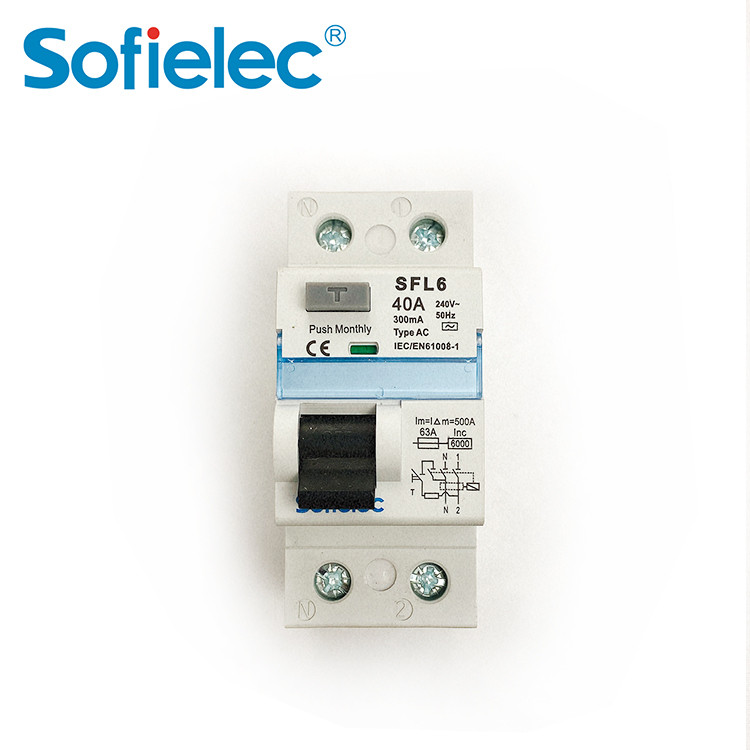

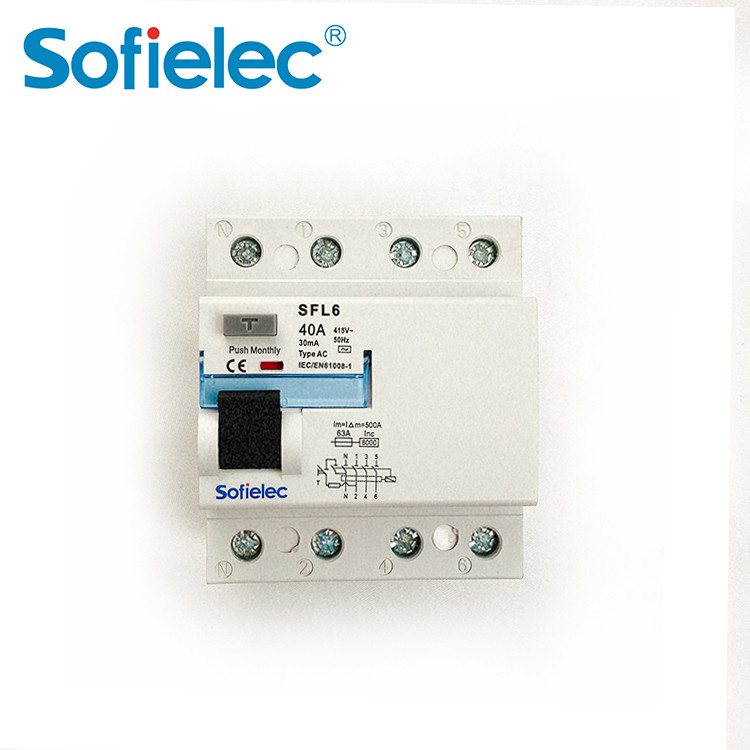

80A RCCB Disjoncteurs de 40A with CE CB NF approval
80A RCCB Disjoncteurs de 40A with CE CB NF approval
| Categories | Superior 10kA 16 Series Circuit Breaker |
|---|---|
| Model | SFL6 |
| Pole No | 2, 4 |
| Rated voltage | AC 230/400V |
| Rated current (A) | 1,2,3,4,6, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
| Rated frequency | 50/60Hz |
| Certificate | CB CE NF ROHS |
| Standard | IEC60008-1 |
| Mechanical Life | 2000 Times |
| Update Time | Apr 27,2024 |
Detail Information

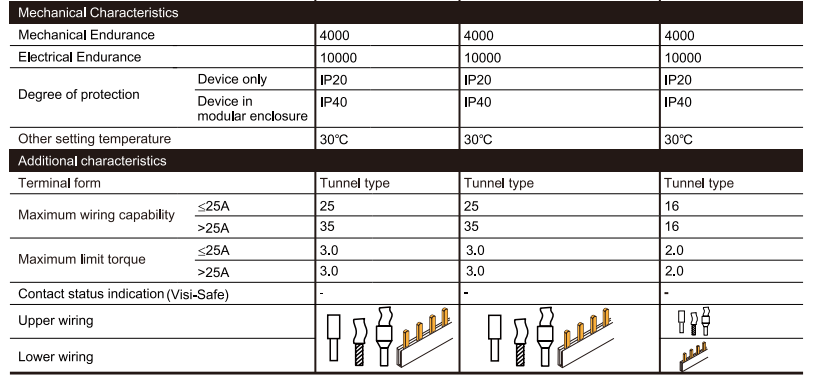

Technical Data
|
l Pole No.:2,4 |
|
l Rated voltage: AC 230/400V |
|
l Rated current (A):1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 |
|
l Tripping curve: B, C, D |
|
l High short-circuit breaking capacity (Icn): 6kA |
|
l Rated service short-circuit breaking capacity(Ics): 7.5kA |
|
l Rated frequency: 50/60Hz |
l Energy limiting class: 3 |
l Rated impulse withstand voltage: 4kV |
l Electro-mechanical endurance: 10000 |
|
l Contact position indication |
|
l Connection terminal:Screw terminal |
|
l Connection capacity: Rigid conductor up to 25mm ² |
|
l Terminal Connection Height: 19mm |
|
l Fastening torque: 2.0Nm |
|
l Installation: |
